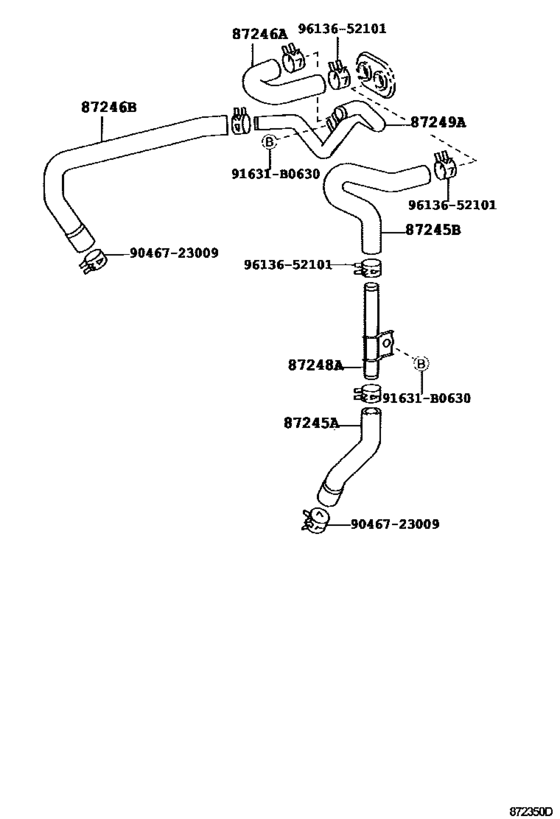

Heating & Air Conditioning - Water Piping ([01.1998 - ] FRONT (9801- )HDJ100,HZJ105) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-6A020 Hose, Heater Water, Inlet A[01.1998 - 08.2002] HDJ100,HZJ105 |
87245-6A020 |
US $14.33 |
||
|
87245B
|
87245B
87245-6A080 Hose, Heater Water, Inlet BHEATER WATER, INLET B [01.1998 - 07.1999] HDJ100,HZJ105 |
87245-6A080 |
US $24.11 |
||
|
87245B
|
87245B
87245-6A300 Hose, Heater Water, Inlet B[01.1998 - 08.1998] HDJ100,HZJ105..ARL,GEN W(REAR HEATER) |
87245-6A300 |
from US $17.98 |
||
|
87246A
|
87246A
87245-6A270 Hose, Heater Water, Outlet A[01.1998 - 07.1999] HDJ100,HZJ105 |
87245-6A270 |
from US $17.56 |
||
|
87246B
|
87246B
87245-6A230
Hose, Heater Water, Outlet B
[01.1998 - 08.2001] HDJ100,HZJ105 |
87245-6A230 |
— | ||
| replacement | |||||
|
87246B
|
87246B
87245-6A231 Hose, Heater Water, Outlet B[01.1998 - 08.2001] HDJ100,HZJ105 |
87245-6A231 |
from US $20.97 |
||
|
87246B
|
87246B
87245-6A231 Hose, Heater Water, Outlet B[08.2001 - 08.2002] HDJ100,HZJ105 |
87245-6A231 |
from US $20.97 |
||
|
87248A
|
87248A
87208-60540 Pipe, Heater Water Inlet, A[01.1998 - 08.2002] HDJ100,HZJ105 |
87208-60540 |
US $17.12 |
||
|
87249A
|
87249A
87208-60580
Pipe, Heater Water Outlet, A
[01.1998 - 07.1999] HDJ100,HZJ105 |
87208-60580 |
— | ||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
9046723009
|
9046723009
90467-23009 Clip Or Clamp(For Ventilation Hose) |
90467-23009 |
from US $2.42 |
||
|
9613652101
|
9613652101
96136-52101 Clip(For Ventilation Hose) |
96136-52101 |
from US $2.37 |
||
