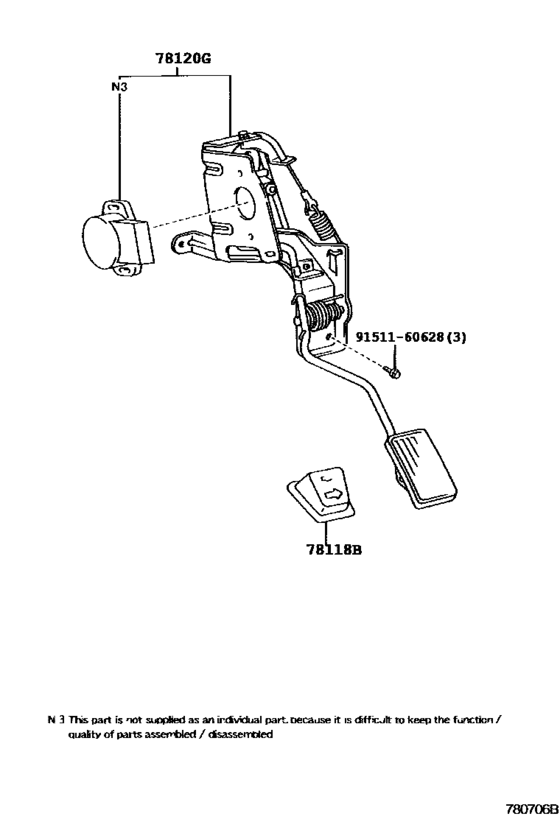

Accelerator Link ([08.2002 - ] (0208- )HDJ100..LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78118B
|
78118B
78118-60020
Stopper, Accelerator Pedal
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
78118-60020 |
— | ||
|
78120G
|
78120G
78010-60020
Rod Assy, Accelerator Pedal
[08.2002 - 08.2003] HDJ100..LHD..(5F,5FC) |
78010-60020 |
— | ||
|
78120G
|
78120G
78010-60021 Rod Assy, Accelerator PedalRod assy [08.2003 - 05.2005] HDJ100..LHD |
78010-60021 |
from US $519.48 |
||
|
9151160628
|
9151160628
91511-60628 BOLT FLANGE |
91511-60628 |
US $0.87 |
