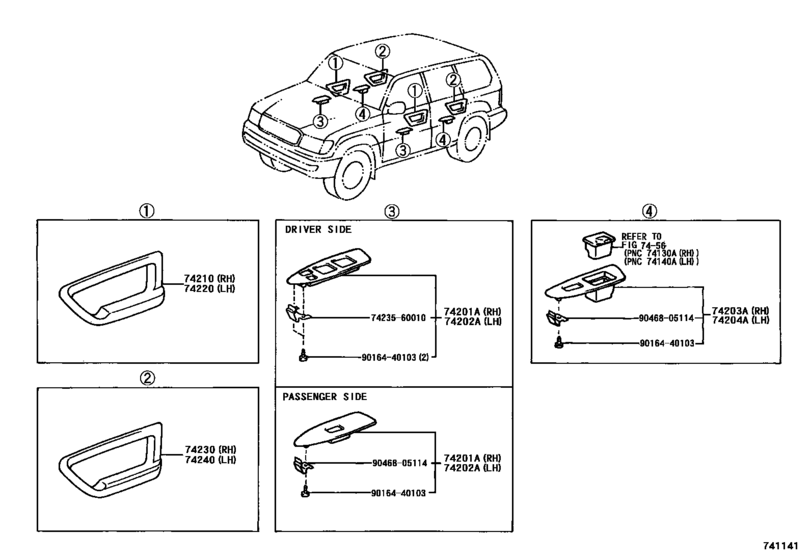

Armrest & Visor ([08.2002 - ] ARMREST (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74201A
|
74201A
74231-60221-A1 Panel Sub-Assy, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX IVORY,TRIM0# |
74231-60221-A1 |
US $32.67 |
||
|
74201A
|
74201A
74231-60221-B1 Panel Sub-Assy, Front Armrest Base, Upper Rh (Gray)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC) STONE,TRIM1# |
74231-60221-B1 |
US $32.40 |
||
|
74201A
|
74201A
74231-60251
Panel Sub-Assy, Front Armrest Base, Upper Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX WOOD GRAIN |
74231-60251 |
— | ||
|
74202A
|
74202A
74232-60311 Panel Sub-Assy, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX WOOD GRAIN |
74232-60311 |
US $46 |
||
|
74202A
|
74202A
74232-60321-A1
Panel Sub-Assy, Front Armrest Base, Upper Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX IVORY,TRIM0# |
74232-60321-A1 |
— | ||
|
74202A
|
74202A
74232-60321-B1 Panel Sub-Assy, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC) STONE,TRIM1# |
74232-60321-B1 |
from US $24.11 |
||
|
74203A
|
74203A
74271-60061-A1
Panel Sub-Assy, Rear Armrest Base, Upper Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX IVORY,TRIM0# |
74271-60061-A1 |
— | ||
| replacement | |||||
|
74203A
|
74203A
74271-60061-B1 Panel Sub-Assy, Rear Armrest Base, Upper Rh (Gray)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX IVORY,TRIM0# |
74271-60061-B1 |
from US $52.07 |
||
|
74203A
|
74203A
74271-60061-B1 Panel Sub-Assy, Rear Armrest Base, Upper Rh (Gray)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC) STONE,TRIM1# |
74271-60061-B1 |
from US $52.07 |
||
|
74203A
|
74203A
74271-60071
Panel Sub-Assy, Rear Armrest Base, Upper Rh
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX WOOD GRAIN |
74271-60071 |
— | ||
|
74204A
|
74204A
74272-60061-A1
Panel Sub-Assy, Rear Armrest Base, Upper Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX IVORY,TRIM0# |
74272-60061-A1 |
— | ||
| replacement | |||||
|
74204A
|
74204A
74272-60061-B1 Panel Sub-Assy, Rear Armrest Base, Upper Lh (Gray)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX IVORY,TRIM0# |
74272-60061-B1 |
US $52.07 |
||
|
74204A
|
74204A
74272-60061-B1 Panel Sub-Assy, Rear Armrest Base, Upper Lh (Gray)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC) STONE,TRIM1# |
74272-60061-B1 |
US $52.07 |
||
|
74204A
|
74204A
74272-60071
Panel Sub-Assy, Rear Armrest Base, Upper Lh
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX WOOD GRAIN |
74272-60071 |
— | ||
|
74210
|
74210
74210-60090-B3 Armrest Assy, Front, Rh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC DK.GRAY,TRIM1# |
74210-60090-B3 |
US $174.72 |
||
|
74210
|
74210
74210-60090-E2
Armrest Assy, Front, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX SANDAL WOOD,TRIM0# |
74210-60090-E2 |
— | ||
|
74220
|
74220
74220-60090-B3
Armrest Assy, Front, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC DK.GRAY,TRIM1# |
74220-60090-B3 |
— | ||
|
74220
|
74220
74220-60090-E2 Armrest Assy, Front, Lh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX SANDAL WOOD,TRIM0# |
74220-60090-E2 |
US $174.72 |
||
|
74230
|
74230
74250-60010-B3 Armrest Assy, Rear, Rh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC DK.GRAY,TRIM1# |
74250-60010-B3 |
US $186.37 |
||
|
74230
|
74230
74250-60010-E2
Armrest Assy, Rear, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX SANDAL WOOD,TRIM0# |
74250-60010-E2 |
— | ||
|
74240
|
74240
74260-60010-B3 Armrest Assy, Rear, Lh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC DK.GRAY,TRIM1# |
74260-60010-B3 |
US $186.37 |
||
|
74240
|
74240
74260-60010-E2
Armrest Assy, Rear, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX SANDAL WOOD,TRIM0# |
74260-60010-E2 |
— | ||
|
7423560010
|
7423560010
74235-60010 Panel, Rear Armrest Base, Upper |
74235-60010 |
US $1.41 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9046805114
|
9046805114
90468-05114 CLIP |
90468-05114 |
from US $1.33 |
||
