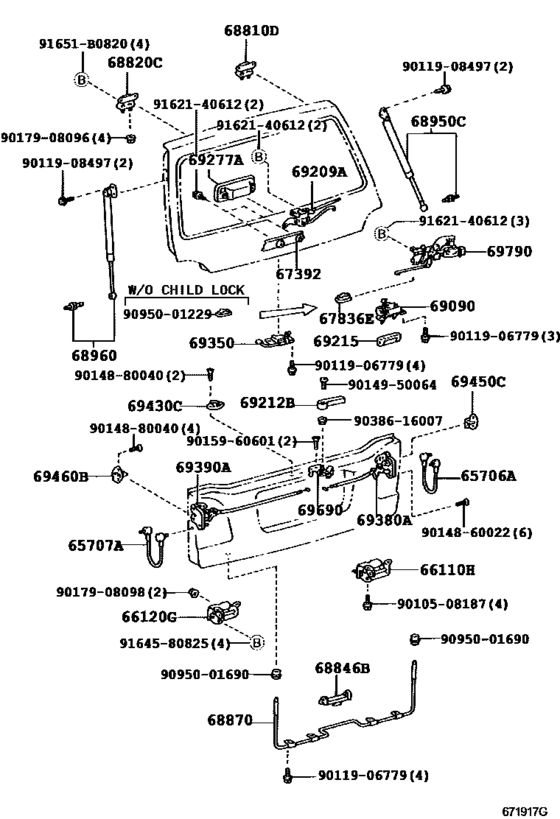

Back Door Lock & Hinge ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65706A
|
65706A
65706-60021 Tail Gate Stay Sub-Assy[08.2002 - 05.2005] HDJ100,UZJ100..VX |
65706-60021 |
from US $17.12 |
||
|
65707A
|
65707A
65706-60021 Tail Gate Stay Sub-Assy[08.2002 - 05.2005] HDJ100,UZJ100..VX |
65706-60021 |
from US $17.12 |
||
|
66110H
|
66110H
66110-60020 Hinge Assy, Tail Gate, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
66110-60020 |
from US $55.40 |
||
|
66120G
|
66120G
66120-60010 Hinge Assy, Tail Gate, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
66120-60010 |
US $59.78 |
||
|
67392
|
67392
67392-60010 Protector, Back Door Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67392-60010 |
US $14.56 |
||
|
67836E
|
67836E
67836-12040 Cover, Rear Door Lock Child Protection, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67836-12040 |
from US $3.76 |
||
|
68810D
|
68810D
68810-95J02 Hinge Assy, Back Door, Upper[08.2002 - 05.2005] HDJ100,UZJ100..VX |
68810-95J02 |
from US $24.78 |
||
|
68820C
|
68820C
68820-95J02 Hinge Assy, Back Door, Lower[08.2002 - 05.2005] HDJ100,UZJ100..VX |
68820-95J02 |
from US $24.47 |
||
|
68846B
|
68846B
68846-60010 Guide, Back Door Torsion Bar[08.2002 - 05.2005] HDJ100,UZJ100..VX |
68846-60010 |
from US $9.96 |
||
|
68870
|
68870
68870-60010 Bar Assy, Back Door Lower Torsion[08.2002 - 05.2005] HDJ100,UZJ100..VX |
68870-60010 |
US $60.28 |
||
|
68950C
|
68950C
68950-69056 Stay Assy, Back Door, Rh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
68950-69056 |
US $126.67 |
||
| replacement | |||||
|
68950C
|
68950C
68950-69057 Stay Assy, Back Door, Rh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
68950-69057 |
from US $118.47 |
||
|
68950C
|
68950C
68950-69057 Stay Assy, Back Door, Rh[02.2007 -] HDJ100,UZJ100 |
68950-69057 |
from US $118.47 |
||
|
68960
|
68960
68960-69016 Stay Assy, Back Door, Lh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
68960-69016 |
US $122.30 |
||
| replacement | |||||
|
68960
|
68960
68960-69017 Stay Assy, Back Door, Lh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
68960-69017 |
from US $116.24 |
||
|
68960
|
68960
68960-69017 Stay Assy, Back Door, Lh[02.2007 -] HDJ100,UZJ100 |
68960-69017 |
from US $116.24 |
||
|
69090
|
69090
69090-60020 Handle Assy, Back Door, Outside[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69090-60020 |
from US $84.19 |
||
|
69209A
|
69209A
69209-60040-A1
Handle Sub-Assy, Back Door, Inside
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69209-60040-A1 |
— | ||
|
69209A
|
69209A
69209-60040-B1 Handle Sub-Assy, Back Door, Inside[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
69209-60040-B1 |
US $41.06 |
||
|
69209A
|
69209A
69209-60050 Handle Sub-Assy, Back Door, InsideBACK DOOR, INSIDE [07.2003 - 05.2005] HDJ100..5FC |
69209-60050 |
US $41.06 |
||
|
69212B
|
69212B
69212-60030 Handle, Back Door Inside[08.2002 - 05.2005] HDJ100,UZJ100 |
69212-60030 |
from US $10.05 |
||
|
69212B
|
69212B
69212-60030-C0 Handle, Back Door Inside[05.2005 - 08.2007] HDJ100,UZJ100 BLACK |
69212-60030-C0 |
from US $11.44 |
||
|
69215
|
69215
69215-60020 Handle, Back Door Outside[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69215-60020 |
from US $6.33 |
||
|
69277A
|
69277A
69277-60030-A1 Bezel, Back Door Inside Handle[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69277-60030-A1 |
US $19.04 |
||
|
69277A
|
69277A
69277-60030-B1 Bezel, Back Door Inside Handle[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
69277-60030-B1 |
US $20.62 |
||
|
69277A
|
69277A
69277-60050-A0 Bezel, Back Door Inside HandleBACK DOOR INSIDE HANDLE [08.2002 - 05.2005] HDJ100,UZJ100..VX W(DOUBLE-LOCK),IVORY,TRIM0# |
69277-60050-A0 |
US $19.66 |
||
|
69277A
|
69277A
69277-60050-B0 Bezel, Back Door Inside HandleBACK DOOR INSIDE HANDLE [08.2002 - 05.2005] HDJ100,UZJ100..VX W(DOUBLE-LOCK),STONE,TRIM1# |
69277-60050-B0 |
US $19.66 |
||
|
69350
|
69350
69350-60120 Lock Assy, Back Door[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69350-60120 |
from US $115.77 |
||
|
69380A
|
69380A
69380-60040 Lock Assy, Tail Gate, Lower Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69380-60040 |
from US $83.52 |
||
|
69390A
|
69390A
69390-60040 Lock Assy, Tail Gate, Lower Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69390-60040 |
from US $83.52 |
||
|
69430C
|
69430C
69430-60030 Striker Assy, Back Door Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69430-60030 |
from US $19.15 |
||
|
69450C
|
69450C
69450-60021 Striker Assy, Back Door Lock, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69450-60021 |
from US $25.90 |
||
|
69460B
|
69460B
69460-60021 Striker Assy, Back Door Lock, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69460-60021 |
from US $25.95 |
||
|
69690
|
69690
69690-60030 Control Assy, Back Door Remote[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69690-60030 |
US $60.29 |
||
|
69790
|
69790
69790-60030 Control Assy, Back Door Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69790-60030 |
from US $186.22 |
||
|
69790
|
69790
69790-60070 Control Assy, Back Door Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX W(CHILD LOCK) |
69790-60070 |
from US $179.93 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9010508187
|
9010508187
90105-08187 BOLTWATER BASED |
90105-08187 |
from US $1.05 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.67 |
||
|
9011908497
|
9011908497
90119-08497 Bolt(For Drive Plate & Torque Converter Setting) |
90119-08497 |
US $2.87 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.48 |
||
|
9014880040
|
9014880040
90148-80040 Screw Hex Lobular |
90148-80040 |
from US $0.65 |
||
|
9014950064
|
9014950064
90149-50064 SCREW |
90149-50064 |
from US $0.68 |
||
|
9015960601
|
9015960601
90159-60601 New Genuine Part |
90159-60601 |
US $0.87 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.37 |
||
|
9017908098
|
9017908098
90179-08098 New Genuine Part |
90179-08098 |
US $1.61 |
||
|
9038616007
|
9038616007
90386-16007 BUSH |
90386-16007 |
from US $1.97 |
||
|
9095001229
|
9095001229
90950-01229 Plug, Hole(For Rear Door Panel) |
90950-01229 |
US $2.80 |
||
|
9095001690
|
9095001690
90950-01690 PLUGHOLE |
90950-01690 |
from US $2.30 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
|
9164580825
|
9164580825
91645-80825 BOLT WWASHER |
91645-80825 |
US $1.79 |
||
