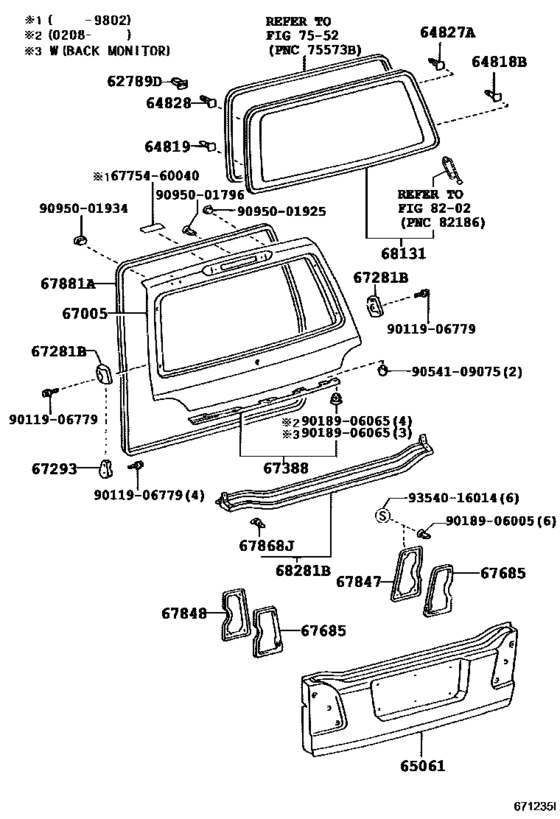

Back Door Panel & Glass ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62789D
|
62789D
62789-35010 Clip, Quarter Window Weatherstrip, No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
62789-35010 |
US $2.87 |
||
|
64818B
|
64818B
64818-60020 Spacer, Back Door Glass, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
64818-60020 |
US $4.12 |
||
|
64819
|
64819
64819-60020 Spacer, Back Window Glass, No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
64819-60020 |
US $2.89 |
||
|
64827A
|
64827A
64827-60020 Clip, Back Window Glass, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
64827-60020 |
US $2.33 |
||
|
64828
|
64828
64828-60020 Clip, Back Window Glass, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
64828-60020 |
US $1.65 |
||
|
65061
|
65061
65061-60181 Panel Sub-Assy, Tail GateTAIL GATE [08.2002 - 08.2003] HDJ100,UZJ100..VX |
65061-60181 |
US $768.77 |
||
| replacement | |||||
|
65061
|
65061
65061-60280 Panel Sub-Assy, Tail GateTAIL GATE [08.2002 - 08.2003] HDJ100,UZJ100..VX |
65061-60280 |
US $768.77 |
||
|
65061
|
65061
65061-60280 Panel Sub-Assy, Tail GateTAIL GATE [08.2003 - 05.2005] HDJ100,UZJ100..VX |
65061-60280 |
US $768.77 |
||
|
67005
|
67005
67005-60A00
Panel Sub-Assy, Back Door
[07.2003 - 05.2005] HDJ100..LHD..5FC W(NAVIGATION SYSTEM) |
67005-60A00 |
— | ||
| replacement | |||||
|
67005
|
67005
67005-60A60 Panel Sub-Assy, Back DoorBACK DOOR [07.2003 - 05.2005] HDJ100..LHD..5FC W(NAVIGATION SYSTEM) |
67005-60A60 |
US $2,034.93 |
||
|
67005
|
67005
67005-60A30
Panel Sub-Assy, Back Door
[07.2003 - 05.2005] HDJ100..5FC W(BACK MONITOR & NAVIGATION SYSTEM & PROTECTOR = PNC 67388) |
67005-60A30 |
— | ||
|
67005
|
67005
67005-6A870 Panel Sub-Assy, Back Door[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67005-6A870 |
US $1,105.10 |
||
| replacement | |||||
|
67005
|
67005
67005-6B110 Panel Sub-Assy, Back DoorBACK DOOR [08.2002 - 05.2005] HDJ100,UZJ100..VX |
67005-6B110 |
from US $1,102.89 |
||
|
67005
|
67005
67005-6B070 Panel Sub-Assy, Back DoorBACK DOOR [08.2002 - 08.2003] HDJ100,UZJ100..VX W(PROTECTOR = PNC 67388) |
67005-6B070 |
US $1,103.65 |
||
| replacements | |||||
|
67005
|
67005
67388-60030 Protector, Back Door EdgeBACK DOOR EDGE [08.2002 - 08.2003] HDJ100,UZJ100..VX W(PROTECTOR = PNC 67388) |
67388-60030 |
US $40.82 |
||
|
67005
|
67005
67005-60B40 Panel Sub-assy, Back Door[08.2002 - 08.2003] HDJ100,UZJ100..VX W(PROTECTOR = PNC 67388) |
67005-60B40 |
US $1,103.65 |
||
|
67005
|
67005
67005-6B071 Panel Sub-Assy, Back DoorBACK DOOR [08.2003 - 05.2005] HDJ100,UZJ100..VX W(PROTECTOR = PNC 67388) |
67005-6B071 |
US $1,105.10 |
||
|
67281B
|
67281B
67281-60030 Stopper, Back Door, Lower[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67281-60030 |
from US $20.06 |
||
|
67293
|
67293
67293-60020 Cushion, Back Door Lower Stopper[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67293-60020 |
from US $10.03 |
||
|
67388
|
67388
67388-60030 Protector, Back Door EdgeBACK DOOR EDGE [08.2002 - 08.2003] HDJ100,UZJ100..VX |
67388-60030 |
US $40.82 |
||
|
67388
|
67388
67388-60031
Protector, Back Door Edge
[08.2003 - 05.2005] HDJ100,UZJ100..VX |
67388-60031 |
— | ||
| replacement | |||||
|
67388
|
67388
67388-60030 Protector, Back Door EdgeBACK DOOR EDGE [08.2003 - 05.2005] HDJ100,UZJ100..VX |
67388-60030 |
US $40.82 |
||
|
67388
|
67388
67388-60050 Protector, Back Door EdgeBACK DOOR EDGE [07.2003 - 08.2003] HDJ100..5FC W(BACK MONITOR) |
67388-60050 |
US $42.52 |
||
| replacement | |||||
|
67388
|
67388
67388-60030 Protector, Back Door EdgeBACK DOOR EDGE [07.2003 - 08.2003] HDJ100..5FC W(BACK MONITOR) |
67388-60030 |
US $40.82 |
||
|
67685
|
67685
67685-60010 Packing, Back Door Service Hole, No.1[08.2002 - 10.2004] HDJ100,UZJ100..(5F,5FC)..VX |
67685-60010 |
US $4.54 |
||
|
67685
|
67685
67685-60020 Packing, Back Door Service Hole, No.1[11.2004 - 05.2005] HDJ100,UZJ100..VX |
67685-60020 |
US $5.77 |
||
|
67847
|
67847
67847-60050 Cover, Back Door Service Hole, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67847-60050 |
US $30.14 |
||
|
67848
|
67848
67848-60030 Cover, Back Door Service Hole, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67848-60030 |
US $30.14 |
||
|
67868J
|
67868J
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67867-12150 |
from US $1.79 |
||
|
67881A
|
67881A
67881-60110
Weatherstrip, Back Door
[08.2002 - 02.2004] HDJ100,UZJ100..(5F,5FC)..VX |
67881-60110 |
— | ||
| replacement | |||||
|
67881A
|
67881A
67881-60111 Weatherstrip, Back Door[08.2002 - 02.2004] HDJ100,UZJ100..(5F,5FC)..VX |
67881-60111 |
from US $151.43 |
||
|
67881A
|
67881A
67881-60111 Weatherstrip, Back Door[02.2004 - 05.2005] HDJ100,UZJ100..VX |
67881-60111 |
from US $151.43 |
||
|
68131
|
68131
68131-60432 Glass, Back DoorBACK DOOR [01.2003 - 05.2005] HDJ100,UZJ100..VX *EHTT,T=4.0,GREEN |
68131-60432 |
US $732.37 |
||
|
68281B
|
68281B
68281-60020 Weatherstrip, Lift Gate[08.2002 - 05.2005] HDJ100,UZJ100..VX |
68281-60020 |
from US $139.44 |
||
|
6775460040
|
6775460040
67754-60040
Pad, Front Door Silencer
|
67754-60040 |
— | ||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.67 |
||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.33 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.74 |
||
|
9054109075
|
9054109075
90541-09075 Cushion, Hood Bumper |
90541-09075 |
from US $2.36 |
||
|
9095001796
|
9095001796
90950-01796 PLUG |
90950-01796 |
US $2.34 |
||
|
9095001925
|
9095001925
90950-01925 PLUGHOLE |
90950-01925 |
US $1.49 |
||
|
9095001934
|
9095001934
90950-01934 PLUGHOLE |
90950-01934 |
US $4.30 |
||
|
9354016014
|
9354016014
93540-16014 New Genuine Part |
93540-16014 |
US $0.73 |
||
