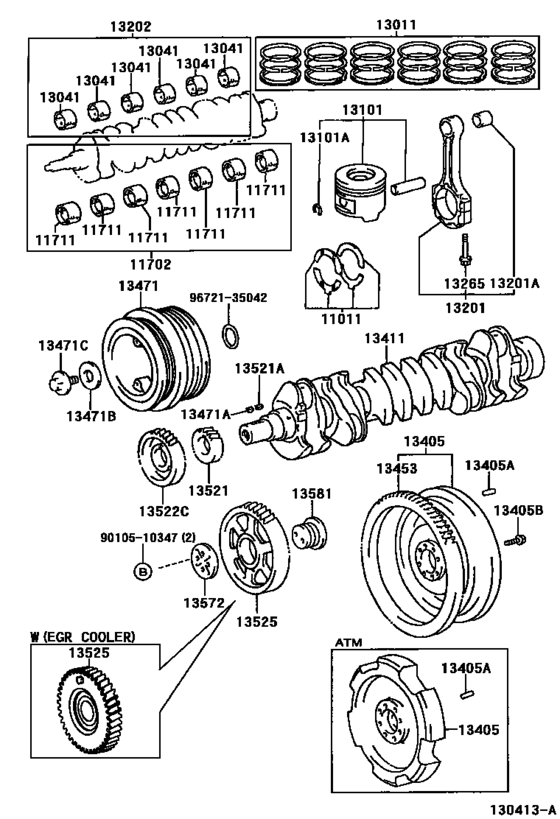

Crankshaft & Piston ([01.1998 - ] (9801- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-17010 Washer Set, Crankshaft Thrust[08.2002 - 05.2005] 1HDFTE..HDJ100 STD |
11011-17010 |
from US $34.73 |
||
|
11702
|
11702
11704-17011 Bearing Set, Crankshaft (US 0.25)[08.2002 - 05.2005] 1HDFTE..HDJ100 U/S 0.25 |
11704-17011 |
from US $141.70 |
||
|
11702
|
11702
11705-17011 Bearing Set, Crankshaft (US 0.50)[08.2002 - 05.2005] 1HDFTE..HDJ100 U/S 0.50 |
11705-17011 |
from US $138.49 |
||
|
11711
|
11711
11701-17011-02 Bearing, Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
11701-17011-02 |
from US $17.12 |
||
|
11711
|
11711
11701-17011-03 Bearing, Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
11701-17011-03 |
from US $17.01 |
||
|
11711
|
11711
11701-17011-04 Bearing, Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
11701-17011-04 |
from US $17.02 |
||
|
11711
|
11711
11701-17011-05 Bearing, Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
11701-17011-05 |
from US $17.08 |
||
|
11711
|
11711
11701-17011-06 Bearing, Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
11701-17011-06 |
from US $17.39 |
||
|
11711
|
11711
11701-17011-07 Bearing, Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 7:REFER TO REPAIR MANUAL,MARK 7 |
11701-17011-07 |
US $65.18 |
||
|
13011
|
13011
13011-17040 Ring Set, Piston[08.2002 - 05.2005] 1HDFTE..HDJ100 STD |
13011-17040 |
from US $391.13 |
||
|
13011
|
13011
13013-17040 Ring Set, Piston[08.2002 - 05.2005] 1HDFTE..HDJ100 O/S 0.50 |
13013-17040 |
from US $458.41 |
||
|
13011
|
13011
13014-17040
Ring Set, Piston
[08.2002 - 05.2005] 1HDFTE..HDJ100..VX O/S 0.75 |
13014-17040 |
— | ||
|
13041
|
13041
13041-17011-02 Bearing, Connecting Rod[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13041-17011-02 |
from US $12.52 |
||
|
13041
|
13041
13041-17011-03 Bearing, Connecting Rod[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13041-17011-03 |
from US $12.73 |
||
|
13041
|
13041
13041-17011-04 Bearing, Connecting Rod[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 4:REFER TO REPAIR MANUAL,MARK 4 |
13041-17011-04 |
from US $12.60 |
||
|
13041
|
13041
13041-17011-05 Bearing, Connecting Rod[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 5:REFER TO REPAIR MANUAL,MARK 5 |
13041-17011-05 |
from US $13.07 |
||
|
13041
|
13041
13041-17011-06 Bearing, Connecting Rod[08.2002 - 05.2005] 1HDFTE..HDJ100 MARK 6:REFER TO REPAIR MANUAL,MARK 6 |
13041-17011-06 |
from US $14.67 |
||
|
13101
|
13101
13101-17110-01 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13101-17110-01 |
US $109.86 |
||
|
13101
|
13101
13101-17110-02 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13101-17110-02 |
from US $114.89 |
||
|
13101
|
13101
13101-17110-03 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13101-17110-03 |
US $186.37 |
||
|
13101
|
13101
13101-17120-01
Piston Sub-Assy, W/pin
[08.2002 - 05.2005] 1HDFTE..HDJ100..VX STD,W(EGR COOLER):REFER TO FIG 25-01,MARK 1:REFER TO REPAIR MANUAL,MARK 1 |
13101-17120-01 |
— | ||
|
13101
|
13101
13101-17120-02 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 1HDFTE..HDJ100..VX STD,W(EGR COOLER):REFER TO FIG 25-01,MARK 2:REFER TO REPAIR MANUAL,MARK 2 |
13101-17120-02 |
US $279.55 |
||
|
13101
|
13101
13101-17120-03
Piston Sub-Assy, W/pin
[08.2002 - 05.2005] 1HDFTE..HDJ100..VX STD,W(EGR COOLER):REFER TO FIG 25-01,MARK 3:REFER TO REPAIR MANUAL,MARK 3 |
13101-17120-03 |
— | ||
|
13101
|
13101
13103-17110 Piston Sub-Assy, W/pin (OS 0.50)[08.2002 - 05.2005] 1HDFTE..HDJ100 O/S 0.50 |
13103-17110 |
from US $139.40 |
||
|
13101
|
13101
13103-17120 Piston Sub-Assy, W/pin[08.2002 - 05.2005] 1HDFTE..HDJ100..VX O/S 0.50,W(EGR COOLER):REFER TO FIG 25-01 |
13103-17120 |
from US $223.46 |
||
|
13101
|
13101
13104-17020
Piston Sub-Assy, W/pin
[04.2003 - 05.2004] 1HDFTE..HDJ100..VX O/S 0.75,W(EGR COOLER):REFER TO FIG 25-01 |
13104-17020 |
— | ||
| replacement | |||||
|
13101
|
13101
13104-17120 Piston Sub-Assy, W/pin[04.2003 - 05.2004] 1HDFTE..HDJ100..VX O/S 0.75,W(EGR COOLER):REFER TO FIG 25-01 |
13104-17120 |
US $211.12 |
||
|
13101A
|
13101A
90521-36001 Ring, Hole Snap(For Piston Pin)[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC |
90521-36001 |
US $3.05 |
||
|
13201
|
13201
13201-17022 Rod Sub-Assy, Connecting[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13201-17022 |
from US $216.41 |
||
|
13201A
|
13201A
90999-73137 Bush(For Connecting Rod Small End)[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC |
90999-73137 |
from US $17.92 |
||
|
13202
|
13202
13204-17011 Bearing Set, Connecting Rod (US 0.25)[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC U/S 0.25 |
13204-17011 |
from US $90.95 |
||
|
13202
|
13202
13205-17011 Bearing Set, Connecting Rod (US 0.50)[05.2004 - 05.2005] 1HDFTE..HDJ100 U/S 0.50 |
13205-17011 |
from US $92.26 |
||
|
13265
|
13265
13265-17010 Bolt, Connecting Rod[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13265-17010 |
from US $4.16 |
||
|
13405
|
13405
13451-17020 Flywheel Sub-Assy[08.2002 - 05.2005] 1HDFTE..HDJ100..ATM |
13451-17020 |
US $615.89 |
||
|
13405A
|
13405A
90250-05121 Pin, Straight, No.3(For Camshaft Knock)[08.2002 - 05.2005] 1HDFTE..HDJ100..ATM L=15,OD=5 |
90250-05121 |
from US $1.16 |
||
|
13411
|
13411
13411-17012 Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13411-17012 |
from US $1,329.11 |
||
|
13471
|
13471
13408-17030 Pulley, Crankshaft[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13408-17030 |
from US $322.92 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
95161-30516 |
from US $1.06 |
||
|
13471B
|
13471B
90201-27001 Washer, Plate(For Crankshaft Pulley Set)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90201-27001 |
from US $7.03 |
||
|
13471C
|
13471C
90105-24001 Bolt(For Crankshaft Pulley Set)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90105-24001 |
from US $6.75 |
||
|
13521
|
13521
13521-17030 Gear Or Sprocket, Crankshaft Timing[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13521-17030 |
from US $45.07 |
||
|
13521
|
13521
13521-17040
Gear Or Sprocket, Crankshaft Timing
[08.2002 - 05.2005] 1HDFTE..HDJ100..VX W(EGR COOLER):REFER TO FIG 25-01 |
13521-17040 |
— | ||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
95161-30516 |
from US $1.06 |
||
|
13522C
|
13522C
13522-17010 Gear, Pump Drive Shaft[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13522-17010 |
from US $32.01 |
||
|
13522C
|
13522C
13522-17030 Gear, Pump Drive Shaft[08.2002 - 05.2005] 1HDFTE..HDJ100..VX W(EGR COOLER):REFER TO FIG 25-01 |
13522-17030 |
US $57.37 |
||
|
13525
|
13525
13520-17010
Gear, Idle, No.1
[08.2002 - 05.2005] 1HDFTE..HDJ100..VX W(EGR COOLER):REFER TO FIG 25-01 |
13520-17010 |
— | ||
|
13525
|
13525
13525-17030 Gear, Idle, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13525-17030 |
US $211.41 |
||
|
13572
|
13572
13572-17021 Plate, Idle Gear Thrust[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13572-17021 |
from US $7.92 |
||
|
13572
|
13572
13572-17030 Plate, Idle Gear Thrust[08.2002 - 05.2005] 1HDFTE..HDJ100..VX W(EGR COOLER):REFER TO FIG 25-01 |
13572-17030 |
from US $14.74 |
||
|
13581
|
13581
13581-17012 Shaft, Idle Gear, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 |
13581-17012 |
from US $20.12 |
||
|
9010510347
|
9010510347
90105-10347 BOLT WASHER BASED |
90105-10347 |
from US $1.31 |
||
|
9672135042
|
9672135042
96721-35042 RING |
96721-35042 |
from US $2.62 |
||
