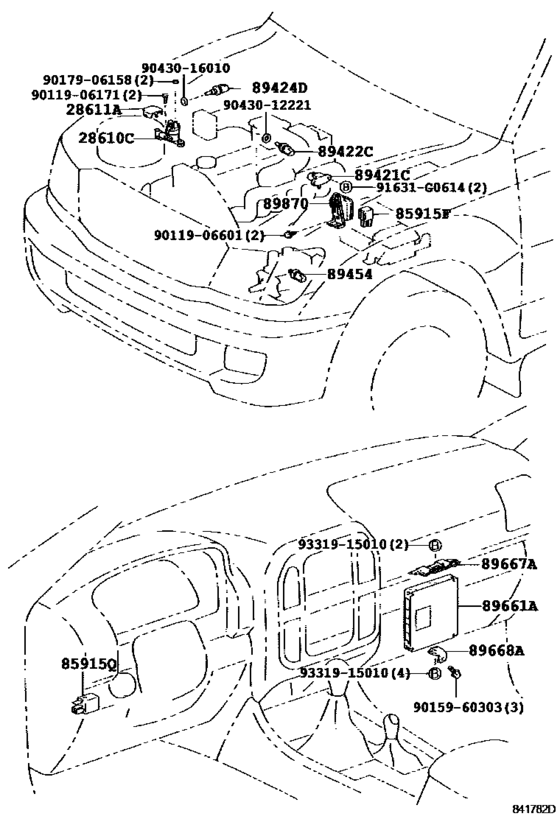

Electronic Controled Diesel (Ecd) ([01.1998 - ] (9801- )HDJ100..LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610C
|
28610C
28610-17090
Relay Assy, Intake Heater
[08.2002 - 05.2004] 1HDFTE..HDJ100..5F,5FC |
28610-17090 |
— | ||
| replacement | |||||
|
28610C
|
28610C
28610-17091 Relay Assy, Intake Heater[08.2002 - 05.2004] 1HDFTE..HDJ100..5F,5FC |
28610-17091 |
US $197.43 |
||
|
28610C
|
28610C
28610-17091 Relay Assy, Intake Heater[05.2004 - 05.2005] 1HDFTE..HDJ100 |
28610-17091 |
US $197.43 |
||
|
28611A
|
28611A
28611-55010 Cover, Glow Plug Relay[08.2002 - 05.2005] 1HDFTE..HDJ100 |
28611-55010 |
from US $4.02 |
||
|
85915F
|
85915F
85915-30050 Relay, Main[08.2002 - 05.2005] HDJ100..5F,5FC |
85915-30050 |
from US $71.57 |
||
|
85915Q
|
85915Q
90987-02022 Relay, Starter Cut[08.2002 - 05.2005] HDJ100..5F,5FC |
90987-02022 |
from US $50.45 |
||
|
89421C
|
89421C
89421-20210 Sensor, Turbo Pressure (For Diesel Turbo)[08.2002 - 05.2005] HDJ100 |
89421-20210 |
from US $154.16 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.2002 - 05.2005] HDJ100..5F,5FC |
89422-35010 |
from US $43.53 |
||
|
89424D
|
89424D
89424-60010 Sensor, Inlet Air Temperature (For Diesel Turbo)[08.2002 - 05.2005] HDJ100..5F,5FC |
89424-60010 |
from US $73.08 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[08.2002 - 05.2005] HDJ100 |
89454-60010 |
from US $36.88 |
||
|
89661A
|
89661A
89661-60B00
Computer, Engine Control
[07.2003 - 05.2005] HDJ100..5FC |
89661-60B00 |
— | ||
|
89661A
|
89661A
89661-60B20
Computer, Engine Control
[07.2003 - 05.2005] HDJ100..RHD..5FC SOUTH AFRICA SPEC; HDJ100..LHD..5FC ARGENTINA SPEC |
89661-60B20 |
— | ||
|
89661A
|
89661A
89666-60761
Computer, Engine Control
[07.2003 - 05.2005] HDJ100..LHD..5FC RUSSIA SPEC; HDJ100..RHD..5FC NEW ZEALAND SPEC |
89666-60761 |
— | ||
|
89667A
|
89667A
89667-60140 Bracket, Engine Control Computer[08.2002 - 05.2005] HDJ100 |
89667-60140 |
from US $10.24 |
||
|
89668A
|
89668A
89668-60160 Bracket, Engine Control Computer, No.2[07.2003 - 08.2003] HDJ100..5FC |
89668-60160 |
from US $6.25 |
||
|
89870
|
89870
89870-60010 Driver Assy, Spill Valve Control[08.2002 - 05.2005] HDJ100..5F,5FC |
89870-60010 |
from US $623.58 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
