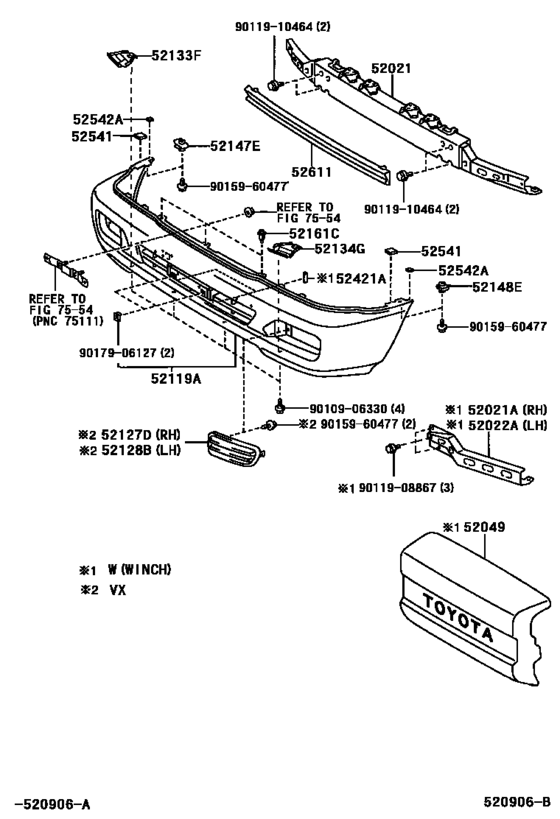

Front Bumper & Bumper Stay ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-60060
Reinforcement Sub-Assy, Front Bumper
[08.2002 - 05.2005] HDJ100,UZJ100 |
52021-60060 |
— | ||
| replacement | |||||
|
52021
|
52021
52021-60120 Reinforcement Sub-Assy, Front Bumper[08.2002 - 05.2005] HDJ100,UZJ100 |
52021-60120 |
from US $175.28 |
||
|
52119A
|
52119A
52119-60918 Cover, Front BumperFRONT BUMPER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
52119-60918 |
from US $256.22 |
||
|
52119A
|
52119A
52119-60921 Cover, Front BumperFRONT BUMPER [08.2002 - 05.2005] HDJ100,UZJ100..VX W(HEADLAMP CLEANER) |
52119-60921 |
from US $300.43 |
||
|
52119A
|
52119A
52119-60956 Cover, Front BumperFRONT BUMPER [05.2005 - 08.2007] HDJ100,UZJ100 W(HEADLAMP CLEANER) |
52119-60956 |
from US $309.40 |
||
|
52127D
|
52127D
52127-60030 Cover, Front Bumper Hole, RhFRONT BUMPER HOLE, RH [08.2002 - 05.2005] HDJ100,UZJ100..VX |
52127-60030 |
from US $42.05 |
||
|
52128B
|
52128B
52128-60030 Cover, Front Bumper Hole, LhFRONT BUMPER HOLE, LH [08.2002 - 05.2005] HDJ100,UZJ100..VX |
52128-60030 |
from US $41.95 |
||
|
52133F
|
52133F
52133-60070 Bracket, Front Bumper, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
52133-60070 |
US $22.34 |
||
|
52134G
|
52134G
52134-60080 Bracket, Front Bumper, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
52134-60080 |
US $22.34 |
||
|
52147E
|
52147E
52147-60050 Bracket, Front Bumper Mounting, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
52147-60050 |
from US $2.55 |
||
|
52148E
|
52148E
52147-60050 Bracket, Front Bumper Mounting, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
52147-60050 |
from US $2.55 |
||
|
52161C
|
52161C
52161-16010 Clip[08.2002 - 05.2005] HDJ100,UZJ100 |
52161-16010 |
from US $1.69 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[08.2002 - 05.2005] HDJ100,UZJ100 |
52161-0K040 |
from US $1.46 |
||
|
52161C
|
52161C
52161-02020 Clip[08.2002 - 05.2005] HDJ100,UZJ100 |
52161-02020 |
US $5.27 |
||
|
52541
|
52541
52541-60010 Protector, Front Bumper[08.2002 - 05.2005] HDJ100,UZJ100 |
52541-60010 |
from US $1.54 |
||
|
52542A
|
52542A
52542-60010 Protector, Front Bumper, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX |
52542-60010 |
from US $1.52 |
||
|
52611
|
52611
52611-60020 Absorber, Front Bumper Energy[08.2002 - 05.2005] HDJ100,UZJ100 |
52611-60020 |
from US $50.10 |
||
|
9010906330
|
9010906330
90109-06330 BOLT |
90109-06330 |
from US $0.76 |
||
|
9011908867
|
9011908867
90119-08867 BOLT WWASHER |
90119-08867 |
US $1.97 |
||
|
9011910464
|
9011910464
90119-10464 BOLTWWASHER |
90119-10464 |
US $2.75 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
