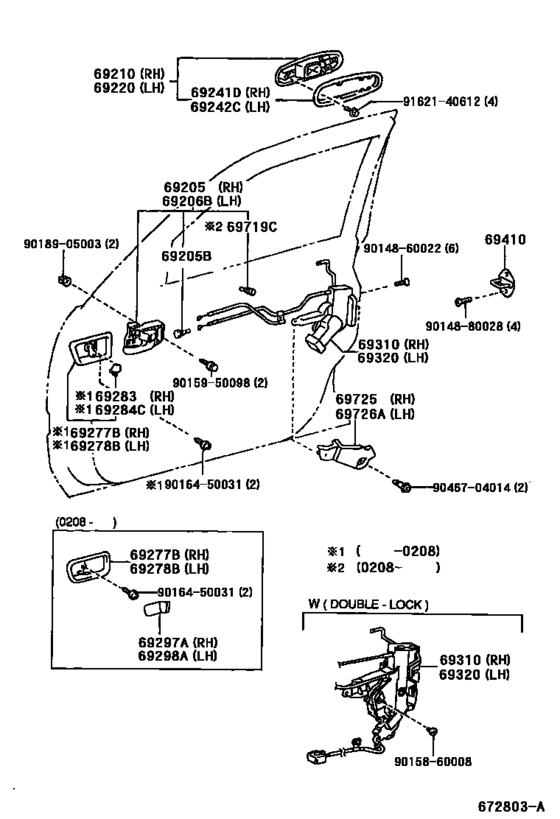

Front Door Lock & Handle ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-60110-A0 Handle Sub-Assy, Front Door Inside, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69205-60110-A0 |
US $38.18 |
||
|
69205
|
69205
69205-60110-B0 Handle Sub-Assy, Front Door Inside, Rh[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
69205-60110-B0 |
US $43.16 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[08.2002 - 05.2005] HDJ100,UZJ100 |
90541-04014 |
from US $0.78 |
||
|
69206B
|
69206B
69206-60110-A0 Handle Sub-Assy, Front Door Inside, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69206-60110-A0 |
from US $37.22 |
||
|
69206B
|
69206B
69206-60110-B0 Handle Sub-Assy, Front Door Inside, Lh[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
69206-60110-B0 |
US $41.06 |
||
|
69210
|
69210
69210-60071-A0 Handle Assy, Front Door, Outside Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX WHITE,056 |
69210-60071-A0 |
from US $95.21 |
||
|
69210
|
69210
69210-60071-B0 Handle Assy, Front Door, Outside Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX WARM SILVER ME.,1B1 |
69210-60071-B0 |
US $108.24 |
||
|
69210
|
69210
69210-60071-B4 Handle Assy, Front Door, Outside Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.GRAY M.M.,1E9 |
69210-60071-B4 |
US $108.24 |
||
|
69210
|
69210
69210-60071-B5 Handle Assy, Front Door, Outside Rh[05.2005 - 08.2007] HDJ100,UZJ100 SILVER ME.,1F7 |
69210-60071-B5 |
US $108.24 |
||
|
69210
|
69210
69210-60071-C0 Handle Assy, Front Door, Outside Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX BLACK,202 |
69210-60071-C0 |
from US $95.21 |
||
|
69210
|
69210
69210-60071-D1 Handle Assy, Front Door, Outside Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.RED MC.,3Q2 |
69210-60071-D1 |
US $108.24 |
||
|
69210
|
69210
69210-60071-E5 Handle Assy, Front Door, Outside Rh[05.2005 - 08.2007] HDJ100,UZJ100 BEIGE M.M.,4R3 |
69210-60071-E5 |
US $108.24 |
||
|
69210
|
69210
69210-60071-G0 Handle Assy, Front Door, Outside Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.GREEN MC.,6Q7 |
69210-60071-G0 |
US $108.24 |
||
|
69210
|
69210
69210-60071-G4 Handle Assy, Front Door, Outside Rh[05.2005 - 08.2007] HDJ100,UZJ100 DARK GREEN MC.,6R4 |
69210-60071-G4 |
US $108.24 |
||
|
69210
|
69210
69210-60071-J0 Handle Assy, Front Door, Outside Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.BLUE MC.,8L4 |
69210-60071-J0 |
US $108.24 |
||
|
69210
|
69210
69210-60071-J2 Handle Assy, Front Door, Outside Rh[05.2005 - 08.2007] HDJ100,UZJ100 GRAYISH BLUE ME.,8R3 |
69210-60071-J2 |
US $108.24 |
||
|
69220
|
69220
69220-60071-A0 Handle Assy, Front Door Outside, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX WHITE,056 |
69220-60071-A0 |
from US $88.16 |
||
|
69220
|
69220
69220-60071-B0 Handle Assy, Front Door Outside, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX WARM SILVER ME.,1B1 |
69220-60071-B0 |
US $90.27 |
||
|
69220
|
69220
69220-60071-B4 Handle Assy, Front Door Outside, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.GRAY M.M.,1E9 |
69220-60071-B4 |
US $90.27 |
||
|
69220
|
69220
69220-60071-B5 Handle Assy, Front Door Outside, Lh[05.2005 - 08.2007] HDJ100,UZJ100 SILVER ME.,1F7 |
69220-60071-B5 |
US $90.27 |
||
|
69220
|
69220
69220-60071-C0 Handle Assy, Front Door Outside, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX BLACK,202 |
69220-60071-C0 |
from US $95.21 |
||
|
69220
|
69220
69220-60071-D1 Handle Assy, Front Door Outside, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.RED MC.,3Q2 |
69220-60071-D1 |
US $90.27 |
||
|
69220
|
69220
69220-60071-E5
Handle Assy, Front Door Outside, Lh
[05.2005 - 08.2007] HDJ100,UZJ100 BEIGE M.M.,4R3 |
69220-60071-E5 |
— | ||
|
69220
|
69220
69220-60071-G0
Handle Assy, Front Door Outside, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.GREEN MC.,6Q7 |
69220-60071-G0 |
— | ||
|
69220
|
69220
69220-60071-G4 Handle Assy, Front Door Outside, Lh[05.2005 - 08.2007] HDJ100,UZJ100 DARK GREEN MC.,6R4 |
69220-60071-G4 |
US $90.27 |
||
|
69220
|
69220
69220-60071-J0 Handle Assy, Front Door Outside, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.BLUE MC.,8L4 |
69220-60071-J0 |
US $90.27 |
||
|
69220
|
69220
69220-60071-J2 Handle Assy, Front Door Outside, Lh[05.2005 - 08.2007] HDJ100,UZJ100 GRAYISH BLUE ME.,8R3 |
69220-60071-J2 |
US $90.27 |
||
|
69241D
|
69241D
69241-60021 Pad, Front Door Outside Handle, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
69241-60021 |
from US $6.14 |
||
|
69242C
|
69242C
69241-60021 Pad, Front Door Outside Handle, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
69241-60021 |
from US $6.14 |
||
|
69277B
|
69277B
69277-60040-A0 Bezel, Front Door Inside Handle, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69277-60040-A0 |
from US $15.87 |
||
|
69277B
|
69277B
69277-60040-B0 Bezel, Front Door Inside Handle, Rh[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
69277-60040-B0 |
US $17.92 |
||
|
69278B
|
69278B
69278-60030-A0 Bezel, Front Door Inside Handle, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69278-60030-A0 |
from US $13.10 |
||
|
69278B
|
69278B
69278-60030-B0 Bezel, Front Door Inside Handle, Lh[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
69278-60030-B0 |
from US $13.40 |
||
|
69297A
|
69297A
69297-60010-A0 Bezel, Door Inside Handle, No.2 Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69297-60010-A0 |
from US $5.53 |
||
|
69297A
|
69297A
69297-60010-B0 Bezel, Door Inside Handle, No.2 Rh[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
69297-60010-B0 |
US $6.45 |
||
|
69298A
|
69298A
69298-60010-A0 Bezel, Door Inside Handle, No.2 Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
69298-60010-A0 |
US $6.45 |
||
|
69298A
|
69298A
69298-60010-B0 Bezel, Door Inside Handle, No.2 Lh[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
69298-60010-B0 |
US $6.45 |
||
|
69310
|
69310
69030-60181
Lock Assy, Front Door, Rh
[08.2002 - 05.2005] HDJ100,UZJ100 |
69030-60181 |
— | ||
| replacement | |||||
|
69310
|
69310
69030-60182 Lock Assy, Front Door, RhFRONT DOOR, RH [08.2002 - 05.2005] HDJ100,UZJ100 |
69030-60182 |
US $260.26 |
||
|
69310
|
69310
69030-60182 Lock Assy, Front Door, RhFRONT DOOR, RH [10.2006 -] HDJ100,UZJ100 |
69030-60182 |
US $260.26 |
||
|
69310
|
69310
69030-60200
Lock Assy, Front Door, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DOUBLE-LOCK) |
69030-60200 |
— | ||
|
69320
|
69320
69040-60131
Lock Assy, Front Door, Lh
[08.2002 - 05.2005] HDJ100,UZJ100 |
69040-60131 |
— | ||
| replacement | |||||
|
69320
|
69320
69040-60132 Lock Assy, Front Door, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
69040-60132 |
from US $218.40 |
||
|
69320
|
69320
69040-60132 Lock Assy, Front Door, Lh[10.2006 -] HDJ100,UZJ100 |
69040-60132 |
from US $218.40 |
||
|
69320
|
69320
69040-60180
Lock Assy, Front Door, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DOUBLE-LOCK) |
69040-60180 |
— | ||
|
69410
|
69410
69410-20110 Plate Assy, Front Door Lock Striker[08.2002 - 05.2005] HDJ100,UZJ100 |
69410-20110 |
US $17.64 |
||
|
69719C
|
69719C
69719-30010 Cushion, Door Lock Control[08.2002 - 05.2005] HDJ100,UZJ100 |
69719-30010 |
US $1.31 |
||
|
69725
|
69725
69725-60030 Protector, Front Door Inside Locking Link, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
69725-60030 |
US $23.41 |
||
|
69726A
|
69726A
69726-60030
Protecter, Front Door Inside Locking Link, Lh
[08.2002 - 05.2005] HDJ100,UZJ100 |
69726-60030 |
— | ||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.48 |
||
|
9014880028
|
9014880028
90148-80028 SCREW, HEX LOBULAR |
90148-80028 |
from US $0.67 |
||
|
9015860008
|
9015860008
90158-60008 New Genuine Part |
90158-60008 |
US $1.46 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.63 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.12 |
||
|
9046704014
|
9046704014
90467-04014 Clamp, Rear Door Lock Link |
90467-04014 |
US $1.93 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
