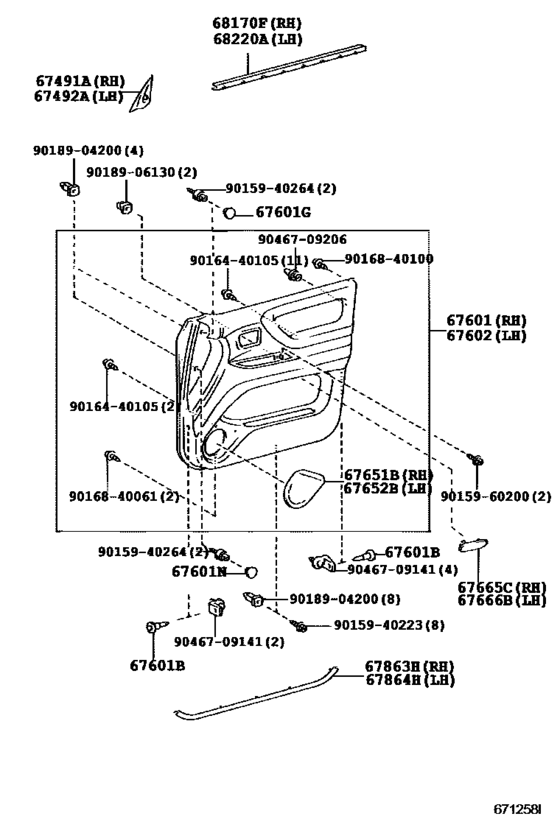

Front Door Panel & Glass ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-60060
Garnish, Front Door Lower Frame Bracket, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
67491-60060 |
— | ||
| replacement | |||||
|
67491A
|
67491A
67491-60070 Garnish, Front Door Lower Frame Bracket, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
67491-60070 |
from US $19.38 |
||
|
67491A
|
67491A
67491-60070 Garnish, Front Door Lower Frame Bracket, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(TWEETER SPEAKER) |
67491-60070 |
from US $19.38 |
||
|
67492A
|
67492A
67492-60060
Garnish, Front Door Lower Frame Bracket, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
67492-60060 |
— | ||
| replacement | |||||
|
67492A
|
67492A
67492-60070 Garnish, Front Door Lower Frame Bracket, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
67492-60070 |
from US $19.21 |
||
|
67492A
|
67492A
67492-60070 Garnish, Front Door Lower Frame Bracket, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(TWEETER SPEAKER) |
67492-60070 |
from US $19.21 |
||
|
67601
|
67601
67650-60022-A0
Board Sub-Assy, Front Door Trim, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
67650-60022-A0 |
— | ||
| replacement | |||||
|
67601
|
67601
67650-60022-A2
Board Sub-Assy, Front Door Trim, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
67650-60022-A2 |
— | ||
|
67601
|
67601
67650-60022-A2
Board Sub-Assy, Front Door Trim, Rh
[01.2007 - 08.2007] HDJ100,UZJ100 IVORY,TRIM0# |
67650-60022-A2 |
— | ||
|
67601
|
67601
67650-60022-B2 Board Sub-Assy, Front Door Trim, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
67650-60022-B2 |
US $668.30 |
||
| replacement | |||||
|
67601
|
67601
67650-60022-B4 Board Sub-Assy, Front Door Trim, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
67650-60022-B4 |
US $668.30 |
||
|
67601
|
67601
67650-60022-B4 Board Sub-Assy, Front Door Trim, Rh[01.2007 - 08.2007] HDJ100,UZJ100 STONE,TRIM1# |
67650-60022-B4 |
US $668.30 |
||
|
67601
|
67601
67650-60041-A0 Board Sub-Assy, Front Door Trim, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
67650-60041-A0 |
US $899.81 |
||
| replacement | |||||
|
67601
|
67601
67610-60C20-A0
Board Sub-Assy, Front Door Trim, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
67610-60C20-A0 |
— | ||
|
67601
|
67601
67650-60041-A1
Board Sub-Assy, Front Door Trim, Rh
[01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),IVORY,TRIM0# |
67650-60041-A1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-60C20-A0
Board Sub-Assy, Front Door Trim, Rh
[01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),IVORY,TRIM0# |
67610-60C20-A0 |
— | ||
|
67601
|
67601
67650-60041-B1 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
67650-60041-B1 |
US $899.81 |
||
| replacement | |||||
|
67601
|
67601
67610-60C20-B0
Board Sub-Assy, Front Door Trim, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
67610-60C20-B0 |
— | ||
|
67601
|
67601
67650-60041-B2 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),STONE,TRIM1# |
67650-60041-B2 |
US $899.81 |
||
| replacement | |||||
|
67601
|
67601
67610-60C20-B0
Board Sub-Assy, Front Door Trim, Rh
[01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),STONE,TRIM1# |
67610-60C20-B0 |
— | ||
|
67601B
|
67601B
90467-07066-A0 Clip(For Panel, Instrument Cluster Finish)[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
90467-07066-A0 |
from US $0.95 |
||
|
67601B
|
67601B
90467-07066-P4 Clip(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
90467-07066-P4 |
from US $1.25 |
||
|
67601G
|
67601G
90950-01800-A1 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM00 |
90950-01800-A1 |
from US $3.12 |
||
|
67601G
|
67601G
90950-01800-B9 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM10 |
90950-01800-B9 |
from US $3.44 |
||
|
67601G
|
67601G
90950-01800-E5 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM00 |
90950-01800-E5 |
from US $3.12 |
||
|
67601G
|
67601G
90950-01800-P0 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100 DK.GRAY,TRIM10 |
90950-01800-P0 |
from US $2.38 |
||
|
67601N
|
67601N
90950-01800-A1 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM00 |
90950-01800-A1 |
from US $3.12 |
||
|
67601N
|
67601N
90950-01800-B9 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM10 |
90950-01800-B9 |
from US $3.44 |
||
|
67601N
|
67601N
90950-01800-E5 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM00 |
90950-01800-E5 |
from US $3.12 |
||
|
67601N
|
67601N
90950-01800-P0 Plug, Hole(For Front Door Trim Board)[08.2002 - 05.2005] HDJ100,UZJ100 DK.GRAY,TRIM10 |
90950-01800-P0 |
from US $2.38 |
||
|
67602
|
67602
67660-60032-A0
Board Sub-Assy, Front Door Trim, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
67660-60032-A0 |
— | ||
| replacement | |||||
|
67602
|
67602
67660-60032-A2
Board Sub-Assy, Front Door Trim, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
67660-60032-A2 |
— | ||
|
67602
|
67602
67660-60032-A2
Board Sub-Assy, Front Door Trim, Lh
[01.2007 - 08.2007] HDJ100,UZJ100 IVORY,TRIM0# |
67660-60032-A2 |
— | ||
|
67602
|
67602
67660-60032-B2 Board Sub-Assy, Front Door Trim, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
67660-60032-B2 |
US $668.30 |
||
| replacement | |||||
|
67602
|
67602
67660-60032-B6 Board Sub-Assy, Front Door Trim, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
67660-60032-B6 |
US $668.30 |
||
|
67602
|
67602
67660-60032-B6 Board Sub-Assy, Front Door Trim, Lh[01.2007 - 08.2007] HDJ100,UZJ100 STONE,TRIM1# |
67660-60032-B6 |
US $668.30 |
||
|
67602
|
67602
67660-60061-A0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
67660-60061-A0 |
US $981.34 |
||
| replacement | |||||
|
67602
|
67602
67620-60C00-A0
Board Sub-Assy, Front Door Trim, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
67620-60C00-A0 |
— | ||
|
67602
|
67602
67660-60061-A1
Board Sub-Assy, Front Door Trim, Lh
[01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),IVORY,TRIM0# |
67660-60061-A1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-60C00-A0
Board Sub-Assy, Front Door Trim, Lh
[01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),IVORY,TRIM0# |
67620-60C00-A0 |
— | ||
|
67602
|
67602
67660-60061-B1 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
67660-60061-B1 |
US $981.34 |
||
| replacement | |||||
|
67602
|
67602
67620-60C00-B0
Board Sub-Assy, Front Door Trim, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
67620-60C00-B0 |
— | ||
|
67602
|
67602
67660-60061-B2
Board Sub-Assy, Front Door Trim, Lh
[01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),STONE,TRIM1# |
67660-60061-B2 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-60C00-B0
Board Sub-Assy, Front Door Trim, Lh
[01.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER SEAT),STONE,TRIM1# |
67620-60C00-B0 |
— | ||
|
67651B
|
67651B
67609-60011-A0 Grille, Speaker Door, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
67609-60011-A0 |
from US $30.95 |
||
|
67651B
|
67651B
67609-60011-B1 Grille, Speaker Door, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
67609-60011-B1 |
from US $31.14 |
||
|
67652B
|
67652B
67709-60011-A0 Grille, Speaker Door, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
67709-60011-A0 |
US $53.42 |
||
|
67652B
|
67652B
67709-60011-B1 Grille, Speaker Door, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
67709-60011-B1 |
from US $32.55 |
||
|
68170F
|
68170F
68170-60111 Weatherstrip Assy, Front Door Glass, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
68170-60111 |
from US $34.87 |
||
|
68220A
|
68220A
68220-60061 Weatherstrip Assy, Front Door Glass, Inner Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
68220-60061 |
from US $34.18 |
||
|
9015940223
|
9015940223
90159-40223 SCREW WWASHER |
90159-40223 |
from US $0.68 |
||
|
9015940264
|
9015940264
90159-40264 SCREW W-WASHER |
90159-40264 |
from US $0.80 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.79 |
||
|
9016440105
|
9016440105
90164-40105 SCREW BINDING |
90164-40105 |
from US $0.78 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.74 |
||
|
9016840100
|
9016840100
90168-40100 SCREW TAPPING |
90168-40100 |
from US $1.10 |
||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.65 |
||
|
9018906130
|
9018906130
90189-06130 GROMMET SCREW |
90189-06130 |
US $1.97 |
||
|
9046709141
|
9046709141
90467-09141 Clip(For Front Door Trim Board) |
90467-09141 |
US $4.66 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.46 |
||
