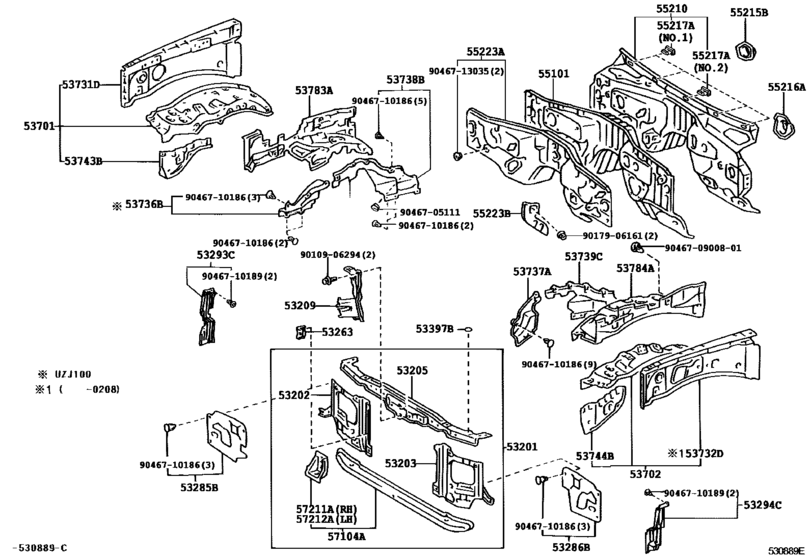

Front Fender Apron & Dash Panel ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-60052 Support Sub-Assy, Radiator[08.2002 - 11.2004] HDJ100; UZJ100 |
53201-60052 |
US $687.23 |
||
| replacement | |||||
|
53201
|
53201
53201-60180 Support Sub-Assy, Radiator[08.2002 - 11.2004] HDJ100; UZJ100 |
53201-60180 |
from US $567.09 |
||
|
53201
|
53201
53201-60180 Support Sub-Assy, Radiator[12.2004 - 05.2005] HDJ100 |
53201-60180 |
from US $567.09 |
||
|
53202
|
53202
53202-60062 Support Sub-Assy, Radiator, Rh[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53202-60062 |
US $145.60 |
||
|
53203
|
53203
53203-60092 Support Sub-Assy, Radiator, Lh[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53203-60092 |
US $145.60 |
||
|
53205
|
53205
53205-60010 Support Sub-Assy, Radiator, Upper[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53205-60010 |
US $163.07 |
||
| replacement | |||||
|
53205
|
53205
53205-60040 Support Sub-Assy, Radiator, Upper[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53205-60040 |
US $163.54 |
||
|
53205
|
53205
53205-60040 Support Sub-Assy, Radiator, Upper[12.2004 - 05.2005] HDJ100,UZJ100 |
53205-60040 |
US $163.54 |
||
|
53209
|
53209
53209-60090
Brace Sub-Assy, Hood Lock
[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53209-60090 |
— | ||
| replacement | |||||
|
53209
|
53209
53209-60091 Brace Sub-Assy, Hood Lock[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53209-60091 |
from US $51.11 |
||
|
53209
|
53209
53209-60091 Brace Sub-Assy, Hood Lock[03.2005 - 05.2005] HDJ100,UZJ100 |
53209-60091 |
from US $51.11 |
||
|
53263
|
53263
53263-60010 Retainer, Intercooler Mounting[08.2002 - 05.2005] HDJ100..5F,5FC |
53263-60010 |
US $7.69 |
||
|
53285B
|
53285B
53285-60061 Seal, Radiator Side Air, No.1[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
53285-60061 |
from US $40.54 |
||
|
53286B
|
53286B
53286-60051 Seal, Radiator Side Air, No.2[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
53286-60051 |
from US $36.12 |
||
|
53293C
|
53293C
53293-60020 Deflector, Radiator Side, Rh[08.2002 - 05.2005] HDJ100..(5F,5FC)..VX |
53293-60020 |
US $24.90 |
||
|
53293C
|
53293C
53293-60040
Deflector, Radiator Side, Rh
[05.2005 -] HDJ100 |
53293-60040 |
— | ||
|
53294C
|
53294C
53294-60040 Deflector, Radiator Side, Lh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
53294-60040 |
US $27.81 |
||
|
53294C
|
53294C
53294-60060 Deflector, Radiator Side, Lh[05.2005 -] HDJ100,UZJ100 |
53294-60060 |
US $29.35 |
||
|
53397B
|
53397B
53397-60010 Seal, Hood To Cowl Top[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
53397-60010 |
from US $5.19 |
||
|
53701
|
53701
53710-60182 Apron Sub-Assy, Front Fender, Rh[08.2002 - 11.2004] HDJ100..5F,5FC |
53710-60182 |
US $479.02 |
||
| replacement | |||||
|
53701
|
53701
53710-60183 Apron Sub-Assy, Front Fender, Rh[08.2002 - 11.2004] HDJ100..5F,5FC |
53710-60183 |
US $477.98 |
||
|
53701
|
53701
53710-60183 Apron Sub-Assy, Front Fender, Rh[12.2004 - 05.2005] HDJ100 |
53710-60183 |
US $477.98 |
||
|
53702
|
53702
53720-60173 Apron Sub-Assy, Front Fender, Lh[02.2003 - 09.2004] HDJ100,UZJ100..5F,5FC |
53720-60173 |
US $479.02 |
||
| replacement | |||||
|
53702
|
53702
53720-60180 Apron Sub-Assy, Front Fender, Lh[02.2003 - 09.2004] HDJ100,UZJ100..5F,5FC |
53720-60180 |
US $476.29 |
||
|
53702
|
53702
53720-60174 Apron Sub-Assy, Front Fender, Lh[10.2004 - 11.2004] HDJ100,UZJ100 |
53720-60174 |
US $479.02 |
||
| replacement | |||||
|
53702
|
53702
53720-60180 Apron Sub-Assy, Front Fender, Lh[10.2004 - 11.2004] HDJ100,UZJ100 |
53720-60180 |
US $476.29 |
||
|
53702
|
53702
53720-60175 Apron Sub-Assy, Front Fender, Lh[12.2004 - 05.2005] HDJ100,UZJ100 |
53720-60175 |
US $479.02 |
||
| replacement | |||||
|
53702
|
53702
53720-60180 Apron Sub-Assy, Front Fender, Lh[12.2004 - 05.2005] HDJ100,UZJ100 |
53720-60180 |
US $476.29 |
||
|
53702
|
53702
53720-60176 Apron Sub-Assy, Front Fender, Lh[07.2006 -] HDJ100,UZJ100 |
53720-60176 |
US $479.02 |
||
| replacement | |||||
|
53702
|
53702
53720-60180 Apron Sub-Assy, Front Fender, Lh[07.2006 -] HDJ100,UZJ100 |
53720-60180 |
US $476.29 |
||
|
53731D
|
53731D
53705-60041
Member, Front Apron To Cowl Side, Upper Rh
[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53705-60041 |
— | ||
| replacement | |||||
|
53731D
|
53731D
53705-60042 Member, Front Apron To Cowl Side, Upper Rh[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53705-60042 |
US $133.95 |
||
|
53731D
|
53731D
53705-60042 Member, Front Apron To Cowl Side, Upper Rh[12.2004 - 05.2005] HDJ100,UZJ100 |
53705-60042 |
US $133.95 |
||
|
53737A
|
53737A
53737-60070 Seal, Front Fender Apron To Frame, No.1 Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
53737-60070 |
from US $19.02 |
||
|
53738B
|
53738B
53738-60050
Seal, Front Fender Apron To Frame, No.2 Rh
[08.2002 - 05.2005] HDJ100,UZJ100 |
53738-60050 |
— | ||
| replacement | |||||
|
53738B
|
53738B
53738-60051 Seal, Front Fender Apron To Frame, No.2 Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
53738-60051 |
from US $30.27 |
||
|
53738B
|
53738B
53738-60051 Seal, Front Fender Apron To Frame, No.2 Rh[03.2007 -] HDJ100,UZJ100 |
53738-60051 |
from US $30.27 |
||
|
53739C
|
53739C
53739-60040
Seal, Front Fender Apron To Frame, Rear
[08.2002 - 05.2005] HDJ100,UZJ100 |
53739-60040 |
— | ||
| replacement | |||||
|
53739C
|
53739C
53739-60041 Seal, Front Fender Apron To Frame, Rear[08.2002 - 05.2005] HDJ100,UZJ100 |
53739-60041 |
from US $29.87 |
||
|
53739C
|
53739C
53739-60041 Seal, Front Fender Apron To Frame, Rear[03.2007 -] HDJ100,UZJ100 |
53739-60041 |
from US $29.87 |
||
|
53743B
|
53743B
53743-60050 Reinforcement, Front Fender Apron, Front Rh[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
53743-60050 |
US $30.23 |
||
|
53744B
|
53744B
53744-60050 Reinforcement, Front Fender Apron, Front Lh[08.2002 - 02.2003] HDJ100,UZJ100 |
53744-60050 |
US $47.76 |
||
|
53783A
|
53783A
53783-60070 Insulator, Apron Front Fender, Rh[08.2002 - 05.2005] HDJ100 |
53783-60070 |
US $138.32 |
||
|
53784A
|
53784A
53784-60060 Insulator, Apron Front Fender, Lh[08.2002 - 09.2004] HDJ100..5F,5FC |
53784-60060 |
US $138.32 |
||
| replacement | |||||
|
53784A
|
53784A
53784-60061 Insulator, Apron Front Fender, Lh[08.2002 - 09.2004] HDJ100..5F,5FC |
53784-60061 |
US $134.53 |
||
|
53784A
|
53784A
53784-60061 Insulator, Apron Front Fender, Lh[10.2004 - 05.2005] HDJ100 |
53784-60061 |
US $134.53 |
||
|
55101
|
55101
55101-60A20 Panel Sub-Assy, DashDASH [07.2003 - 05.2005] HDJ100..LHD..5FC W(VGRS) |
55101-60A20 |
US $382.93 |
||
|
55101
|
55101
55101-6D240
Panel Sub-Assy, Dash
[07.2003 - 05.2005] HDJ100..LHD..5FC |
55101-6D240 |
— | ||
|
55210
|
55210
55210-60082 Insulator Assy, Dash PanelDASH PANEL [08.2002 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC) |
55210-60082 |
US $385.84 |
||
| replacement | |||||
|
55210
|
55210
55210-60084 Insulator Assy, Dash PanelDASH PANEL [08.2002 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC) |
55210-60084 |
US $387.30 |
||
|
55210
|
55210
55210-60083 Insulator Assy, Dash PanelDASH PANEL [08.2003 - 11.2004] HDJ100,UZJ100..LHD |
55210-60083 |
US $387.30 |
||
| replacement | |||||
|
55210
|
55210
55210-60084 Insulator Assy, Dash PanelDASH PANEL [08.2003 - 11.2004] HDJ100,UZJ100..LHD |
55210-60084 |
US $387.30 |
||
|
55210
|
55210
55210-60084 Insulator Assy, Dash PanelDASH PANEL [12.2004 - 05.2005] HDJ100,UZJ100..LHD |
55210-60084 |
US $387.30 |
||
|
55216A
|
55216A
55216-60010 Pad, Dash Panel Insulator, No.4DASH PANEL INSULATOR, NO.4 [08.2002 - 03.2004] HDJ100,UZJ100..LHD..(5F,5FC) |
55216-60010 |
US $38.73 |
||
| replacement | |||||
|
55216A
|
55216A
55216-60011 Pad, Dash Panel Insulator, No.4DASH PANEL INSULATOR, NO.4 [08.2002 - 03.2004] HDJ100,UZJ100..LHD..(5F,5FC) |
55216-60011 |
US $38.88 |
||
|
55216A
|
55216A
55216-60011 Pad, Dash Panel Insulator, No.4DASH PANEL INSULATOR, NO.4 [03.2004 - 05.2005] HDJ100,UZJ100..LHD |
55216-60011 |
US $38.88 |
||
|
55217A
|
55217A
55217-60010 Retainer, Dash Panel Silencer[12.2004 - 05.2005] HDJ100,UZJ100 NO.1 |
55217-60010 |
US $2.91 |
||
|
55217A
|
55217A
55217-60020 Retainer, Dash Panel Silencer[12.2004 - 05.2005] HDJ100,UZJ100 NO.2 |
55217-60020 |
US $3.06 |
||
|
55223A
|
55223A
55223-60231 Insulator, Dash Panel, OuterDASH PANEL, OUTER [08.2002 - 10.2004] HDJ100,UZJ100..LHD..(5F,5FC) |
55223-60231 |
US $139.78 |
||
| replacement | |||||
|
55223A
|
55223A
55223-60232 Insulator, Dash Panel, OuterDASH PANEL, OUTER [08.2002 - 10.2004] HDJ100,UZJ100..LHD..(5F,5FC) |
55223-60232 |
from US $146.72 |
||
|
55223A
|
55223A
55223-60232 Insulator, Dash Panel, OuterDASH PANEL, OUTER [11.2004 - 05.2005] HDJ100,UZJ100..LHD |
55223-60232 |
from US $146.72 |
||
|
55223B
|
55223B
55225-60040 Insulator, Dash Panel Heat, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
55225-60040 |
US $26.06 |
||
|
57104A
|
57104A
57104-60040 Member Sub-Assy, Front Cross[08.2002 - 11.2004] HDJ100,UZJ100..5F,5FC |
57104-60040 |
US $293.01 |
||
|
57211A
|
57211A
57211-60010 Bracket, Body Mounting, No.1 Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
57211-60010 |
US $32.91 |
||
|
57212A
|
57212A
57212-60010 Bracket, Body Mounting, No.1 Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
57212-60010 |
US $33.49 |
||
|
9010906294
|
9010906294
90109-06294 BOLT |
90109-06294 |
US $1.97 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9046705111
|
9046705111
90467-05111 Clip, No.2(For Cowl Side Trim) |
90467-05111 |
from US $1.10 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.29 |
||
|
9046710189
|
9046710189
90467-10189 CLIP |
90467-10189 |
US $3.94 |
||
|
9046713035
|
9046713035
90467-13035 Clip |
90467-13035 |
US $1.93 |
||
|
904670900801
|
904670900801
90467-09008-01 Clip(For Hood Insulator) |
90467-09008-01 |
from US $1.16 |
||
