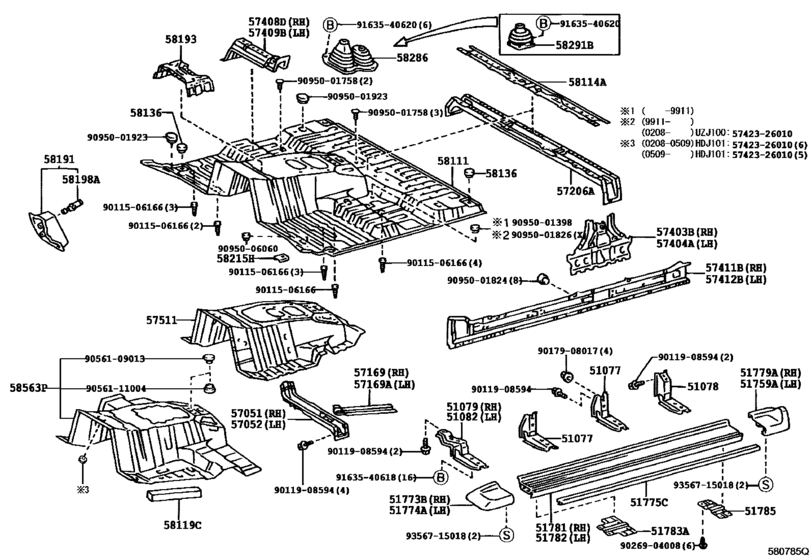

Front Floor Panel & Front Floor Member ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51077
|
51077
51077-60071 Bracket Sub-Assy, Side Step, No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
51077-60071 |
from US $48.49 |
||
|
51078
|
51078
51078-60061 Bracket Sub-Assy, Side Step, No.3[08.2002 - 05.2005] HDJ100,UZJ100 |
51078-60061 |
from US $55.73 |
||
|
51079
|
51079
51079-60071 Bracket Sub-Assy, Side Step[08.2002 - 05.2005] HDJ100,UZJ100 |
51079-60071 |
from US $59.49 |
||
|
51082
|
51082
51082-60021 Stay Sub-Assy, Side Step, No.1 Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
51082-60021 |
from US $59.49 |
||
|
51759A
|
51759A
51759-60070 Cover, Side Door Step Plate, Rear Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
51759-60070 |
from US $56.79 |
||
|
51773B
|
51773B
51773-60080 Cover, Side Door Step Plate, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
51773-60080 |
from US $52.36 |
||
|
51774A
|
51774A
51774-60080 Cover, Side Door Step Plate, Front Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
51774-60080 |
from US $51.98 |
||
|
51775C
|
51775C
51775-60051 Moulding, Side Door Step Plate, No.1[08.2002 - 12.2003] HDJ100,UZJ100 |
51775-60051 |
US $35.24 |
||
| replacement | |||||
|
51775C
|
51775C
51775-60052 Moulding, Side Door Step Plate, No.1[08.2002 - 12.2003] HDJ100,UZJ100 |
51775-60052 |
from US $34.03 |
||
|
51775C
|
51775C
51775-60052 Moulding, Side Door Step Plate, No.1[12.2003 - 05.2005] HDJ100,UZJ100 |
51775-60052 |
from US $34.03 |
||
|
51779A
|
51779A
51779-60070 Cover, Side Door Step Plate, Rear Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
51779-60070 |
from US $57.63 |
||
|
51781
|
51781
51781-60171 Panel, Step, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
51781-60171 |
from US $281.87 |
||
|
51782
|
51782
51782-60141 Panel, Step, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
51782-60141 |
from US $243.24 |
||
|
51783A
|
51783A
51783-60030 Gusset, Side Step Extension[08.2002 - 05.2005] HDJ100,UZJ100 |
51783-60030 |
US $16.31 |
||
|
51785
|
51785
51785-60010 Gusset, Step Bracket, No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
51785-60010 |
from US $4.66 |
||
|
57051
|
57051
57051-60040
Member Sub-Assy, Front Floor Cross, Rh
[08.2002 - 05.2005] HDJ100,UZJ100 |
57051-60040 |
— | ||
| replacement | |||||
|
57051
|
57051
57051-60050
Member Sub-Assy, Front Floor Cross, Rh
[08.2002 - 05.2005] HDJ100,UZJ100 |
57051-60050 |
— | ||
|
57051
|
57051
57051-60050
Member Sub-Assy, Front Floor Cross, Rh
[09.2005 -] HDJ100,UZJ100 |
57051-60050 |
— | ||
|
57052
|
57052
57052-60040
Member Sub-Assy, Front Floor Cross, Lh
[08.2002 - 05.2005] HDJ100,UZJ100 |
57052-60040 |
— | ||
|
57169
|
57169
57169-60010 Member, Front Floor, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
57169-60010 |
US $20.09 |
||
|
57169A
|
57169A
57169-60010 Member, Front Floor, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
57169-60010 |
US $20.09 |
||
|
57206A
|
57206A
57206-60100 Member Sub-Assy, Front Floor Cross, No.2[08.2002 - 05.2005] HDJ100..4FC,5F; HDJ100,UZJ100..5FC |
57206-60100 |
from US $281.14 |
||
|
57403B
|
57403B
57403-60031 Reinforce Sub-Assy, Floor Side, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
57403-60031 |
US $77.17 |
||
|
57404A
|
57404A
57404-60031 Reinforce Sub-Assy, Floor Side, Inner Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
57404-60031 |
from US $77.17 |
||
|
57408D
|
57408D
57408-60021 Member Sub-Assy, Front Floor Cross, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
57408-60021 |
US $80.08 |
||
|
57409B
|
57409B
57409-60020 Member Sub-Assy, Front Floor Cross, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
57409-60020 |
from US $26.94 |
||
|
57411B
|
57411B
57401-60080 Member, Floor Side, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
57401-60080 |
US $239.44 |
||
|
57412B
|
57412B
57402-60090 Member, Floor Side, Inner Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
57402-60090 |
US $241.70 |
||
|
57511
|
57511
58102-60080 Reinforcement, Front Floor, CenterFRONT FLOOR, CENTER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC |
58102-60080 |
US $266.45 |
||
|
58111
|
58111
58111-6A520 Pan, Front FloorFRONT FLOOR [08.2002 - 08.2003] HDJ100,UZJ100..LHD..5FC W(COOL BOX) |
58111-6A520 |
US $856.13 |
||
| replacements | |||||
|
58111
|
58111
58111-6A521 Pan, Front FloorFRONT FLOOR [08.2002 - 08.2003] HDJ100,UZJ100..LHD..5FC W(COOL BOX) |
58111-6A521 |
US $860.50 |
||
|
58111
|
58111
86286-60040
Bracket, Amplifier, No.2
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..5FC W(COOL BOX) |
86286-60040 |
— | ||
|
58111
|
58111
58111-6A521 Pan, Front FloorFRONT FLOOR [08.2003 - 05.2005] HDJ100,UZJ100..LHD..5FC W(COOL BOX) |
58111-6A521 |
US $860.50 |
||
|
58111
|
58111
58111-6A530 Pan, Front FloorFRONT FLOOR [08.2002 - 08.2003] HDJ100,UZJ100..LHD..5FC |
58111-6A530 |
US $856.13 |
||
| replacements | |||||
|
58111
|
58111
58111-6A531 Pan, Front FloorFRONT FLOOR [08.2002 - 08.2003] HDJ100,UZJ100..LHD..5FC |
58111-6A531 |
US $860.50 |
||
|
58111
|
58111
86286-60040
Bracket, Amplifier, No.2
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..5FC |
86286-60040 |
— | ||
|
58111
|
58111
58111-6A531 Pan, Front FloorFRONT FLOOR [08.2003 - 05.2005] HDJ100,UZJ100..LHD..5FC |
58111-6A531 |
US $860.50 |
||
|
58114A
|
58114A
58114-60040 Reinforcement, Front Floor Panel[08.2002 - 05.2005] HDJ100,UZJ100 |
58114-60040 |
US $87.36 |
||
|
58119C
|
58119C
58119-60050 Cushion, Front Floor[08.2002 - 05.2005] HDJ100 |
58119-60050 |
US $15.29 |
||
|
58136
|
58136
58136-60020 Cover, Front Floor Hole[08.2002 - 05.2005] HDJ100,UZJ100 W(SIDE STEP) |
58136-60020 |
US $8.24 |
||
|
58191
|
58191
58190-60120 Footrest, Front FloorFRONT FLOOR [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC) |
58190-60120 |
from US $52.55 |
||
|
58193
|
58193
58193-60031 Bracket, Instrument Panel Brace Mounting[08.2002 - 05.2005] HDJ100,UZJ100 |
58193-60031 |
from US $75.71 |
||
|
58198A
|
58198A
58198-53050 Clip, Footrest, No.1[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC) |
58198-53050 |
from US $4.54 |
||
|
58215H
|
58215H
58215-60020 Retainer, Front Floor[08.2002 - 08.2003] HDJ100,UZJ100 |
58215-60020 |
US $4.95 |
||
| replacement | |||||
|
58215H
|
58215H
58215-60021 Retainer, Front Floor[08.2002 - 08.2003] HDJ100,UZJ100 |
58215-60021 |
US $4.95 |
||
|
58215H
|
58215H
58215-60021 Retainer, Front Floor[08.2003 - 05.2005] HDJ100,UZJ100 |
58215-60021 |
US $4.95 |
||
|
58291B
|
58291B
58290-60080 Boot, Transfer Shift Lever[08.2002 - 05.2005] HDJ100,UZJ100..ATM |
58290-60080 |
US $57.23 |
||
|
58563P
|
58563P
58563-60031 Silencer, Front Floor[08.2002 - 05.2005] HDJ100..5F,5FC |
58563-60031 |
US $260.62 |
||
|
5742326010
|
5742326010
57423-26010 Clamp, Front Floor |
57423-26010 |
US $2.87 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.91 |
||
|
9011908594
|
9011908594
90119-08594 BOLT |
90119-08594 |
US $1.61 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9026904008
|
9026904008
90269-04008 RIVET |
90269-04008 |
from US $1.14 |
||
|
9056109013
|
9056109013
90561-09013 SPACER |
90561-09013 |
US $1.02 |
||
|
9056111004
|
9056111004
90561-11004 SPACER |
90561-11004 |
US $1.43 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.89 |
||
|
9095001758
|
9095001758
90950-01758 New Genuine Part |
90950-01758 |
US $1.97 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.92 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.96 |
||
|
9095001923
|
9095001923
90950-01923 PLUG HOLE |
90950-01923 |
US $4.12 |
||
|
9095006060
|
9095006060
90950-06060 New Genuine Part |
90950-06060 |
US $1.97 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
||
|
9163540620
|
9163540620
91635-40620 New Genuine Part |
91635-40620 |
US $1.08 |
||
|
9356715018
|
9356715018
93567-15018 BOLT |
93567-15018 |
from US $0.76 |
||
