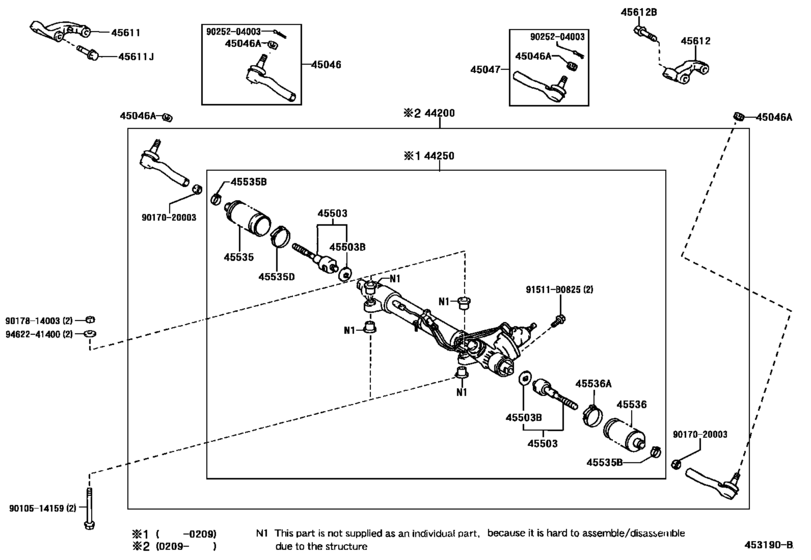

Front Steering Gear & Link ([08.2002 - ] (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-60100 Link Assy, Power SteeringPOWER STEERING [09.2002 - 05.2005] HDJ100,UZJ100..LHD |
44200-60100 |
US $1,674.40 |
||
| replacements | |||||
|
44200
|
44200
44250-60100 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [09.2002 - 05.2005] HDJ100,UZJ100..LHD |
44250-60100 |
from US $1,551.08 |
||
|
44200
|
44200
45046-69205 End Sub-Assy, Tie Rod, Rh[09.2002 - 05.2005] HDJ100,UZJ100..LHD |
45046-69205 |
from US $51.95 |
||
|
44200
|
44200
45047-69115 End Sub-Assy, Tie Rod, Lh[09.2002 - 05.2005] HDJ100,UZJ100..LHD |
45047-69115 |
from US $51.34 |
||
|
44200
|
44200
90170-20003 Nut[09.2002 - 05.2005] HDJ100,UZJ100..LHD |
90170-20003 |
from US $1.62 |
||
|
44200
|
44200
44200-60120
Link Assy, Power Steering
[09.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(*VGRS):REFER TO FIG 45-01 |
44200-60120 |
— | ||
| replacements | |||||
|
44200
|
44200
44250-60120 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [09.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(*VGRS):REFER TO FIG 45-01 |
44250-60120 |
from US $1,611.01 |
||
|
44200
|
44200
45046-69205 End Sub-Assy, Tie Rod, Rh[09.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(*VGRS):REFER TO FIG 45-01 |
45046-69205 |
from US $51.95 |
||
|
44200
|
44200
45047-69115 End Sub-Assy, Tie Rod, Lh[09.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(*VGRS):REFER TO FIG 45-01 |
45047-69115 |
from US $51.34 |
||
|
44200
|
44200
90170-20003 Nut[09.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(*VGRS):REFER TO FIG 45-01 |
90170-20003 |
from US $1.62 |
||
|
45046
|
45046
45046-69205 End Sub-Assy, Tie Rod, Rh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
45046-69205 |
from US $51.95 |
||
|
45046A
|
45046A
90171-16006 Nut, Castle(For Tie Rod End)[08.2002 - 05.2005] HDJ100,UZJ100 |
90171-16006 |
US $3.05 |
||
|
45047
|
45047
45047-69115 End Sub-Assy, Tie Rod, Lh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
45047-69115 |
from US $51.34 |
||
|
45503
|
45503
45503-69025 End Sub-Assy, Steering Rack[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
45503-69025 |
from US $158.82 |
||
|
45503B
|
45503B
90214-27002 Washer, Claw(For Steering Rack End)[08.2002 - 05.2005] HDJ100,UZJ100 OD=47 |
90214-27002 |
US $4.22 |
||
|
45535
|
45535
45535-60010 Boot, Steering Rack, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
45535-60010 |
from US $17.48 |
||
|
45535B
|
45535B
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.2002 - 05.2005] HDJ100,UZJ100 |
96134-52600 |
from US $2.79 |
||
|
45535D
|
45535D
90460-62006 Clamp(For Steering Rack Boot No.1)[08.2002 - 05.2005] HDJ100,UZJ100 |
90460-62006 |
from US $4.83 |
||
|
45536
|
45536
45535-60010 Boot, Steering Rack, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
45535-60010 |
from US $17.48 |
||
|
45536A
|
45536A
90460-62006 Clamp(For Steering Rack Boot No.1)[08.2002 - 05.2005] HDJ100,UZJ100 |
90460-62006 |
from US $4.83 |
||
|
45611
|
45611
45611-60120 Arm, Steering Knuckle, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
45611-60120 |
US $92.60 |
||
|
45611J
|
45611J
90105-14043 Bolt(For Steering Knuckle Arm Rh)[08.2002 - 05.2005] HDJ100,UZJ100 |
90105-14043 |
US $6.99 |
||
|
45612
|
45612
45612-60120 Arm, Steering Knuckle, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
45612-60120 |
from US $90.61 |
||
|
45612B
|
45612B
90105-14043 Bolt(For Steering Knuckle Arm Rh)[08.2002 - 05.2005] HDJ100,UZJ100 |
90105-14043 |
US $6.99 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.05 |
||
|
9010514159
|
9010514159
90105-14159 BOLT FLANGE |
90105-14159 |
US $8.42 |
||
|
9017020003
|
9017020003
90170-20003 Nut |
90170-20003 |
from US $1.62 |
||
|
9017814003
|
9017814003
90178-14003 NUT FLANGE |
90178-14003 |
from US $1.48 |
||
|
9025204003
|
9025204003
90252-04003 PIN |
90252-04003 |
from US $0.18 |
||
|
9462241400
|
9462241400
94622-41400 WASHER PLATE |
94622-41400 |
from US $1.37 |
||
