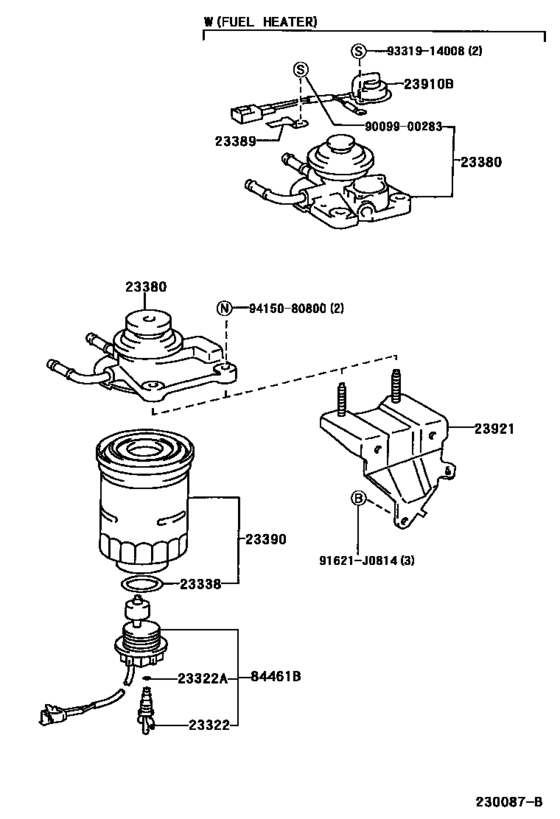

Fuel Filter ([01.1998 - ] (9801- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23322
|
23322
23388-64470 Plug, Drain(For Fuel Filter)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
23388-64470 |
from US $4.64 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
23344-54010 |
from US $1.54 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
23344-64010 |
from US $1.54 |
||
|
23380
|
23380
23380-17370
Cap Assy, Fuel Filter
[08.2002 - 05.2005] 1HDFTE..HDJ100..VX |
23380-17370 |
— | ||
| replacement | |||||
|
23380
|
23380
23380-17371 Cap Assy, Fuel Filter[08.2002 - 05.2005] 1HDFTE..HDJ100..VX |
23380-17371 |
from US $61.50 |
||
|
23380
|
23380
23380-17380
Cap Assy, Fuel Filter
[08.2002 - 05.2005] 1HDFTE..HDJ100 W(FUEL HEATER) |
23380-17380 |
— | ||
| replacement | |||||
|
23380
|
23380
23380-17381 Cap Assy, Fuel Filter[08.2002 - 05.2005] 1HDFTE..HDJ100 W(FUEL HEATER) |
23380-17381 |
from US $60.65 |
||
|
23389
|
23389
23389-17380 Clamp, Fuel Filter[08.2002 - 05.2005] 1HDFTE..HDJ100 |
23389-17380 |
US $2.48 |
||
|
23390
|
23390
23390-64480 Element Sub-Assy, Fuel Filter[08.2002 - 05.2005] 1HDFTE..HDJ100 |
23390-64480 |
from US $52.73 |
||
|
23910B
|
23910B
23910-17060 Heater Assy, Fuel[08.2002 - 05.2005] 1HDFTE..HDJ100 |
23910-17060 |
from US $93.37 |
||
|
23921
|
23921
23921-17050 Support, Fuel Filter[08.2002 - 05.2005] 1HDFTE..HDJ100 |
23921-17050 |
US $45.25 |
||
|
84461B
|
84461B
84461-28040
Switch, Level Warning
[08.2002 - 05.2005] HDJ100 |
84461-28040 |
— | ||
| replacement | |||||
|
84461B
|
84461B
84461-28041 Switch, Level Warning[08.2002 - 05.2005] HDJ100 |
84461-28041 |
from US $73.47 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.78 |
||
|
9009900283
|
9009900283
90099-00283 FUEL FILTER |
90099-00283 |
US $1.05 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.76 |
||
