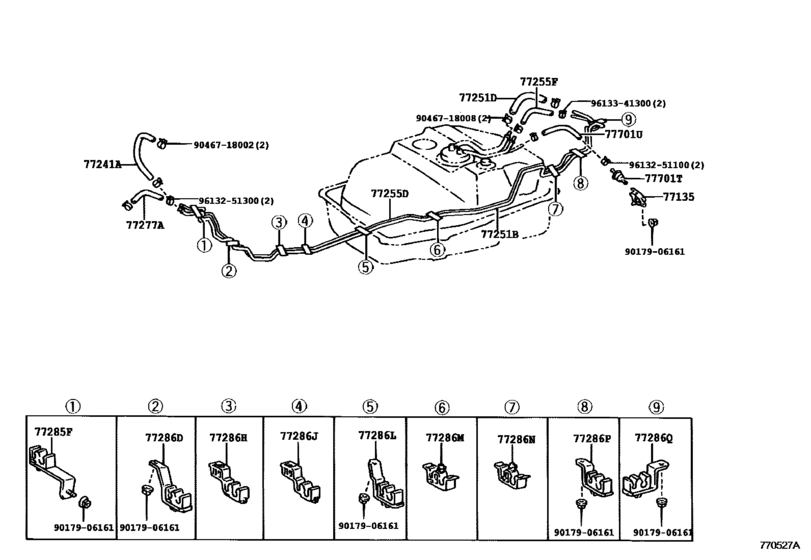

Fuel Tank & Tube ([01.1998 - ] FUEL TUBE (9801- )HDJ100) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77135
|
77135
77135-20080 Bracket, Check Valve[08.2002 - 05.2005] HDJ100 |
77135-20080 |
US $6.12 |
||
|
77241A
|
77241A
95332-12028 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.2002 - 05.2005] HDJ100 *H,L=280,ID=12 |
95332-12028 |
US $14.69 |
||
|
77251B
|
77251B
77251-60810
Tube, Fuel Main
[08.2002 - 05.2005] HDJ100 |
77251-60810 |
— | ||
|
77251D
|
77251D
95332-12030 Hose, Fuel, No.1 (For Main Tube, No.2)[08.2002 - 05.2005] HDJ100 *H,L=300,ID=12 |
95332-12030 |
US $15.23 |
||
|
77255D
|
77255D
77255-60810
Tube, Fuel Return
[08.2002 - 05.2005] HDJ100 |
77255-60810 |
— | ||
|
77255F
|
77255F
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.2002 - 05.2005] HDJ100 *H,L=240,ID=7.6 |
95333-08030 |
US $11.83 |
||
|
77277A
|
77277A
95333-08020
Hose, Lpg Injector
[08.2002 - 05.2005] HDJ100 *H,L=150,ID=7.6 |
95333-08020 |
— | ||
| replacement | |||||
|
77277A
|
77277A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.2002 - 05.2005] HDJ100 *H,L=150,ID=7.6 |
95337-08020 |
from US $5.56 |
||
|
77285F
|
77285F
77285-60270
Clamp, Fuel Tube, No.1
[08.2002 - 05.2005] HDJ100 |
77285-60270 |
— | ||
|
77286D
|
77286D
77285-60280
Clamp, Fuel Tube, No.2
[08.2002 - 05.2005] HDJ100 |
77285-60280 |
— | ||
|
77286H
|
77286H
77286-60090
Clamp, Fuel Tube, No.3
[08.2002 - 05.2005] HDJ100 |
77286-60090 |
— | ||
|
77286J
|
77286J
77286-60090
Clamp, Fuel Tube, No.3
[08.2002 - 05.2005] HDJ100 |
77286-60090 |
— | ||
|
77286L
|
77286L
77289-60090
Clamp, Fuel Tube, No.5
[08.2002 - 05.2005] HDJ100 |
77289-60090 |
— | ||
|
77286M
|
77286M
77298-60060
Clamp, Fuel Tube, No.6
[08.2002 - 05.2005] HDJ100 |
77298-60060 |
— | ||
|
77286N
|
77286N
77298-60060
Clamp, Fuel Tube, No.6
[08.2002 - 05.2005] HDJ100 |
77298-60060 |
— | ||
|
77286P
|
77286P
77299-60040
Clamp, Fuel Tube, No.8
[08.2002 - 05.2005] HDJ100 |
77299-60040 |
— | ||
|
77286Q
|
77286Q
77273-60130
Clamp, Fuel Tube, No.9
[08.2002 - 05.2005] HDJ100 |
77273-60130 |
— | ||
|
77701T
|
77701T
90917-10067 Valve, Check (For Main Fuel Tank)[08.2002 - 05.2005] HDJ100 |
90917-10067 |
from US $12.75 |
||
|
77701U
|
77701U
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.2002 - 05.2005] HDJ100 *H,L=150 |
95333-06020 |
— | ||
| replacement | |||||
|
77701U
|
77701U
95337-06020 Hose, Differential Pressure Control[08.2002 - 05.2005] HDJ100 *H,L=150 |
95337-06020 |
from US $10.21 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9046718002
|
9046718002
90467-18002
Clip(For Ventilation Hose)
|
90467-18002 |
— | ||
| replacement | |||||
|
9046718002
|
9046718002
90467-18008 Clip(For Water By-Pass Hose No.2) |
90467-18008 |
from US $1.08 |
||
|
9046718008
|
9046718008
90467-18008 Clip(For Water By-Pass Hose No.2) |
90467-18008 |
from US $1.08 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.46 |
||
|
9613341300
|
9613341300
96133-41300 Clip(For Air Hose No.6) |
96133-41300 |
US $1.61 |
||
