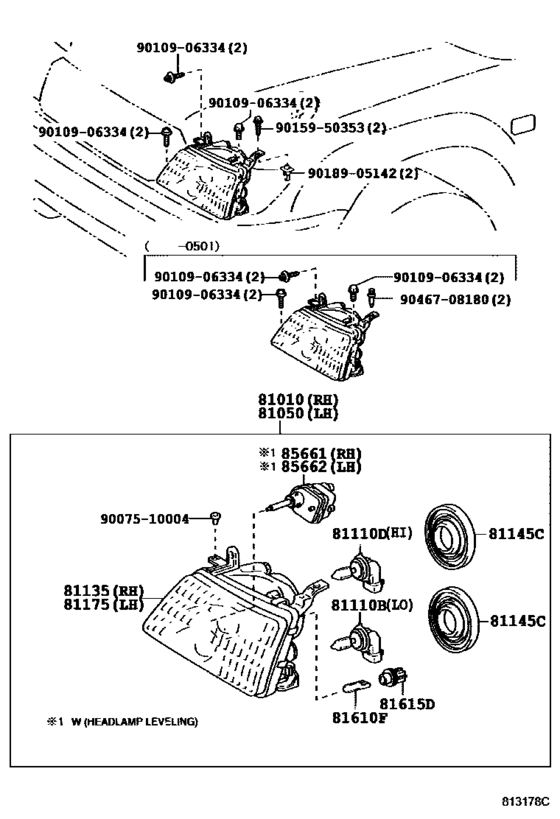

Headlamp ([01.1998 - 05.2005] (9801-0505)) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81010
|
81010
81010-60040 Headlamp Assy, W/clearance, RhW/CLEARANCE, RH [08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX |
81010-60040 |
US $583.86 |
||
| replacement | |||||
|
81010
|
81010
81010-60042
Headlamp Assy, W/clearance, Rh
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX |
81010-60042 |
— | ||
|
81010
|
81010
81010-60041
Headlamp Assy, W/clearance, Rh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81010-60041 |
— | ||
| replacement | |||||
|
81010
|
81010
81010-60042
Headlamp Assy, W/clearance, Rh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81010-60042 |
— | ||
|
81010
|
81010
81010-60060 Headlamp Assy, W/clearance, RhW/CLEARANCE, RH [08.2002 - 08.2003] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81010-60060 |
US $678.50 |
||
| replacement | |||||
|
81010
|
81010
81010-60062
Headlamp Assy, W/clearance, Rh
[08.2002 - 08.2003] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81010-60062 |
— | ||
|
81010
|
81010
81010-60061
Headlamp Assy, W/clearance, Rh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81010-60061 |
— | ||
| replacement | |||||
|
81010
|
81010
81010-60062
Headlamp Assy, W/clearance, Rh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81010-60062 |
— | ||
|
81050
|
81050
81050-60040 Headlamp Assy, W/clearance, LhW/CLEARANCE, LH [08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX |
81050-60040 |
US $583.86 |
||
| replacement | |||||
|
81050
|
81050
81050-60042 Headlamp Assy, W/clearance, Lh[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX |
81050-60042 |
US $473.31 |
||
|
81050
|
81050
81050-60041
Headlamp Assy, W/clearance, Lh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81050-60041 |
— | ||
| replacement | |||||
|
81050
|
81050
81050-60042 Headlamp Assy, W/clearance, Lh[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81050-60042 |
US $473.31 |
||
|
81050
|
81050
81050-60060 Headlamp Assy, W/clearance, LhW/CLEARANCE, LH [08.2002 - 08.2003] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81050-60060 |
US $678.50 |
||
| replacement | |||||
|
81050
|
81050
81050-60062
Headlamp Assy, W/clearance, Lh
[08.2002 - 08.2003] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81050-60062 |
— | ||
|
81050
|
81050
81050-60061
Headlamp Assy, W/clearance, Lh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81050-60061 |
— | ||
| replacement | |||||
|
81050
|
81050
81050-60062
Headlamp Assy, W/clearance, Lh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81050-60062 |
— | ||
|
81110B
|
81110B
90080-81041
Bulb(For Headlamp, No.1)
[05.2005 -] HDJ100,UZJ100..LHD 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[05.2005 -] HDJ100,UZJ100..LHD 12V 65W |
90981-13046 |
from US $15.88 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.2002 - 05.2005] HDJ100,UZJ100 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.88 |
||
|
81110D
|
81110D
90981-13047 Bulb (HB4)[08.2002 - 05.2005] HDJ100,UZJ100 12V 51W,HALOGEN |
90981-13047 |
from US $14.90 |
||
|
81135
|
81135
81019-60040
Unit Assy, Headlamp, Rh
[08.2002 - 08.2003] HDJ100..LHD..4FC; HDJ100,UZJ100..LHD..(5F,5FC)..VX |
81019-60040 |
— | ||
| replacement | |||||
|
81135
|
81135
81019-60042 Unit Assy, Headlamp, Rh[08.2002 - 08.2003] HDJ100..LHD..4FC; HDJ100,UZJ100..LHD..(5F,5FC)..VX |
81019-60042 |
US $364.61 |
||
|
81135
|
81135
81019-60041
Unit Assy, Headlamp, Rh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81019-60041 |
— | ||
| replacement | |||||
|
81135
|
81135
81019-60042 Unit Assy, Headlamp, Rh[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81019-60042 |
US $364.61 |
||
|
81135
|
81135
81019-60060
Unit Assy, Headlamp, Rh
[08.2002 - 08.2003] HDJ100..LHD..4FC W(HEADLAMP LEVELING); HDJ100,UZJ100..LHD..(5F,5FC) W(HEADLAMP LEVELING); HDJ100..RHD..4FC W(HEADLAMP LEVELING) & RH TRAFFIC SPEC; HDJ100,UZJ100..RHD..(5F,5FC) W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81019-60060 |
— | ||
| replacement | |||||
|
81135
|
81135
81019-60062 Unit Assy, Headlamp, Rh[08.2002 - 08.2003] HDJ100..LHD..4FC W(HEADLAMP LEVELING); HDJ100,UZJ100..LHD..(5F,5FC) W(HEADLAMP LEVELING); HDJ100..RHD..4FC W(HEADLAMP LEVELING) & RH TRAFFIC SPEC; HDJ100,UZJ100..RHD..(5F,5FC) W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81019-60062 |
US $349.22 |
||
|
81135
|
81135
81019-60061
Unit Assy, Headlamp, Rh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81019-60061 |
— | ||
| replacement | |||||
|
81135
|
81135
81019-60062 Unit Assy, Headlamp, Rh[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81019-60062 |
US $349.22 |
||
|
81135
|
81135
81130-60A90
Unit Assy, Headlamp, Rh
[05.2005 - 08.2006] HDJ100,UZJ100..LHD |
81130-60A90 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-60A92 Unit Assy, Headlamp, RhHEADLAMP, RH [05.2005 - 08.2006] HDJ100,UZJ100..LHD |
81130-60A92 |
US $321.20 |
||
|
81135
|
81135
81130-60A91
Unit Assy, Headlamp, Rh
[08.2006 - 09.2006] HDJ100,UZJ100..LHD |
81130-60A91 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-60A92 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2006 - 09.2006] HDJ100,UZJ100..LHD |
81130-60A92 |
US $321.20 |
||
|
81135
|
81135
81130-60A92 Unit Assy, Headlamp, RhHEADLAMP, RH [09.2006 -] HDJ100,UZJ100..LHD |
81130-60A92 |
US $321.20 |
||
|
81135
|
81135
81130-60B10
Unit Assy, Headlamp, Rh
[05.2005 - 07.2006] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81130-60B10 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-60B11 Unit Assy, Headlamp, Rh[05.2005 - 07.2006] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81130-60B11 |
US $507.24 |
||
|
81135
|
81135
81130-60B11 Unit Assy, Headlamp, Rh[08.2006 -] HDJ100,UZJ100 W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81130-60B11 |
US $507.24 |
||
|
81145C
|
81145C
90075-65006 Cover, Headlamp Back, No.1[01.1998 - 05.2005] HDJ100,UZJ100 |
90075-65006 |
from US $4.71 |
||
|
81175
|
81175
81059-60040
Unit Assy, Headlamp, Lh
[08.2002 - 08.2003] HDJ100..LHD..4FC; HDJ100,UZJ100..LHD..(5F,5FC)..VX |
81059-60040 |
— | ||
| replacement | |||||
|
81175
|
81175
81059-60042 Unit Assy, Headlamp, Lh[08.2002 - 08.2003] HDJ100..LHD..4FC; HDJ100,UZJ100..LHD..(5F,5FC)..VX |
81059-60042 |
US $350.95 |
||
|
81175
|
81175
81059-60041
Unit Assy, Headlamp, Lh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81059-60041 |
— | ||
| replacement | |||||
|
81175
|
81175
81059-60042 Unit Assy, Headlamp, Lh[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
81059-60042 |
US $350.95 |
||
|
81175
|
81175
81059-60060
Unit Assy, Headlamp, Lh
[08.2002 - 08.2003] HDJ100..LHD..4FC W(HEADLAMP LEVELING); HDJ100,UZJ100..LHD..(5F,5FC) W(HEADLAMP LEVELING); HDJ100..RHD..4FC W(HEADLAMP LEVELING) & RH TRAFFIC SPEC; HDJ100,UZJ100..RHD..(5F,5FC) W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81059-60060 |
— | ||
| replacement | |||||
|
81175
|
81175
81059-60062
Unit Assy, Headlamp, Lh
[08.2002 - 08.2003] HDJ100..LHD..4FC W(HEADLAMP LEVELING); HDJ100,UZJ100..LHD..(5F,5FC) W(HEADLAMP LEVELING); HDJ100..RHD..4FC W(HEADLAMP LEVELING) & RH TRAFFIC SPEC; HDJ100,UZJ100..RHD..(5F,5FC) W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81059-60062 |
— | ||
|
81175
|
81175
81059-60061
Unit Assy, Headlamp, Lh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81059-60061 |
— | ||
| replacement | |||||
|
81175
|
81175
81059-60062
Unit Assy, Headlamp, Lh
[08.2003 - 05.2005] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81059-60062 |
— | ||
|
81175
|
81175
81170-60A80 Unit Assy, Headlamp, LhHEADLAMP, LH [05.2005 - 08.2006] HDJ100,UZJ100..LHD |
81170-60A80 |
US $428.06 |
||
| replacement | |||||
|
81175
|
81175
81170-60A82 Unit Assy, Headlamp, LhHEADLAMP, LH [05.2005 - 08.2006] HDJ100,UZJ100..LHD |
81170-60A82 |
US $327.48 |
||
|
81175
|
81175
81170-60A81
Unit Assy, Headlamp, Lh
[08.2006 - 09.2006] HDJ100,UZJ100..LHD |
81170-60A81 |
— | ||
| replacement | |||||
|
81175
|
81175
81170-60A82 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2006 - 09.2006] HDJ100,UZJ100..LHD |
81170-60A82 |
US $327.48 |
||
|
81175
|
81175
81170-60A82 Unit Assy, Headlamp, LhHEADLAMP, LH [09.2006 -] HDJ100,UZJ100..LHD |
81170-60A82 |
US $327.48 |
||
|
81175
|
81175
81170-60B00
Unit Assy, Headlamp, Lh
[05.2005 - 07.2006] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81170-60B00 |
— | ||
| replacement | |||||
|
81175
|
81175
81170-60B01 Unit Assy, Headlamp, Lh[05.2005 - 07.2006] HDJ100,UZJ100..LHD W(HEADLAMP LEVELING); HDJ100,UZJ100..RHD W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81170-60B01 |
from US $511.06 |
||
|
81175
|
81175
81170-60B01 Unit Assy, Headlamp, Lh[08.2006 -] HDJ100,UZJ100 W(HEADLAMP LEVELING) & RH TRAFFIC SPEC |
81170-60B01 |
from US $511.06 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2002 - 05.2005] HDJ100,UZJ100 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2002 - 05.2005] HDJ100,UZJ100 12V 5W |
90080-81053 |
US $0.99 |
||
|
81615D
|
81615D
90075-60004 Cover, Headlamp Socket[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
90075-60004 |
from US $6.23 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[05.2005 -] HDJ100,UZJ100 |
90075-60077 |
from US $6 |
||
|
85661
|
85661
85661-12010 Motor, Headlamp Leveling, Rh[05.2005 - 07.2006] HDJ100,UZJ100 |
85661-12010 |
US $62.33 |
||
|
85661
|
85661
85661-22010 Motor, Headlamp Leveling, Rh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
85661-22010 |
US $224.22 |
||
|
85662
|
85662
85661-12010 Motor, Headlamp Leveling, Rh[05.2005 - 07.2006] HDJ100,UZJ100 |
85661-12010 |
US $62.33 |
||
|
85662
|
85662
85661-22010 Motor, Headlamp Leveling, Rh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
85661-22010 |
US $224.22 |
||
|
9007510004
|
9007510004
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
from US $0.89 |
||
|
9010906334
|
9010906334
90109-06334 BOLT |
90109-06334 |
from US $0.67 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.65 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.74 |
||
|
9046708180
|
9046708180
90467-08180 Clip(For Front Bumper Retainer) |
90467-08180 |
from US $1.35 |
||
