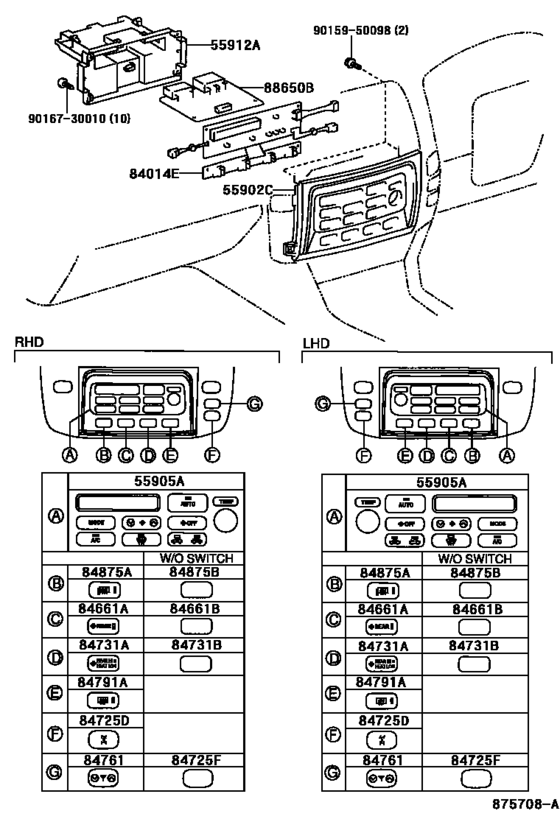

Heating & Air Conditioning - Control & Air Duct ([08.2002 - ] FRONT HEATER CONTROL (0208- )VX) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55902C
|
55902C
55902-60110 Panel Sub-Assy, Air ConditionerAIR CONDITIONER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
55902-60110 |
US $267.63 |
||
|
55905A
|
55905A
55905-60780 Knob, Heater ControlHEATER CONTROL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
55905-60780 |
US $81.80 |
||
|
55912A
|
55912A
55912-60150 Housing, Heater Control[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
55912-60150 |
US $12.93 |
||
|
84014E
|
84014E
84014-60190 Board Sub-Assy, Printed Wire IntegrationPRINTED WIRE INTEGRATION [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
84014-60190 |
US $557.38 |
||
|
84661A
|
84661A
84661-60080 Knob, Cooler Control Switch[08.2002 - 05.2005] HDJ100,UZJ100..VX |
84661-60080 |
US $9.73 |
||
|
84661B
|
84661B
84656-60070
Bezel, Switch
[08.2002 - 05.2005] HDJ100,UZJ100 |
84656-60070 |
— | ||
|
84725D
|
84725D
84725-60090 Knob, Differential Lock Switch[08.2002 - 05.2005] HDJ100,UZJ100 |
84725-60090 |
from US $9.63 |
||
|
84725F
|
84725F
84656-60080 Bezel, SwitchSWITCH [08.2002 - 05.2005] HDJ100,UZJ100 |
84656-60080 |
US $8.53 |
||
|
84731A
|
84731A
84731-60020 Knob, Heater Blower Switch[08.2002 - 05.2005] HDJ100,UZJ100 |
84731-60020 |
US $5.57 |
||
|
84731B
|
84731B
84656-60070
Bezel, Switch
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
84656-60070 |
— | ||
|
84761
|
84761
84761-60020
Knob, Antenna Switch
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
84761-60020 |
— | ||
|
84791A
|
84791A
84791-60040 Knob, Defogger Time SwitchDEFOGGER TIME SWITCH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC) |
84791-60040 |
US $6.12 |
||
|
84875A
|
84875A
84875-60030
Knob, Outer Mirror Switch
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
84875-60030 |
— | ||
|
88650B
|
88650B
88650-60800
Amplifier Assy, Airconditioner
[08.2002 - 05.2005] HDJ100..(5F,5FC)..VX MARK = 88650-60800 |
88650-60800 |
— | ||
|
88650B
|
88650B
88650-60830
Amplifier Assy, Airconditioner
[08.2002 - 05.2005] HDJ100..(5F,5FC)..VX MARK = 88650-60830 |
88650-60830 |
— | ||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
