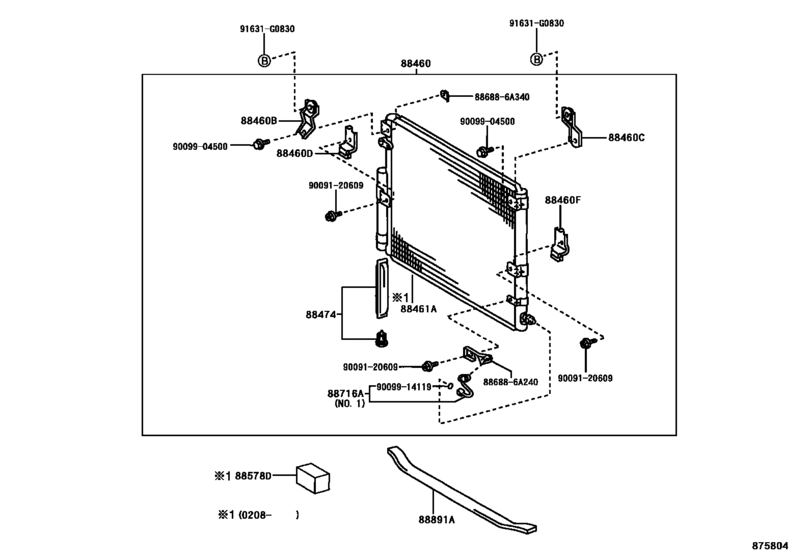

Heating & Air Conditioning - Cooler Piping ([01.1998 - ] CONDENSER(MAKER OPTION,SINGLE) (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-60262 Condenser Assy, Cooler[08.2002 - 05.2005] HDJ100,UZJ100 |
88460-60262 |
US $773.14 |
||
|
88460
|
88460
88460-60903 Condenser Assy, Cooler[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER) |
88460-60903 |
from US $719.91 |
||
|
88460B
|
88460B
88688-60770
Bracket, Cooler Condenser, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-60770 |
— | ||
| replacements | |||||
|
88460B
|
88460B
88469-16040
Insulator, Cooler Condenser Mounting
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88469-16040 |
— | ||
|
88460B
|
88460B
88688-6A220
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-6A220 |
— | ||
|
88460B
|
88460B
88897-60070
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88897-60070 |
— | ||
|
88460B
|
88460B
88688-6A420
Bracket, Cooler Condenser, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88688-6A420 |
— | ||
| replacements | |||||
|
88460B
|
88460B
88469-16040
Insulator, Cooler Condenser Mounting
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88469-16040 |
— | ||
|
88460B
|
88460B
88688-6A430
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88688-6A430 |
— | ||
|
88460B
|
88460B
88897-60070
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88897-60070 |
— | ||
|
88460C
|
88460C
88688-60780
Bracket, Cooler Condenser, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-60780 |
— | ||
| replacements | |||||
|
88460C
|
88460C
88469-16040
Insulator, Cooler Condenser Mounting
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88469-16040 |
— | ||
|
88460C
|
88460C
88688-6A210
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-6A210 |
— | ||
|
88460C
|
88460C
88897-60070
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88897-60070 |
— | ||
|
88460C
|
88460C
88688-60851
Bracket, Cooler Condenser, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88688-60851 |
— | ||
| replacements | |||||
|
88460C
|
88460C
88469-16040
Insulator, Cooler Condenser Mounting
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88469-16040 |
— | ||
|
88460C
|
88460C
88688-6A261
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88688-6A261 |
— | ||
|
88460C
|
88460C
88897-60070
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88897-60070 |
— | ||
|
88460D
|
88460D
88688-60790
Bracket, Cooler Condenser, No.3
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-60790 |
— | ||
| replacements | |||||
|
88460D
|
88460D
88688-6A230
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-6A230 |
— | ||
|
88460D
|
88460D
88897-60060
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88897-60060 |
— | ||
|
88460F
|
88460F
88688-60800
Bracket, Cooler Condenser, No.4
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-60800 |
— | ||
| replacements | |||||
|
88460F
|
88460F
88688-6A200
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88688-6A200 |
— | ||
|
88460F
|
88460F
88897-60060
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88897-60060 |
— | ||
|
88460F
|
88460F
88688-6A190
Bracket, Cooler Condenser, No.4
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88688-6A190 |
— | ||
| replacements | |||||
|
88460F
|
88460F
88688-6A470
Bracket, Cooler Diaphragm
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88688-6A470 |
— | ||
|
88460F
|
88460F
88897-60060
Valve, Cooler Magnet
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88897-60060 |
— | ||
|
88461A
|
88461A
88461-60032 Core, Cooler Condenser[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88461-60032 |
US $773.14 |
||
|
88461A
|
88461A
88461-60052 Core, Cooler Condenser[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AIR CONDITIONER) |
88461-60052 |
from US $550.41 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88474-17010 |
from US $60.10 |
||
|
88578D
|
88578D
88578-60190
Packing, Cooler Pipe, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
88578-60190 |
— | ||
|
88716A
|
88716A
88716-6A850 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ100,UZJ100 NO.1 |
88716-6A850 |
from US $34.83 |
||
|
88716A
|
88716A
88726-60421 Pipe, Cooler Refrigerant Liquid, A[07.2003 - 05.2005] HDJ100..5FC W(SINGLE AIR CONDITIONER),NO.2 |
88726-60421 |
US $83.64 |
||
|
88716A
|
88716A
88726-60430
Pipe, Cooler Refrigerant Liquid, A
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
88726-60430 |
— | ||
|
88716A
|
88716A
88726-60462 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER) |
88726-60462 |
from US $77.63 |
||
|
88716A
|
88716A
88726-60671 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ100,UZJ100..VX W(COOL BOX & DUAL AIR CONDITIONER) |
88726-60671 |
from US $133.25 |
||
|
88891A
|
88891A
88578-60100
Packing A (For Cooler)
[08.2002 - 05.2005] HDJ100,UZJ100 |
88578-60100 |
— | ||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
886886A240
|
886886A240
88688-6A240
Bracket, Cooler Diaphragm
|
88688-6A240 |
— | ||
|
886886A340
|
886886A340
88688-6A340
Bracket, Cooler Diaphragm
|
88688-6A340 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009904500
|
9009904500
90099-04500 New Genuine Part |
90099-04500 |
US $1.46 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
