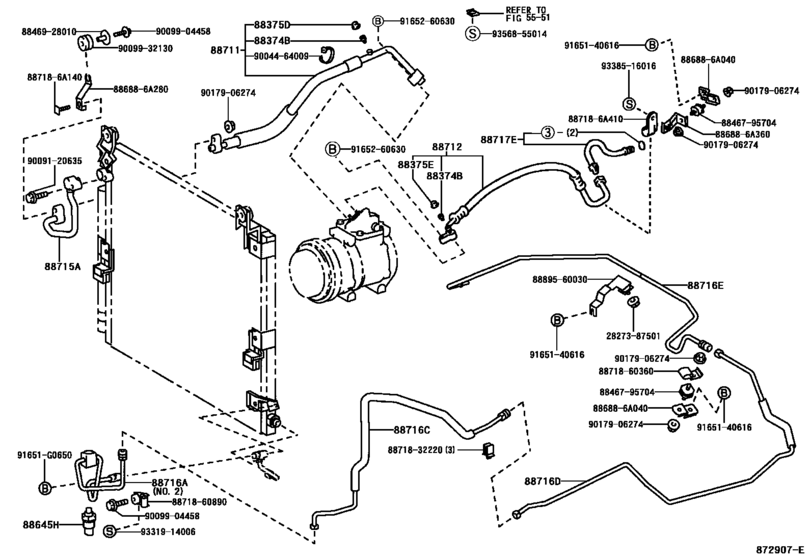

Heating & Air Conditioning - Cooler Piping ([01.1998 - ] FRONT(DEALER OPTION,SINGLE) (9801- )HDJ100..LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[08.2002 - 08.2003] HDJ100,UZJ100 |
88374-30010 |
from US $3.08 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[08.2002 - 08.2003] HDJ100,UZJ100 |
88375-30280 |
from US $0.98 |
||
|
88375E
|
88375E
88375-30290 Cap, Service Valve (For Cooler Pipe)[08.2002 - 08.2003] HDJ100,UZJ100 |
88375-30290 |
from US $0.87 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[08.2002 - 05.2005] HDJ100,UZJ100 |
88645-34010 |
from US $32.51 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[08.2002 - 05.2005] HDJ100,UZJ100 |
88645-04040 |
US $120.41 |
||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER) |
88645-60030 |
from US $85.26 |
||
|
88711
|
88711
88711-60431 Hose, Cooler Refrigerant Discharge, No.1[08.2002 - 05.2005] HDJ100 |
88711-60431 |
from US $184.49 |
||
|
88712
|
88712
88704-60240 Hose, Cooler Refrigerant Suction, No.1[07.2003 - 05.2005] HDJ100..LHD..5FC W(DUAL AIR CONDITIONER) OR W(COOL BOX & SINGLE AIR CONDITIONER) |
88704-60240 |
US $221.31 |
||
|
88712
|
88712
88712-6A160
Hose, Cooler Refrigerant Suction, No.1
[07.2003 - 08.2003] HDJ100..LHD..5FC |
88712-6A160 |
— | ||
|
88715A
|
88715A
88715-60141
Pipe, Cooler Refrigerant Discharge, A
[08.2002 - 08.2003] HDJ100 |
88715-60141 |
— | ||
|
88716A
|
88716A
88716-6A850 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ100,UZJ100 NO.1 |
88716-6A850 |
from US $34.83 |
||
|
88716A
|
88716A
88726-60421 Pipe, Cooler Refrigerant Liquid, A[07.2003 - 05.2005] HDJ100..5FC W(SINGLE AIR CONDITIONER),NO.2 |
88726-60421 |
US $83.64 |
||
|
88716A
|
88716A
88726-60430
Pipe, Cooler Refrigerant Liquid, A
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
88726-60430 |
— | ||
|
88716A
|
88716A
88726-60462 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER) |
88726-60462 |
from US $77.63 |
||
|
88716A
|
88716A
88726-60671 Pipe, Cooler Refrigerant Liquid, A[08.2002 - 05.2005] HDJ100,UZJ100..VX W(COOL BOX & DUAL AIR CONDITIONER) |
88726-60671 |
from US $133.25 |
||
|
88716C
|
88716C
88726-60521 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
88726-60521 |
US $168.90 |
||
|
88716C
|
88716C
88726-60731 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.2002 - 05.2005] HDJ100,UZJ100..LHD W(SINGLE AIR CONDITIONER) |
88726-60731 |
US $145.60 |
||
|
88716E
|
88716E
88716-6A840
Pipe, Cooler Refrigerant Liquid, E
[08.2002 - 05.2005] HDJ100..LHD |
88716-6A840 |
— | ||
|
88717E
|
88717E
88717-6A280
Pipe, Cooler Refrigerant Suction, E
[08.2002 - 08.2003] HDJ100..LHD |
88717-6A280 |
— | ||
|
91651G0650
|
91651G0650
91651-G0650
New Genuine Part
|
91651-G0650 |
— | ||
|
886886A040
|
886886A040
88688-6A040
Bracket, Cooler Diaphragm
|
88688-6A040 |
— | ||
| replacement | |||||
|
886886A040
|
886886A040
88688-6A041
Bracket, Cooler Diaphragm
|
88688-6A041 |
— | ||
|
886886A280
|
886886A280
88688-6A280
Bracket, Cooler Diaphragm
|
88688-6A280 |
— | ||
|
886886A360
|
886886A360
88688-6A360
Bracket, Cooler Diaphragm
|
88688-6A360 |
— | ||
|
887186A140
|
887186A140
88718-6A140
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A140 |
— | ||
|
887186A410
|
887186A410
88718-6A410
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A410 |
— | ||
|
2827387501
|
2827387501
28273-87501
New Genuine Part
|
28273-87501 |
— | ||
|
8846795704
|
8846795704
88467-95704 Cushion, Cooler Condenser, No.1 |
88467-95704 |
US $3.72 |
||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.43 |
||
|
8871860360
|
8871860360
88718-60360
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60360 |
— | ||
|
8871860890
|
8871860890
88718-60890
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60890 |
— | ||
|
8889560030
|
8889560030
88895-60030
Holder, Fuse
|
88895-60030 |
— | ||
|
9004464009
|
9004464009
90044-64009 CLAMP |
90044-64009 |
US $1.79 |
||
|
9009120635
|
9009120635
90091-20635
New Genuine Part
|
90091-20635 |
— | ||
|
9009904458
|
9009904458
90099-04458
New Genuine Part
|
90099-04458 |
— | ||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $0.87 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
