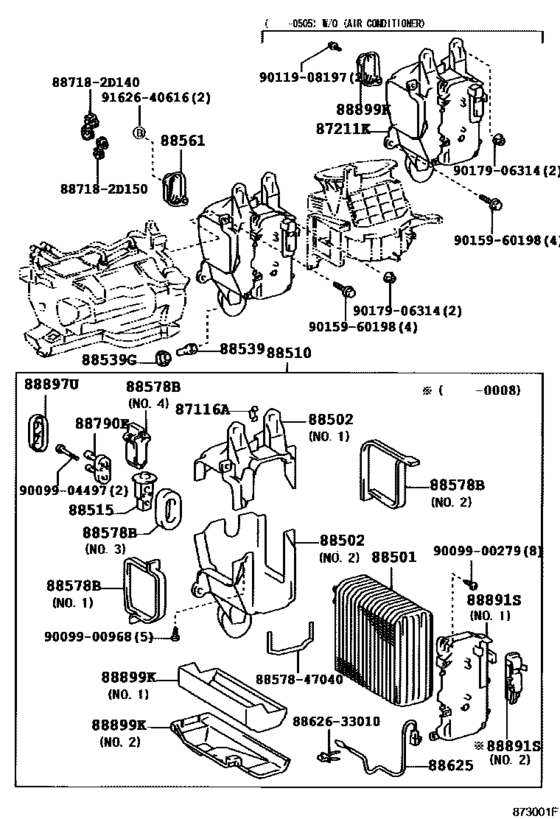

Heating & Air Conditioning - Cooler Unit ([01.1998 - ] FRONT (9801- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
87116-14010 |
— | ||
|
88501
|
88501
88501-60190 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
88501-60190 |
US $573.06 |
||
|
88502
|
88502
88502-60090
Case Sub-Assy, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD NO.1 |
88502-60090 |
— | ||
|
88502
|
88502
88502-60100
Case Sub-Assy, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD NO.2 |
88502-60100 |
— | ||
|
88502
|
88502
88502-60120
Case Sub-Assy, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
88502-60120 |
— | ||
|
88510
|
88510
88510-6A100
Unit Assy, Cooler
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
88510-6A100 |
— | ||
|
88515
|
88515
88515-60120 Valve, Cooler Expansion[07.2003 - 04.2004] HDJ100..5FC |
88515-60120 |
from US $123.90 |
||
|
88515
|
88515
88515-60190 Valve, Cooler Expansion[04.2004 - 05.2005] HDJ100,UZJ100 |
88515-60190 |
from US $100.30 |
||
|
88539
|
88539
88539-60080 Hose, Cooler Unit Drain, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
88539-60080 |
from US $0.60 |
||
|
88539G
|
88539G
90480-26022 Grommet (For Cooler Unit)[08.2002 - 05.2005] HDJ100,UZJ100 |
90480-26022 |
US $2.45 |
||
|
88561
|
88561
88899-60120
Cover, Cooler Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
88899-60120 |
— | ||
|
88578B
|
88578B
88578-60130 Packing, Cooling Unit, No.1[08.2002 - 05.2005] HDJ100,UZJ100 NO.1 |
88578-60130 |
US $8.21 |
||
|
88578B
|
88578B
88578-60140
Packing, Cooling Unit, No.1
[08.2002 - 05.2005] HDJ100,UZJ100 NO.2 |
88578-60140 |
— | ||
|
88578B
|
88578B
88578-60150 Packing, Cooling Unit, No.1[08.2002 - 05.2005] HDJ100,UZJ100 NO.3 |
88578-60150 |
from US $8.21 |
||
|
88578B
|
88578B
88578-60160 Packing, Cooling Unit, No.1[08.2002 - 05.2005] HDJ100,UZJ100 NO.4 |
88578-60160 |
US $15.90 |
||
|
88625
|
88625
88625-47011 Thermistor, Cooler, No.1[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
88625-47011 |
from US $12.75 |
||
|
88790E
|
88790E
88710-6A210 Tube & Accessory Assy, Airconditioner[08.2002 - 05.2005] HDJ100,UZJ100 |
88710-6A210 |
US $80.08 |
||
|
88891S
|
88891S
88891-60080
Cover, Cooler, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..LHD NO.1 |
88891-60080 |
— | ||
|
88897U
|
88897U
88897-60050
Pipe, Aspirator
[08.2002 - 05.2005] HDJ100,UZJ100 |
88897-60050 |
— | ||
|
88899K
|
88899K
88899-60220
Plate, Cover
[08.2002 - 05.2005] HDJ100,UZJ100..VX NO.1; HDJ100..STD W(AIR CONDITIONER),NO.1 |
88899-60220 |
— | ||
|
88899K
|
88899K
88899-60240
Plate, Cover
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX NO.2; HDJ100..STD W(AIR CONDITIONER),NO.2 |
88899-60240 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.57 |
||
|
8857847040
|
8857847040
88578-47040
Paking, Cooler Air Duct
|
88578-47040 |
— | ||
|
8862633010
|
8862633010
88626-33010
Holder, Thermistor
|
88626-33010 |
— | ||
|
9009900279
|
9009900279
90099-00279
New Genuine Part
|
90099-00279 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
9009904497
|
9009904497
90099-04497 BOLT |
90099-04497 |
US $5.02 |
||
|
9011908197
|
9011908197
90119-08197 New Genuine Part |
90119-08197 |
US $3.05 |
||
|
9015960198
|
9015960198
90159-60198 New Genuine Part |
90159-60198 |
US $0.83 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.78 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
