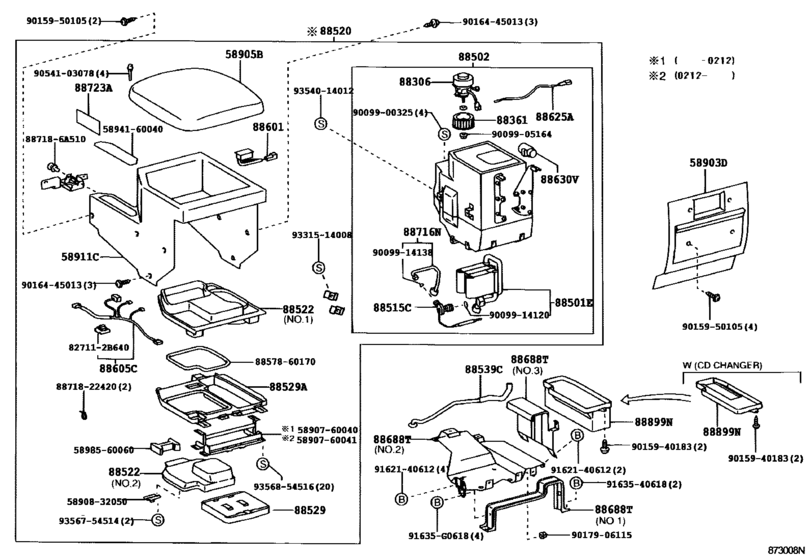

Heating & Air Conditioning - Cooler Unit ([01.2000 - ] COOL BOX (0001- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58903D
|
58903D
58903-60010-A1 Panel Sub-Assy, Console Rear End[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
58903-60010-A1 |
from US $220.78 |
||
|
58903D
|
58903D
58903-60010-B2 Panel Sub-Assy, Console Rear End[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
58903-60010-B2 |
US $209.66 |
||
|
58905B
|
58905B
58905-60071-A1 Door Sub-Assy, Console Compartment[12.2002 - 05.2005] HDJ100,UZJ100..VX W(VINYL LID),IVORY,TRIM0# |
58905-60071-A1 |
from US $378.56 |
||
|
58905B
|
58905B
58905-60071-B2
Door Sub-Assy, Console Compartment
[12.2002 - 05.2005] HDJ100,UZJ100..VX W(VINYL LID),STONE,TRIM1# |
58905-60071-B2 |
— | ||
|
58905B
|
58905B
58905-60081-A1 Door Sub-Assy, Console Compartment[12.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER LID),IVORY,TRIM0# |
58905-60081-A1 |
US $915.53 |
||
|
58905B
|
58905B
58905-60081-B1 Door Sub-Assy, Console Compartment[12.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER LID),STONE,TRIM1# |
58905-60081-B1 |
US $872.14 |
||
|
58911C
|
58911C
58911-60090-A1
Panel, Box, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
58911-60090-A1 |
— | ||
|
58911C
|
58911C
58911-60090-B2 Panel, Box, No.1BOX, NO.1(FOR COOL BOX) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
58911-60090-B2 |
US $311.58 |
||
|
88306
|
88306
88550-60050 Motor Sub-Assy, Cooler Blower, No.1[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
88550-60050 |
US $260.62 |
||
| replacement | |||||
|
88306
|
88306
88550-60090 Motor Sub-Assy, Cooler Blower, No.1[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
88550-60090 |
from US $175.85 |
||
|
88306
|
88306
88550-60090 Motor Sub-Assy, Cooler Blower, No.1[03.2007 -] HDJ100,UZJ100..LHD |
88550-60090 |
from US $175.85 |
||
|
88361
|
88361
87105-87004
Fan, Cooler Blower, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
87105-87004 |
— | ||
|
88501E
|
88501E
88501-60210
Evapolator Sub-Assy, Cooler (Cool Box)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
88501-60210 |
— | ||
|
88502
|
88502
88502-60090
Case Sub-Assy, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD NO.1 |
88502-60090 |
— | ||
|
88502
|
88502
88502-60100
Case Sub-Assy, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD NO.2 |
88502-60100 |
— | ||
|
88502
|
88502
88502-60120
Case Sub-Assy, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
88502-60120 |
— | ||
|
88515C
|
88515C
88515-60090
Valve, Cooling Box Expansion
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
88515-60090 |
— | ||
|
88520
|
88520
88520-60131-A1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER LID),IVORY,TRIM0# |
88520-60131-A1 |
— | ||
| replacement | |||||
|
88520
|
88520
88520-60132-A1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER LID),IVORY,TRIM0# |
88520-60132-A1 |
— | ||
|
88520
|
88520
88520-60131-B1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER LID),STONE,TRIM1# |
88520-60131-B1 |
— | ||
| replacement | |||||
|
88520
|
88520
88520-60132-B1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER LID),STONE,TRIM1# |
88520-60132-B1 |
— | ||
|
88520
|
88520
88520-60132-A1
Box Assy, Cooling
[03.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER LID),IVORY,TRIM0# |
88520-60132-A1 |
— | ||
|
88520
|
88520
88520-60132-B1
Box Assy, Cooling
[03.2007 - 08.2007] HDJ100,UZJ100..LHD W(LEATHER LID),STONE,TRIM1# |
88520-60132-B1 |
— | ||
|
88520
|
88520
88520-60221-A1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(VYNYL LID),IVORY,TRIM0# |
88520-60221-A1 |
— | ||
| replacement | |||||
|
88520
|
88520
88520-60222-A1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(VYNYL LID),IVORY,TRIM0# |
88520-60222-A1 |
— | ||
|
88520
|
88520
88520-60221-B1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(VYNYL LID),STONE,TRIM1# |
88520-60221-B1 |
— | ||
| replacement | |||||
|
88520
|
88520
88520-60222-B1
Box Assy, Cooling
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(VYNYL LID),STONE,TRIM1# |
88520-60222-B1 |
— | ||
|
88520
|
88520
88520-60222-A1
Box Assy, Cooling
[03.2007 - 08.2007] HDJ100,UZJ100..LHD W(VYNYL LID),IVORY,TRIM0# |
88520-60222-A1 |
— | ||
|
88520
|
88520
88520-60222-B1
Box Assy, Cooling
[03.2007 - 08.2007] HDJ100,UZJ100..LHD W(VYNYL LID),STONE,TRIM1# |
88520-60222-B1 |
— | ||
|
88522
|
88522
88522-60030
Door, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX NO.1 |
88522-60030 |
— | ||
|
88522
|
88522
88522-60060
Door, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
88522-60060 |
— | ||
| replacement | |||||
|
88522
|
88522
88522-60061
Door, Cooling Unit
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
88522-60061 |
— | ||
|
88522
|
88522
88522-60061
Door, Cooling Unit
[03.2007 -] HDJ100,UZJ100..LHD NO.2 |
88522-60061 |
— | ||
|
88529
|
88529
88529-60030
Tray, Cooling Box
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
88529-60030 |
— | ||
|
88529A
|
88529A
88899-60190
Tray, Cooling Box
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
88899-60190 |
— | ||
|
88539C
|
88539C
88539-60160
Hose, Cooler Unit Drain, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..VX REAR |
88539-60160 |
— | ||
|
88539C
|
88539C
88539-60180
Hose, Cooler Unit Drain, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..VX COOL BOX SIDE |
88539-60180 |
— | ||
|
88601
|
88601
88601-60040
Switch Sub-Assy, Cooler Control
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
88601-60040 |
— | ||
|
88605C
|
88605C
88605-6A020
Harness Sub-Assy, Cooler Wiring, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
88605-6A020 |
— | ||
|
88625A
|
88625A
88625-47011 Thermistor, Cooler, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX REAR |
88625-47011 |
from US $12.75 |
||
|
88625A
|
88625A
88625-60070 Thermistor, Cooler No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX COOL BOX SIDE |
88625-60070 |
US $7.69 |
||
|
88630V
|
88630V
88630-95702
Relay, Heater Radiator
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
88630-95702 |
— | ||
|
88688T
|
88688T
88688-60720
Bracket (For Cool Box)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX NO.1 |
88688-60720 |
— | ||
|
88688T
|
88688T
88688-60761
Bracket (For Cool Box)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX NO.2 |
88688-60761 |
— | ||
|
88688T
|
88688T
88688-6A110
Bracket (For Cool Box)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
88688-6A110 |
— | ||
|
88716N
|
88716N
88716-6A870 Pipe, Cooler Refrigerant Liquid, NCOOLER REFRIGERANT LIQUID, N [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
88716-6A870 |
US $40.19 |
||
|
88723A
|
88723A
88723-28150
Label, Cooler Service Caution
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
88723-28150 |
— | ||
|
88899N
|
88899N
88899-60150
Plate, Cover
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(CD AUTO CHANGER) |
88899-60150 |
— | ||
| replacement | |||||
|
88899N
|
88899N
88899-60310
Plate, Cover
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(CD AUTO CHANGER) |
88899-60310 |
— | ||
|
88899N
|
88899N
88899-60160
Plate, Cover
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
88899-60160 |
— | ||
|
88899N
|
88899N
88899-60310
Plate, Cover
[05.2005 -] HDJ100,UZJ100..LHD W(CD AUTO CHANGER) |
88899-60310 |
— | ||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.97 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.97 |
||
|
887186A510
|
887186A510
88718-6A510
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A510 |
— | ||
|
5890760040
|
5890760040
58907-60040 Hinge Sub-Assy, Console Compartment Door |
58907-60040 |
from US $32.15 |
||
|
5890760041
|
5890760041
58907-60041 Hinge Sub-Assy, Console Compartment Door |
58907-60041 |
US $66.39 |
||
|
5890832050
|
5890832050
58908-32050 Lock Sub-Assy, Console Compartment Door |
58908-32050 |
US $11.65 |
||
|
5894160040
|
5894160040
58941-60040
Cover, Parking Brake Hole
|
58941-60040 |
— | ||
|
5898560060
|
5898560060
58985-60060 Retainer, Console Box |
58985-60060 |
US $12.23 |
||
|
8857860170
|
8857860170
88578-60170
Paking, Cooler Air Duct
|
88578-60170 |
— | ||
|
8871822420
|
8871822420
88718-22420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-22420 |
— | ||
|
9009900325
|
9009900325
90099-00325
New Genuine Part
|
90099-00325 |
— | ||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.03 |
||
|
9009914138
|
9009914138
90099-14138 ORING |
90099-14138 |
US $5.56 |
||
|
9015940183
|
9015940183
90159-40183 SCREWWWASHER |
90159-40183 |
US $1.61 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.67 |
||
|
9016445013
|
9016445013
90164-45013 SCREW BINDING |
90164-45013 |
US $2.15 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.60 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.10 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
|
9356754514
|
9356754514
93567-54514 SCREW TAPPING |
93567-54514 |
US $1.43 |
||
| replacement | |||||
|
9356754514
|
9356754514
93567-A5014 SCREW TAPPING |
93567-A5014 |
from US $0.67 |
||
|
9356854516
|
9356854516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.97 |
||
