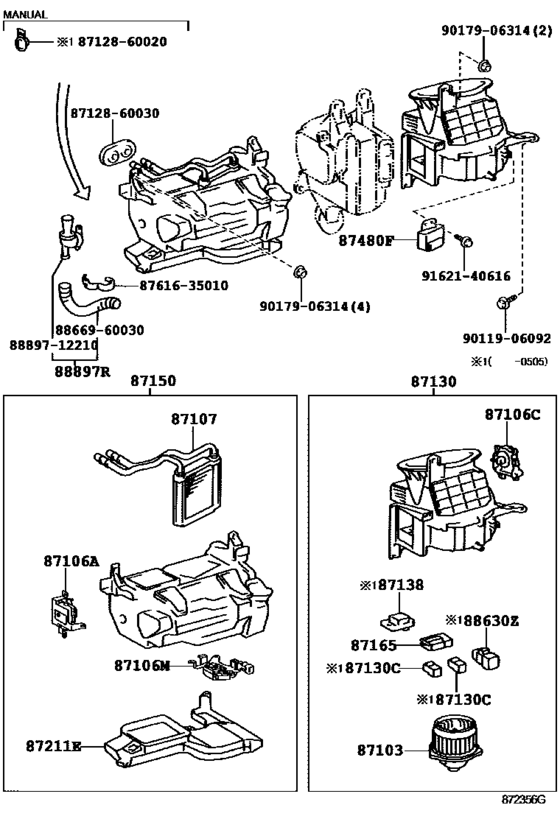

Heating & Air Conditioning - Heater Unit & Blower ([01.1998 - ] FRONT (9801- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87103
|
87103
87103-60220 Motor Sub-Assy, Heater Blower, W/fanHEATER BLOWER, W/FAN [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
87103-60220 |
from US $281.30 |
||
|
87106A
|
87106A
87106-60111
Servo Sub-Assy, Damper
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
87106-60111 |
— | ||
|
87106C
|
87106C
87106-60200
Servo Sub-Assy, Damper(For Blower)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
87106-60200 |
— | ||
|
87106M
|
87106M
87106-60120 Servo Sub-Assy, Damper, No.2DAMPER, NO.2 [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
87106-60120 |
US $134.53 |
||
|
87107
|
87107
87107-60351 Unit Sub-Assy, Heater RadiatorHEATER RADIATOR [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
87107-60351 |
US $484.06 |
||
|
87107
|
87107
87107-60361 Unit Sub-Assy, Heater RadiatorHEATER RADIATOR [08.2002 - 05.2005] HDJ100,UZJ100..LHD COLD AREA SPEC |
87107-60361 |
US $545.57 |
||
|
87130
|
87130
87130-60382 Blower Assy, Heater, FrontHEATER, FRONT [07.2003 - 05.2005] HDJ100..LHD..5FC |
87130-60382 |
US $623.58 |
||
|
87150
|
87150
87150-60664
Radiator Assy, Heater
[07.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
87150-60664 |
— | ||
|
87150
|
87150
87150-60674
Radiator Assy, Heater
[07.2003 - 05.2005] HDJ100,UZJ100..LHD COLD AREA SPEC |
87150-60674 |
— | ||
|
87165
|
87165
87165-60030
Control, Blower Motor, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
87165-60030 |
— | ||
|
87211E
|
87211E
87211-60310
Duct, Air
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
87211-60310 |
— | ||
|
87480F
|
87480F
87480-60030
Amplifier Assy, Heater
[08.2002 - 05.2005] HDJ100 |
87480-60030 |
— | ||
|
88897R
|
88897R
88897-60040
Aspirator
[08.2002 - 02.2004] HDJ100,UZJ100..(5F,5FC)..VX |
88897-60040 |
— | ||
|
88897R
|
88897R
88897-60130
Aspirator
[02.2004 - 05.2005] HDJ100,UZJ100..VX |
88897-60130 |
— | ||
|
8712860020
|
8712860020
87128-60020
Grommet, Heater
|
87128-60020 |
— | ||
|
8712860030
|
8712860030
87128-60030
Grommet, Heater
|
87128-60030 |
— | ||
|
8761635010
|
8761635010
87616-35010 Clamp, Cooling Unit Case |
87616-35010 |
from US $4.58 |
||
|
8866960030
|
8866960030
88669-60030
Hose (For Cooler Thermistor)
|
88669-60030 |
— | ||
| replacement | |||||
|
8866960030
|
8866960030
88669-33090
Hose (For Cooler Thermistor)
|
88669-33090 |
— | ||
|
8889712210
|
8889712210
88897-12210
Aspirator
|
88897-12210 |
— | ||
|
9011906092
|
9011906092
90119-06092
New Genuine Part
|
90119-06092 |
— | ||
| replacement | |||||
|
9011906092
|
9011906092
90119-06699 BOLT WWASHER |
90119-06699 |
from US $0.68 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.78 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
