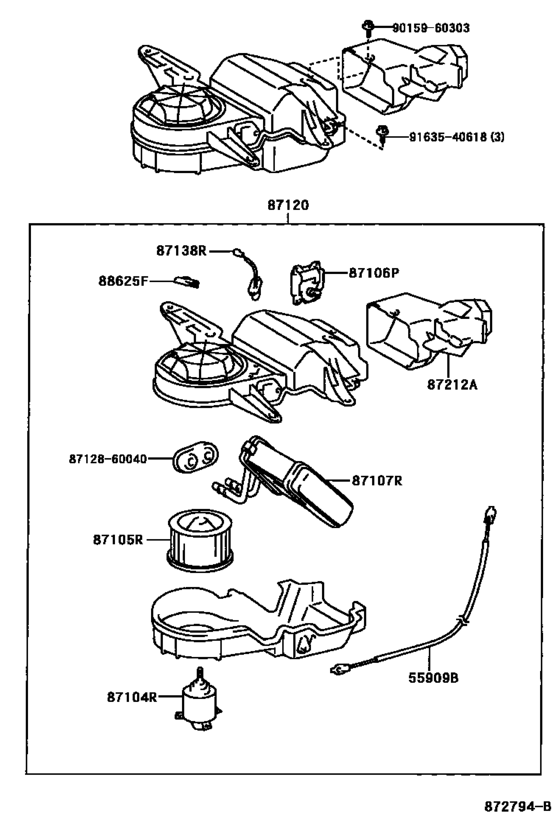

Heating & Air Conditioning - Heater Unit & Blower ([01.1998 - ] REAR (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55909B
|
55909B
55909-60090
Cable Sub-Assy, Airmix Damper Control
[08.2002 - 05.2005] HDJ100,UZJ100 |
55909-60090 |
— | ||
|
87104R
|
87104R
87104-60261 Motor Sub-Assy, Rear Heater Blower[08.2002 - 05.2005] HDJ100,UZJ100 |
87104-60261 |
from US $241.95 |
||
|
87105R
|
87105R
87105-26040 Fan Sub-Assy, Blower, Rear[08.2002 - 05.2005] HDJ100,UZJ100 |
87105-26040 |
US $21.11 |
||
|
87106P
|
87106P
87106-60140
Servo Sub-Assy, Damper(For Rear Heater)
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
87106-60140 |
— | ||
|
87107R
|
87107R
87107-35040
Unit Sub-Assy, Rear Heater
[08.2002 - 05.2005] HDJ100,UZJ100 |
87107-35040 |
— | ||
|
87120
|
87120
87110-60221
Heater Assy, Rear
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AUTO AIR CONDITIONER) |
87110-60221 |
— | ||
|
87120
|
87120
87110-60241
Heater Assy, Rear
[07.2003 - 05.2005] HDJ100..5FC W(DUAL MANUAL AIR CONDITIONER) |
87110-60241 |
— | ||
|
87138R
|
87138R
87138-35070
Resistor, Rear Heater Blower
[08.2002 - 05.2005] HDJ100,UZJ100 |
87138-35070 |
— | ||
|
87138R
|
87138R
88750-60010
Resistor, Rear Heater Blower
[07.2003 - 05.2005] HDJ100..5FC W(DUAL AUTO AIR CONDITIONER) |
88750-60010 |
— | ||
|
88625F
|
88625F
88625-28160
Sensor, Temperature
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
88625-28160 |
— | ||
|
8712860040
|
8712860040
87128-60040
Grommet, Heater
|
87128-60040 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
