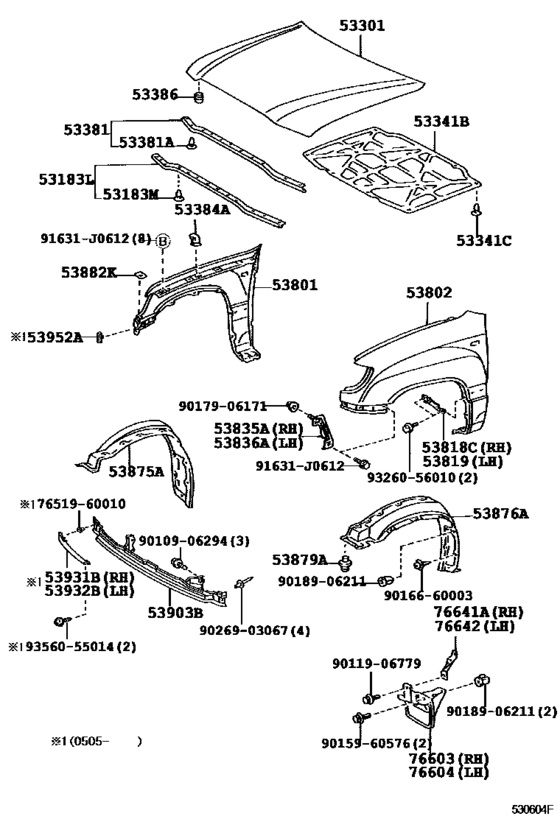

Hood & Front Fender ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183L
|
53183L
53183-60070
Seal, Headlamp Cover To Hood
[08.2002 - 02.2004] HDJ100,UZJ100 |
53183-60070 |
— | ||
| replacement | |||||
|
53183L
|
53183L
53183-60071 Seal, Headlamp Cover To Hood[08.2002 - 02.2004] HDJ100,UZJ100 |
53183-60071 |
from US $37.75 |
||
|
53183L
|
53183L
53183-60071 Seal, Headlamp Cover To Hood[02.2004 - 05.2005] HDJ100,UZJ100 |
53183-60071 |
from US $37.75 |
||
|
53183M
|
53183M
90467-08011 Clip(For Headlamp Cover Seal)[08.2002 - 05.2005] HDJ100,UZJ100 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53183M
|
53183M
90467-08011-TH CLIP[08.2002 - 05.2005] HDJ100,UZJ100 |
90467-08011-TH |
US $0.30 |
||
|
53183M
|
53183M
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [08.2002 - 05.2005] HDJ100,UZJ100 |
90467-08011-83 |
US $0.51 |
||
|
53301
|
53301
53301-60320 Hood Sub-Assy[08.2002 - 05.2005] HDJ100,UZJ100..VX |
53301-60320 |
US $963.87 |
||
| replacement | |||||
|
53301
|
53301
53301-60510 Hood Sub-Assy[08.2002 - 05.2005] HDJ100,UZJ100..VX |
53301-60510 |
from US $677.64 |
||
|
53301
|
53301
53301-60490 Hood Sub-Assy[07.2003 - 05.2005] HDJ100..LHD..5FC RUSSIA SPEC; HDJ100..RHD..5FC SOUTH AFRICA SPEC; HDJ100..LHD..5FC ARGENTINA SPEC; HDJ100..LHD..5FC HUNGARY SPEC; HDJ100..LHD..5FC POLAND SPEC; HDJ100..RHD..5FC CYPRUS SPEC; HDJ100..RHD..5FC NEWZEALAND SPEC |
53301-60490 |
US $963.87 |
||
| replacement | |||||
|
53301
|
53301
53301-60530 Hood Sub-Assy[07.2003 - 05.2005] HDJ100..LHD..5FC RUSSIA SPEC; HDJ100..RHD..5FC SOUTH AFRICA SPEC; HDJ100..LHD..5FC ARGENTINA SPEC; HDJ100..LHD..5FC HUNGARY SPEC; HDJ100..LHD..5FC POLAND SPEC; HDJ100..RHD..5FC CYPRUS SPEC; HDJ100..RHD..5FC NEWZEALAND SPEC |
53301-60530 |
from US $677.64 |
||
|
53341B
|
53341B
53341-60190 Insulator, Hood[08.2002 - 05.2005] HDJ100,UZJ100 |
53341-60190 |
US $241.70 |
||
| replacement | |||||
|
53341B
|
53341B
53341-60280 Insulator, Hood[08.2002 - 05.2005] HDJ100,UZJ100 |
53341-60280 |
from US $289.60 |
||
|
53341C
|
53341C
90467-09006 Clip(For Hood Insulator)[08.2002 - 03.2005] HDJ100,UZJ100..5F,5FC |
90467-09006 |
from US $0.78 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[03.2005 - 05.2005] HDJ100,UZJ100 |
90467-09050 |
from US $0.84 |
||
|
53381
|
53381
53381-60040
Seal, Hood To Radiator Support
[08.2002 - 03.2004] HDJ100,UZJ100 |
53381-60040 |
— | ||
| replacement | |||||
|
53381
|
53381
53381-60041 Seal, Hood To Radiator Support[08.2002 - 03.2004] HDJ100,UZJ100 |
53381-60041 |
from US $25.73 |
||
|
53381
|
53381
53381-60041 Seal, Hood To Radiator Support[03.2004 - 05.2005] HDJ100,UZJ100 |
53381-60041 |
from US $25.73 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[08.2002 - 05.2005] HDJ100,UZJ100 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[08.2002 - 05.2005] HDJ100,UZJ100 |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [08.2002 - 05.2005] HDJ100,UZJ100 |
90467-08011-83 |
US $0.51 |
||
|
53384A
|
53384A
53384-35010 Bumper, Fender To Hood[08.2002 - 05.2005] HDJ100,UZJ100 |
53384-35010 |
from US $4.71 |
||
|
53386
|
53386
53382-60020 Bumper, Hood, Rear[08.2002 - 05.2005] HDJ100,UZJ100 |
53382-60020 |
from US $6.73 |
||
|
53801
|
53801
53811-60871
Fender Sub-Assy, Front Rh
[08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
53811-60871 |
— | ||
| replacements | |||||
|
53801
|
53801
53811-60872 Fender Sub-Assy, Front RhFRONT RH [08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
53811-60872 |
US $539.51 |
||
|
53801
|
53801
90159-50353 SCREW, W-WASHER[08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
90159-50353 |
from US $0.65 |
||
|
53801
|
53801
90189-05142 GROMMET, SCREW[08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
90189-05142 |
from US $0.74 |
||
|
53801
|
53801
53811-60872 Fender Sub-Assy, Front RhFRONT RH [01.2005 - 05.2005] HDJ100,UZJ100..LHD..VX |
53811-60872 |
US $539.51 |
||
|
53801
|
53801
53811-60A20 Fender Sub-Assy, Front RhFRONT RH [05.2005 -] HDJ100,UZJ100..LHD |
53811-60A20 |
US $543.80 |
||
|
53802
|
53802
53812-60A10 Fender Sub-Assy, Front LhFRONT LH [05.2005 -] HDJ100,UZJ100..LHD |
53812-60A10 |
US $529.28 |
||
|
53802
|
53802
53812-6A191 Fender Sub-Assy, Front LhFRONT LH [08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
53812-6A191 |
US $872.14 |
||
| replacements | |||||
|
53802
|
53802
53812-6A192 Fender Sub-Assy, Front Lh[08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
53812-6A192 |
from US $585.66 |
||
|
53802
|
53802
90159-50353 SCREW, W-WASHER[08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
90159-50353 |
from US $0.65 |
||
|
53802
|
53802
90189-05142 GROMMET, SCREW[08.2002 - 01.2005] HDJ100,UZJ100..LHD..VX |
90189-05142 |
from US $0.74 |
||
|
53802
|
53802
53812-6A192 Fender Sub-Assy, Front Lh[01.2005 - 05.2005] HDJ100,UZJ100..LHD..VX |
53812-6A192 |
from US $585.66 |
||
|
53818C
|
53818C
53818-60010 Reinforcement, Front Fender, Rear Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
53818-60010 |
from US $10.70 |
||
|
53819
|
53819
53818-60010 Reinforcement, Front Fender, Rear Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
53818-60010 |
from US $10.70 |
||
|
53835A
|
53835A
53835-60040 Brace, Front Fender To Apron, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
53835-60040 |
from US $10.26 |
||
|
53836A
|
53836A
53835-60040 Brace, Front Fender To Apron, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
53835-60040 |
from US $10.26 |
||
|
53875A
|
53875A
53875-60020
Liner, Front Fender, Rh
[08.2002 - 12.2004] HDJ100,UZJ100..5F,5FC |
53875-60020 |
— | ||
| replacement | |||||
|
53875A
|
53875A
53875-60021 Liner, Front Fender, Rh[08.2002 - 12.2004] HDJ100,UZJ100..5F,5FC |
53875-60021 |
from US $84.36 |
||
|
53875A
|
53875A
53875-60021 Liner, Front Fender, Rh[01.2005 - 05.2005] HDJ100,UZJ100 |
53875-60021 |
from US $84.36 |
||
|
53876A
|
53876A
53876-60021 Liner, Front Fender, Lh[03.2003 - 05.2005] HDJ100,UZJ100 |
53876-60021 |
from US $84.09 |
||
|
53879A
|
53879A
53879-60010 Retainer, Front Fender Liner[08.2002 - 05.2005] HDJ100,UZJ100 |
53879-60010 |
from US $0.82 |
||
|
53882K
|
53882K
53882-16030 Pad, Rear Bumper, Center[08.2002 - 05.2005] HDJ100,UZJ100 |
53882-16030 |
from US $0.70 |
||
|
53903B
|
53903B
52506-60061 Panel Sub-Assy, Front End[05.2005 -] HDJ100,UZJ100 |
52506-60061 |
from US $73.74 |
||
|
53903B
|
53903B
53903-60070 Panel Sub-Assy, Front End[08.2002 - 05.2005] HDJ100,UZJ100 |
53903-60070 |
from US $204.40 |
||
|
53931B
|
53931B
53903-60080 Panel, Front End, Rh[05.2005 -] HDJ100,UZJ100 |
53903-60080 |
from US $44.86 |
||
|
53932B
|
53932B
53904-60010 Panel, Front End, Lh[05.2005 -] HDJ100,UZJ100 |
53904-60010 |
from US $46.04 |
||
|
53952A
|
53952A
53952-60010 Support, Front End Panel, Lwr[05.2005 -] HDJ100,UZJ100 |
53952-60010 |
US $3.58 |
||
|
76603
|
76603
76621-60070 Mudguard Sub-Assy, Front Fender, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
76621-60070 |
from US $40.96 |
||
|
76604
|
76604
76622-60060 Mudguard Sub-Assy, Front Fender, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
76622-60060 |
from US $42.18 |
||
|
76641A
|
76641A
76641-60020 Bracket, Front Mudguard[08.2002 - 05.2005] HDJ100,UZJ100 |
76641-60020 |
from US $8.32 |
||
|
76642
|
76642
76642-60020 Bracket, Front Fender Panel Mudguard, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
76642-60020 |
from US $8.27 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
7651960010
|
7651960010
76519-60010 Clip, Front End Panel Moulding, Lh |
76519-60010 |
from US $1.10 |
||
|
9010906294
|
9010906294
90109-06294 BOLT |
90109-06294 |
US $1.97 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.67 |
||
|
9015960576
|
9015960576
90159-60576 SCREW WWASHER |
90159-60576 |
from US $0.95 |
||
|
9016660003
|
9016660003
90166-60003 SCREW |
90166-60003 |
from US $0.65 |
||
|
9017906171
|
9017906171
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.76 |
||
|
9018906211
|
9018906211
90189-06211 GROMMET SCREW |
90189-06211 |
from US $0.70 |
||
|
9026903067
|
9026903067
90269-03067 RIVET |
90269-03067 |
from US $0.80 |
||
|
9326056010
|
9326056010
93260-56010 SCREW |
93260-56010 |
US $1.25 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.64 |
||
