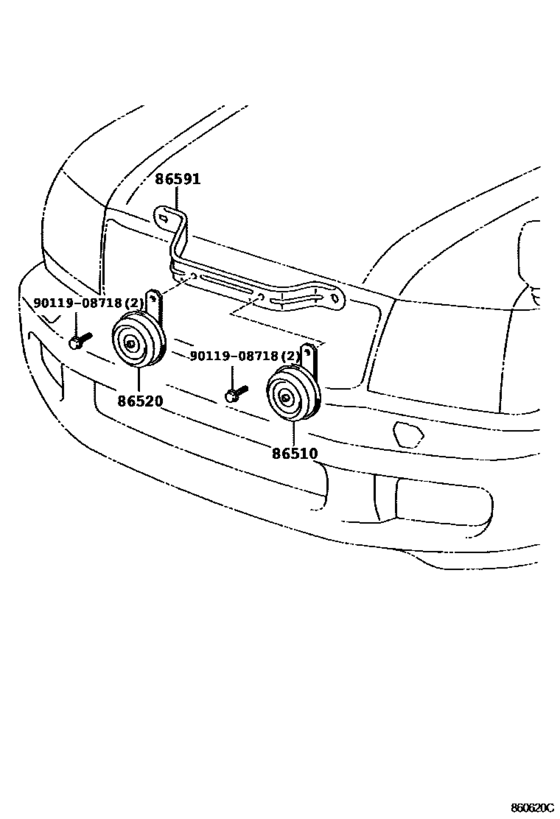

Horn ([01.1998 - ] (9801- )HDJ100) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86510
|
86510
86510-60250 Horn Assy, High Pitched[08.2002 - 05.2005] HDJ100,UZJ100 |
86510-60250 |
US $47.03 |
||
|
86520
|
86520
86520-60210
Horn Assy, Low Pitched
[08.2002 - 05.2005] HDJ100,UZJ100 |
86520-60210 |
— | ||
| replacement | |||||
|
86520
|
86520
86520-28180 Horn Assy, Low Pitched[08.2002 - 05.2005] HDJ100,UZJ100 |
86520-28180 |
from US $36.79 |
||
|
86591
|
86591
86591-60030 Bracket, Horn[08.2002 - 05.2005] HDJ100 |
86591-60030 |
US $9.90 |
||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
||
