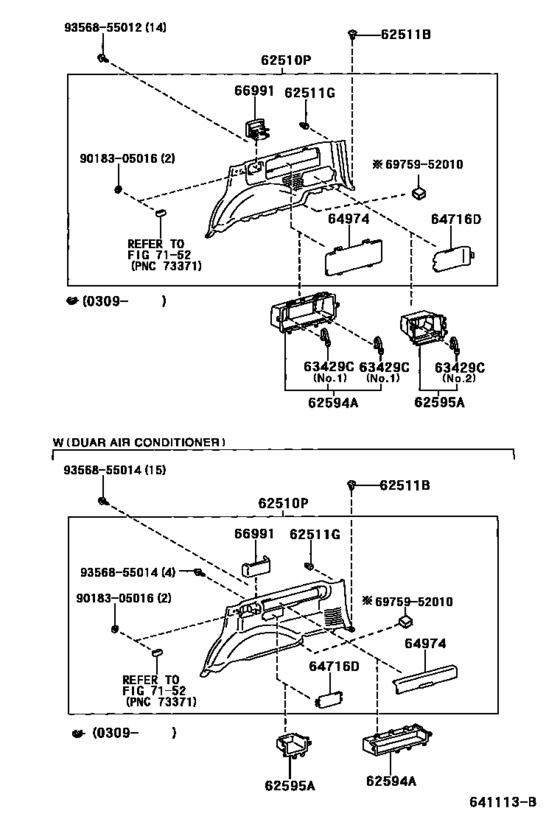

Inside Trim Board ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62510P
|
62510P
62503-60010-A1 Panel Assy, Quarter Trim, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
62503-60010-A1 |
US $363.34 |
||
|
62510P
|
62510P
62503-60010-B1
Panel Assy, Quarter Trim, Front Rh
[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
62503-60010-B1 |
— | ||
|
62510P
|
62510P
62503-60030-A1 Panel Assy, Quarter Trim, Front RhQUARTER TRIM, FRONT RH [08.2002 - 05.2005] HDJ100,UZJ100..VX W(TRANSVERSE THIRD SEAT),IVORY,TRIM0# |
62503-60030-A1 |
from US $375.71 |
||
|
62510P
|
62510P
62503-60030-B1 Panel Assy, Quarter Trim, Front RhQUARTER TRIM, FRONT RH [08.2002 - 05.2005] HDJ100,UZJ100..VX W(TRANSVERSE THIRD SEAT),STONE,TRIM1# |
62503-60030-B1 |
US $390.21 |
||
|
62510P
|
62510P
62503-60060-A1
Panel Assy, Quarter Trim, Front Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0# |
62503-60060-A1 |
— | ||
| replacement | |||||
|
62510P
|
62510P
62503-60090-A0 Panel Assy, Quarter Trim, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0# |
62503-60090-A0 |
US $390.21 |
||
|
62510P
|
62510P
62503-60060-B1 Panel Assy, Quarter Trim, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1# |
62503-60060-B1 |
US $398.94 |
||
| replacement | |||||
|
62510P
|
62510P
62503-60090-B0 Panel Assy, Quarter Trim, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1# |
62503-60090-B0 |
US $390.21 |
||
|
62510P
|
62510P
62503-60090-A0 Panel Assy, Quarter Trim, Front Rh[11.2006 - 08.2007] HDJ100,UZJ100 W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0# |
62503-60090-A0 |
US $390.21 |
||
|
62510P
|
62510P
62503-60090-B0 Panel Assy, Quarter Trim, Front Rh[11.2006 - 08.2007] HDJ100,UZJ100 W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1# |
62503-60090-B0 |
US $390.21 |
||
|
62511B
|
62511B
90467-05021-C0 Clip (For Center Pillar Garnish Panel, Upper)[08.2002 - 05.2005] HDJ100..STD BLACK,TRIM1#; HDJ100,UZJ100..VX BLACK,TRIM0#,1# |
90467-05021-C0 |
from US $1.06 |
||
|
62511G
|
62511G
67771-35010
Clip(For Cowl Side Trim)
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),WHITE |
67771-35010 |
— | ||
| replacement | |||||
|
62511G
|
62511G
67771-42010 Retainer, Rear Spoiler, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),WHITE |
67771-42010 |
from US $2.09 |
||
|
62511G
|
62511G
67771-89104 Clip (For Center Pillar Garnish Panel, Upper)[08.2002 - 05.2005] HDJ100,UZJ100 PINK |
67771-89104 |
US $2.87 |
||
|
62594A
|
62594A
62594-60040-A1
Pocket, Quarter Trim, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
62594-60040-A1 |
— | ||
| replacement | |||||
|
62594A
|
62594A
62594-60040-B1 Pocket, Quarter Trim, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
62594-60040-B1 |
US $122.23 |
||
|
62594A
|
62594A
62594-60040-B1 Pocket, Quarter Trim, No.1[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
62594-60040-B1 |
US $122.23 |
||
|
62594A
|
62594A
62594-60050-A1 Pocket, Quarter Trim, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
62594-60050-A1 |
US $104.83 |
||
|
62594A
|
62594A
62594-60050-B1 Pocket, Quarter Trim, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),STONE,TRIM1# |
62594-60050-B1 |
US $104.83 |
||
|
62595A
|
62595A
62595-60030-A1
Pocket, Quarter Trim, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
62595-60030-A1 |
— | ||
|
62595A
|
62595A
62595-60030-B1 Pocket, Quarter Trim, No.2[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
62595-60030-B1 |
US $92.09 |
||
|
62595A
|
62595A
62595-60040-A1
Pocket, Quarter Trim, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
62595-60040-A1 |
— | ||
| replacement | |||||
|
62595A
|
62595A
62595-60040-B1 Pocket, Quarter Trim, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
62595-60040-B1 |
US $64.36 |
||
|
62595A
|
62595A
62595-60040-B1 Pocket, Quarter Trim, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),STONE,TRIM1# |
62595-60040-B1 |
US $64.36 |
||
|
63429C
|
63429C
62585-60010 Band, Room Rack[08.2002 - 05.2005] HDJ100,UZJ100 NO.1 |
62585-60010 |
US $20.53 |
||
|
63429C
|
63429C
63429-60030 Band, Room Rack[08.2002 - 05.2005] HDJ100,UZJ100 NO.2; HDJ100..STD; HDJ100..LHD..5F..VX W(OPPOSING TYPE THIRD SEAT) |
63429-60030 |
US $20.53 |
||
|
64716D
|
64716D
64716-60030-A1
Cover, Deck Trim, Rear
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
64716-60030-A1 |
— | ||
|
64716D
|
64716D
64716-60030-B1
Cover, Deck Trim, Rear
[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
64716-60030-B1 |
— | ||
|
64716D
|
64716D
64716-60040-A1
Cover, Deck Trim, Rear
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
64716-60040-A1 |
— | ||
| replacement | |||||
|
64716D
|
64716D
64716-60040-B1 Cover, Deck Trim, Rear[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
64716-60040-B1 |
US $30.23 |
||
|
64716D
|
64716D
64716-60040-B1 Cover, Deck Trim, Rear[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),STONE,TRIM1# |
64716-60040-B1 |
US $30.23 |
||
|
64974
|
64974
64974-60010-A1 Cover, Deck Trim Pocket[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
64974-60010-A1 |
US $66.04 |
||
|
64974
|
64974
64974-60010-B1 Cover, Deck Trim Pocket[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
64974-60010-B1 |
US $66.04 |
||
|
64974
|
64974
64974-60020-A1 Cover, Deck Trim Pocket[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
64974-60020-A1 |
US $110.66 |
||
|
64974
|
64974
64974-60020-B1
Cover, Deck Trim Pocket
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),STONE,TRIM1# |
64974-60020-B1 |
— | ||
|
66991
|
66991
66907-60010-A1 Holder, Quarter Trim Cup, RhQUARTER TRIM CUP, RH [08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
66907-60010-A1 |
US $78.62 |
||
|
66991
|
66991
66907-60010-B1 Holder, Quarter Trim Cup, RhQUARTER TRIM CUP, RH [08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
66907-60010-B1 |
US $78.62 |
||
|
66991
|
66991
66991-60010-A1
Holder, Quarter Trim Cup, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
66991-60010-A1 |
— | ||
| replacement | |||||
|
66991
|
66991
66991-60010-B1 Holder, Quarter Trim Cup, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),IVORY,TRIM0# |
66991-60010-B1 |
US $30.14 |
||
|
66991
|
66991
66991-60010-B1 Holder, Quarter Trim Cup, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(DUAL AIR CONDITIONER),STONE,TRIM1# |
66991-60010-B1 |
US $30.14 |
||
|
6975952010
|
6975952010
69759-52010 Silencer, Roof, No.1 |
69759-52010 |
US $3.93 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.43 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
