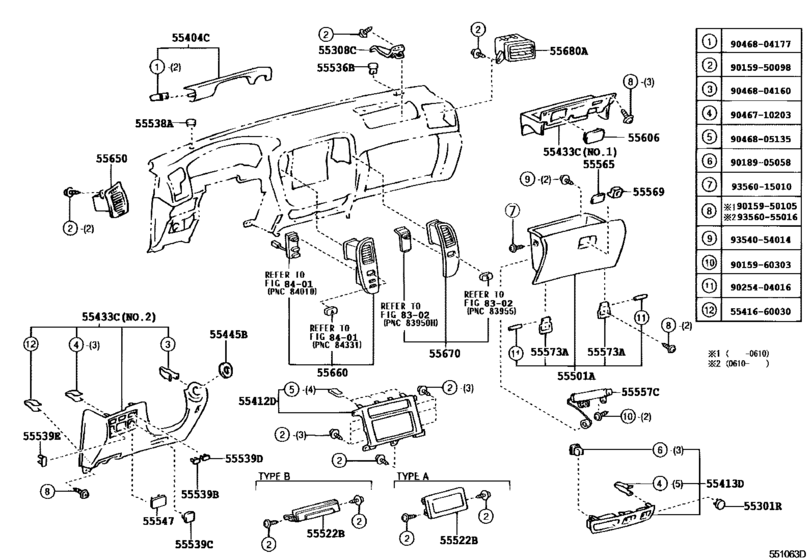

Instrument Panel & Glove Compartment ([08.2002 - ] (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55308C
|
55308C
55308-60040
Bracket Sub-Assy, Instrument Panel, Center
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
55308-60040 |
— | ||
|
55404C
|
55404C
55404-60120-C0
Panel Sub-Assy, Instrument Cluster Finish, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX BLACK,TRIM0#,1# |
55404-60120-C0 |
— | ||
|
55412D
|
55412D
55412-60310 Panel, Instrument Cluster Finish, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX |
55412-60310 |
US $109.44 |
||
|
55413D
|
55413D
55413-60160
Panel, Instrument Cluster Finish, Center Lower
[08.2002 - 05.2005] HDJ100..RHD..5F;HDJ100,UZJ100..LHD..ATM |
55413-60160 |
— | ||
|
55433C
|
55433C
55302-60031-A1
Panel, Instrument Panel Finish, Lower Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0#,NO.2 |
55302-60031-A1 |
— | ||
| replacement | |||||
|
55433C
|
55433C
55302-60031-B2 Panel, Instrument Panel Finish, Lower Lh (STONE color)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0#,NO.2 |
55302-60031-B2 |
from US $165.85 |
||
|
55433C
|
55433C
55302-60031-B2 Panel, Instrument Panel Finish, Lower Lh (STONE color)[08.2002 - 05.2005] HDJ100,UZJ100..LHD STONE,TRIM1#,NO.2 |
55302-60031-B2 |
from US $165.85 |
||
|
55433C
|
55433C
55433-60050
Panel, Instrument Panel Finish, Lower Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD NO.1 |
55433-60050 |
— | ||
|
55445B
|
55445B
55445-60100-A0 Plate, Instrument Panel Finish[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
55445-60100-A0 |
from US $4.48 |
||
|
55445B
|
55445B
55445-60100-B0 Plate, Instrument Panel Finish[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
55445-60100-B0 |
from US $4.39 |
||
|
55501A
|
55501A
55501-60141-A1 Door Sub-Assy, Glove Compartment[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
55501-60141-A1 |
from US $132.53 |
||
|
55501A
|
55501A
55501-60141-B2 Door Sub-Assy, Glove Compartment[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
55501-60141-B2 |
US $190.44 |
||
|
55522B
|
55522B
55522-42010
Cover, Radio Tuner Opening
[08.2002 - 05.2005] HDJ100,UZJ100..LHD TYPE B:REFER TO ILLUSTRATION |
55522-42010 |
— | ||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[08.2002 - 05.2005] HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
55522-52020 |
from US $13.78 |
||
|
55536B
|
55536B
55536-60020-B0 Cover, Light Control Switch Hole[08.2002 - 05.2005] HDJ100,UZJ100 DK.GRAY,TRIM1# |
55536-60020-B0 |
US $3.93 |
||
| replacement | |||||
|
55536B
|
55536B
55536-60020-C0 Cover, Light Control Switch Hole[08.2002 - 05.2005] HDJ100,UZJ100 DK.GRAY,TRIM1# |
55536-60020-C0 |
US $2.91 |
||
|
55536B
|
55536B
55536-60020-E0 Cover, Light Control Switch Hole[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
55536-60020-E0 |
US $4.95 |
||
|
55539C
|
55539C
55548-60040-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] HDJ100..STD BLACK,TRIM1#; HDJ100,UZJ100..VX BLACK,TRIM0#,1# |
55548-60040-C0 |
from US $4.07 |
||
|
55539D
|
55539D
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] HDJ100..STD BLACK,TRIM1#; HDJ100..5FC;HDJ100..LHD..5F..VX BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.29 |
||
|
55539E
|
55539E
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] UZJ100;HDJ100..LHD..5FC;HDJ100..RHD..(5F,5FC) BLACK,TRIM0#,1#; HDJ100..4FC;HDJ100..LHD..5F..VX W/O(HEADLAMP LEVELING),BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.29 |
||
|
55557C
|
55557C
55557-60010 Damper, Glove Compartment Door[08.2002 - 05.2005] HDJ100,UZJ100..VX |
55557-60010 |
US $25.68 |
||
|
55565
|
55565
55565-60010-A1
Handle, Glove Compartment Door Lock
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
55565-60010-A1 |
— | ||
| replacement | |||||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
55565-60010-B2 |
US $4.02 |
||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
55565-60010-B2 |
US $4.02 |
||
|
55569
|
55569
55569-60020-A1
Cover, Glove Compartment Door Lock
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
55569-60020-A1 |
— | ||
| replacement | |||||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
55569-60020-B2 |
from US $5.42 |
||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
55569-60020-B2 |
from US $5.42 |
||
|
55573A
|
55573A
55573-32010 Hinge Sub-Assy, Glove Compartment Door[08.2002 - 05.2005] HDJ100,UZJ100 |
55573-32010 |
US $5.07 |
||
|
55606
|
55606
55606-60050 Cover Sub-Assy, Instrument Panel Under, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
55606-60050 |
US $11.88 |
||
|
55650
|
55650
55650-60091-B1
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
55650-60091-B1 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60120-B0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.2002 - 05.2005] HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
55650-60120-B0 |
US $93.18 |
||
|
55650
|
55650
55650-60091-E1
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX SANDAL WOOD,TRIM0# |
55650-60091-E1 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60120-E0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX SANDAL WOOD,TRIM0# |
55650-60120-E0 |
US $87.83 |
||
|
55660
|
55660
55660-60170 Register Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX WOOD GRAIN |
55660-60170 |
US $337.42 |
||
|
55660
|
55660
55660-60190 Register Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
55660-60190 |
from US $266.23 |
||
|
55670
|
55670
55670-60110 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX WOOD GRAIN |
55670-60110 |
US $284.79 |
||
|
55670
|
55670
55670-60130 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
55670-60130 |
US $224.18 |
||
|
55680A
|
55680A
55680-60050-B0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
55680-60050-B0 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-60070-B0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
55680-60070-B0 |
— | ||
|
55680A
|
55680A
55680-60050-E0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX SANDAL WOOD,TRIM0# |
55680-60050-E0 |
— | ||
| replacements | |||||
|
55680A
|
55680A
55680-60070-E0 Register Assy, Instrument Panel, No.4INSTRUMENT PANEL, NO.4 [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX SANDAL WOOD,TRIM0# |
55680-60070-E0 |
from US $87.83 |
||
|
55680A
|
55680A
55680-60070
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX SANDAL WOOD,TRIM0# |
55680-60070 |
— | ||
|
5541660030
|
5541660030
55416-60030 Retainer, Instrument Cluster Finish Panel |
55416-60030 |
from US $1.06 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.67 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018905058
|
9018905058
90189-05058 GROMMET |
90189-05058 |
US $1.43 |
||
|
9025404016
|
9025404016
90254-04016 Shaft, Glove Compartment Door Hinge |
90254-04016 |
US $1.40 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.70 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.91 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.95 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.65 |
||
