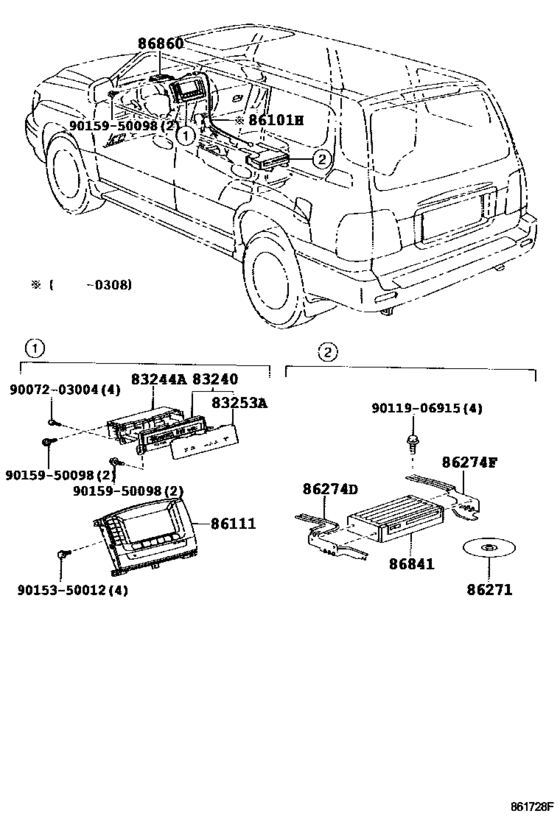

Navigation & Front Monitor Display ([08.2002 - 05.2005] (0208-0505)LHD..VX ; (0505- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83240
|
83240
83240-60220 Case Assy, Multi Information Display[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
83240-60220 |
US $56.09 |
||
|
83244A
|
83244A
83265-60220 Computer, Multi Information Display[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
83265-60220 |
US $728.58 |
||
|
83253A
|
83253A
83253-60220 Glass, Accessory Meter[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
83253-60220 |
US $33.20 |
||
|
86101H
|
86101H
86101-60101 Cord Sub-Assy, Antenna[07.2003 - 08.2003] HDJ100,UZJ100..LHD..VX NO.2 |
86101-60101 |
US $113.57 |
||
|
86101H
|
86101H
86101-60170 Cord Sub-Assy, Antenna[07.2003 - 08.2003] HDJ100..LHD..5FC;HDJ100,UZJ100..RHD |
86101-60170 |
US $35.82 |
||
|
86111
|
86111
86111-60150
Multi-Display
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX DENSO |
86111-60150 |
— | ||
|
86111
|
86111
86111-60180
Multi-Display
[08.2003 - 05.2004] HDJ100,UZJ100..LHD..VX DENSO |
86111-60180 |
— | ||
| replacement | |||||
|
86111
|
86111
86111-60181
Multi-Display
[08.2003 - 05.2004] HDJ100,UZJ100..LHD..VX DENSO |
86111-60181 |
— | ||
|
86111
|
86111
86111-60181
Multi-Display
[06.2004 - 05.2005] HDJ100,UZJ100..LHD..VX DENSO |
86111-60181 |
— | ||
|
86271
|
86271
86271-24121
Disc, Disc Player
[11.2002 - 08.2003] HDJ100,UZJ100..VX |
86271-24121 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-24126
Disc, Disc Player
[11.2002 - 08.2003] HDJ100,UZJ100..VX |
86271-24126 |
— | ||
|
86271
|
86271
86271-53030
Disc, Disc Player
[08.2005 - 07.2006] HDJ100,UZJ100 |
86271-53030 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-53031
Disc, Disc Player
[08.2005 - 07.2006] HDJ100,UZJ100 |
86271-53031 |
— | ||
|
86271
|
86271
86271-53031
Disc, Disc Player
[07.2006 -] HDJ100,UZJ100 |
86271-53031 |
— | ||
|
86271
|
86271
86271-64010
Disc, Disc Player
[08.2003 - 11.2003] HDJ100,UZJ100..VX |
86271-64010 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-53031
Disc, Disc Player
[08.2003 - 11.2003] HDJ100,UZJ100..VX |
86271-53031 |
— | ||
|
86271
|
86271
86271-64011
Disc, Disc Player
[11.2003 - 07.2004] HDJ100,UZJ100..VX |
86271-64011 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-53031
Disc, Disc Player
[11.2003 - 07.2004] HDJ100,UZJ100..VX |
86271-53031 |
— | ||
|
86271
|
86271
86271-64012
Disc, Disc Player
[07.2004 - 05.2005] HDJ100,UZJ100..VX |
86271-64012 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-53031
Disc, Disc Player
[07.2004 - 05.2005] HDJ100,UZJ100..VX |
86271-53031 |
— | ||
|
86274D
|
86274D
86274-60060 Bracket, Disc Player[08.2002 - 08.2003] HDJ100,UZJ100..VX |
86274-60060 |
US $12.52 |
||
|
86274D
|
86274D
86274-60240 Bracket, Disc Player[08.2003 - 06.2004] HDJ100,UZJ100..VX |
86274-60240 |
US $14.56 |
||
|
86274F
|
86274F
86274-60070 Bracket, Disc Player, No.2[08.2002 - 08.2003] HDJ100,UZJ100..VX |
86274-60070 |
US $15.87 |
||
|
86274F
|
86274F
86274-60250 Bracket, Disc Player, No.2[08.2003 - 06.2004] HDJ100,UZJ100..VX |
86274-60250 |
US $13.69 |
||
|
86841
|
86841
86841-13020
Computer, Navigation
[08.2002 - 08.2003] HDJ100,UZJ100..VX |
86841-13020 |
— | ||
|
86841
|
86841
86841-50100
Computer, Navigation
[08.2003 - 05.2005] HDJ100,UZJ100..VX |
86841-50100 |
— | ||
| replacement | |||||
|
86841
|
86841
86841-50101
Computer, Navigation
[08.2003 - 05.2005] HDJ100,UZJ100..VX |
86841-50101 |
— | ||
|
86860
|
86860
86860-60080
Antenna Assy, Navigation
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
86860-60080 |
— | ||
|
9007203004
|
9007203004
90072-03004 SCREWTAPPING |
90072-03004 |
from US $0.46 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
