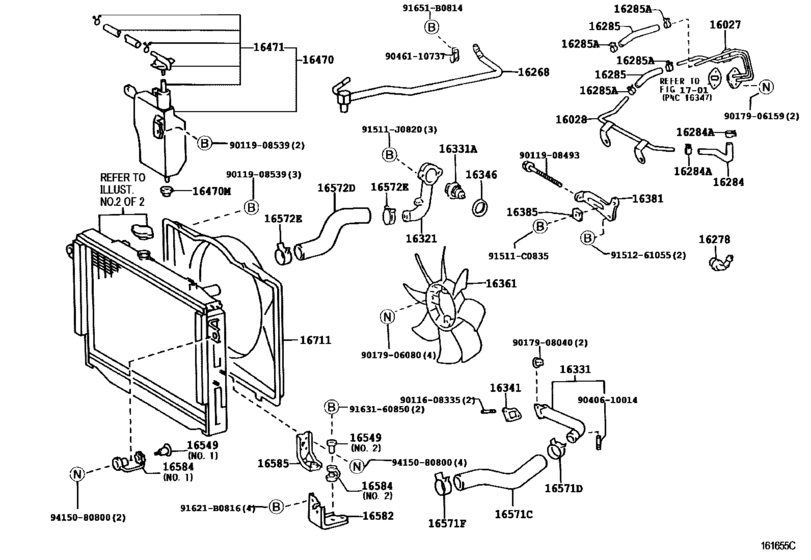

Radiator & Water Outlet ([08.2002 - ] TYPE A (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16027
|
16027
16027-17010 Pipe Sub-Assy, Turbo Water, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION |
16027-17010 |
from US $18.83 |
||
|
16027
|
16027
16027-17020 Pipe Sub-Assy, Turbo Water, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100..VX TYPE B:REFER TO ILLUSTRATION |
16027-17020 |
from US $25 |
||
|
16028
|
16028
16028-17010 Pipe Sub-Assy, Turbo Water, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16028-17010 |
from US $16.17 |
||
|
16268
|
16268
16268-17020 Pipe, Water By-Pass, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION |
16268-17020 |
from US $57.68 |
||
|
16268
|
16268
16268-17040 Pipe, Water By-Pass, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100..VX TYPE B:REFER TO ILLUSTRATION |
16268-17040 |
from US $74.08 |
||
|
16278
|
16278
16278-17010 Pipe, Water By-Pass, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16278-17010 |
from US $14.40 |
||
|
16284
|
16284
16284-17010 Hose, Turbo Water, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16284-17010 |
from US $5.91 |
||
|
16284A
|
16284A
90467-15022 Clip Or Clamp(For Ventilation Hose)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90467-15022 |
from US $1.05 |
||
|
16285
|
16285
16285-17010 Hose, Turbo Water, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16285-17010 |
from US $5.99 |
||
|
16285A
|
16285A
90467-15022 Clip Or Clamp(For Ventilation Hose)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90467-15022 |
from US $1.05 |
||
|
16321
|
16321
16321-17010 Inlet, Water[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16321-17010 |
from US $73.61 |
||
|
16331
|
16331
16304-17040 Outlet, Water[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16304-17040 |
from US $57.74 |
||
|
16331A
|
16331A
90916-03089 Thermostat[08.2002 - 05.2005] 1HDFTE..HDJ100 *WAX 76-90 |
90916-03089 |
from US $19.74 |
||
|
16341
|
16341
16341-17010 Gasket, Water Outlet[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16341-17010 |
from US $2.53 |
||
|
16346
|
16346
16346-66020 Gasket, Thermostat[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16346-66020 |
from US $3.15 |
||
|
16361
|
16361
16361-17030 Fan[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16361-17030 |
from US $95.12 |
||
|
16381
|
16381
16381-17010 Bar, Fan Belt Adjusting[08.2002 - 05.2005] 1HDFTE..HDJ100..(5F,5FC)..VX ALTERNATOR 12V 80A |
16381-17010 |
from US $7.96 |
||
|
16381
|
16381
16381-17020 Bar, Fan Belt Adjusting[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC ALTERNATOR 12V 120A |
16381-17020 |
from US $7.45 |
||
|
16385
|
16385
16385-17010 Slider, Fan Belt Adjusting[08.2002 - 05.2005] 1HDFTE..HDJ100..5F,5FC |
16385-17010 |
from US $5.21 |
||
|
16470
|
16470
16470-66030 Tank Assy, Radiator Reserve[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16470-66030 |
from US $56.38 |
||
|
16470M
|
16470M
90480-25025 Grommet, Radiator Reserve Tank Hose[08.2002 - 05.2005] 1HDFTE..HDJ100; 2UZFE..UZJ100 |
90480-25025 |
US $2.33 |
||
|
16471
|
16471
16405-66030 Cap Sub-Assy, Reserve Tank[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16405-66030 |
from US $12.23 |
||
|
16549
|
16549
16549-50010 Collar, Radiator Support, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100 NO.1; 2UZFE..UZJ100 UPPER BRACKET SIDE |
16549-50010 |
from US $5.34 |
||
|
16549
|
16549
16549-61010 Collar, Radiator Support, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100 NO.2; 2UZFE..UZJ100 LOWER |
16549-61010 |
from US $3.15 |
||
|
16571C
|
16571C
16571-17080 Hose, Radiator, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16571-17080 |
from US $18.66 |
||
|
16571D
|
16571D
90467-41006
Clamp Or Clip, Hose(For Radiator Inlet)
[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90467-41006 |
— | ||
| replacement | |||||
|
16571D
|
16571D
90466-41008 Clamp, Hose(For Radiator Hose)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90466-41008 |
from US $4.09 |
||
|
16571F
|
16571F
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90467-42001 |
— | ||
| replacement | |||||
|
16571F
|
16571F
90466-41008 Clamp, Hose(For Radiator Hose)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90466-41008 |
from US $4.09 |
||
|
16572D
|
16572D
16572-17130 Hose, Radiator, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16572-17130 |
from US $21.77 |
||
|
16572E
|
16572E
90467-43002 Clamp Or Clip, Hose(For Radiator Inlet)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90467-43002 |
from US $3.86 |
||
|
16582
|
16582
16582-50010 Bracket, Radiator, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100; 2UZFE..UZJ100 |
16582-50010 |
US $31.25 |
||
|
16584
|
16584
16584-61020 Insulator, Radiator Mounting[08.2002 - 05.2005] 1HDFTE..HDJ100 NO.2; 2UZFE..UZJ100 LOWER |
16584-61020 |
from US $14.04 |
||
|
16584
|
16584
16584-66010 Insulator, Radiator Mounting[08.2002 - 05.2005] 1HDFTE..HDJ100 NO.1; 2UZFE..UZJ100 UPPER BRACKET SIDE |
16584-66010 |
from US $3.19 |
||
|
16585
|
16585
16585-61020 Bracket, Radiator, No.3[08.2002 - 05.2005] 1HDFTE..HDJ100; 2UZFE..UZJ100 |
16585-61020 |
from US $13.57 |
||
|
16711
|
16711
16711-17100 Shroud, Fan[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16711-17100 |
from US $106.08 |
||
|
91511C0835
|
91511C0835
91511-C0835 Bolt(For Transaxle Case & Engine Setting) |
91511-C0835 |
from US $0.82 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9011608335
|
9011608335
90116-08335 New Genuine Part |
90116-08335 |
US $1.79 |
||
|
9011908493
|
9011908493
90119-08493 BOLT |
90119-08493 |
from US $1.52 |
||
|
9011908539
|
9011908539
90119-08539 BOLT |
90119-08539 |
US $1.61 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9040610014
|
9040610014
90406-10014 Union(For Water By-Pass Hose) |
90406-10014 |
from US $3.76 |
||
|
9046110737
|
9046110737
90461-10737
CLAMP
|
90461-10737 |
— | ||
|
9151261055
|
9151261055
91512-61055 BOLT, FLANGE |
91512-61055 |
from US $1.31 |
||
|
9163160850
|
9163160850
91631-60850 BOLT WWASHER |
91631-60850 |
US $1.79 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.76 |
||
