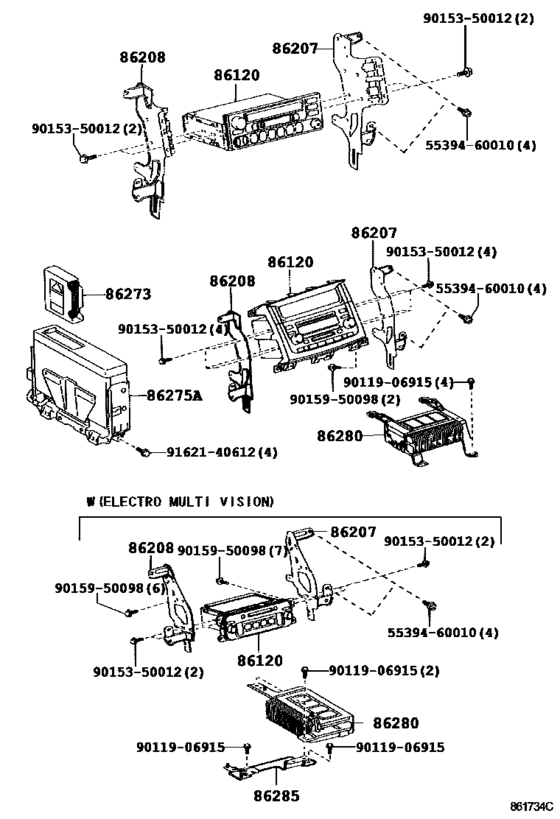

Radio Receiver & Amplifier & Condenser ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-33440
Receiver Assy, Radio
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX MATSUSHITA,ID=57413,TYPE F:REFER TO ILLUSTRATION |
86120-33440 |
— | ||
|
86120
|
86120
86120-60580
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3916,TYPE G:REFER TO ILLUSTRATION & AM/FM/LW CASSETTE CD AUTO CHANGER |
86120-60580 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-60581
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3916,TYPE G:REFER TO ILLUSTRATION & AM/FM/LW CASSETTE CD AUTO CHANGER |
86120-60581 |
— | ||
|
86120
|
86120
86120-60581
Receiver Assy, Radio
[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3930,TYPE G:REFER TO ILLUSTRATION & AM/FM/LW CASSETTE CD AUTO CHANGER |
86120-60581 |
— | ||
|
86120
|
86120
86120-60630
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3735,TYPE H:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
86120-60630 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-60631
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3735,TYPE H:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
86120-60631 |
— | ||
|
86120
|
86120
86120-60631
Receiver Assy, Radio
[08.2003 - 07.2004] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3741,TYPE H:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
86120-60631 |
— | ||
|
86120
|
86120
86120-60632
Receiver Assy, Radio
[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3743,TYPE H:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
86120-60632 |
— | ||
|
86207
|
86207
86207-60020 Bracket Sub-Assy, Radio Receiver, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(COMMON TYPE AUDIO) |
86207-60020 |
US $23.76 |
||
|
86207
|
86207
86207-60030
Bracket Sub-Assy, Radio Receiver, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(EXCLUSIVE TYPE AUDIO) |
86207-60030 |
— | ||
|
86207
|
86207
86207-60040 Bracket Sub-Assy, Radio Receiver, Rh[08.2002 - 08.2003] HDJ100,UZJ100..VX W(ELECTRO MULTI VISION) |
86207-60040 |
US $22.57 |
||
|
86207
|
86207
86207-60041 Bracket Sub-Assy, Radio Receiver, Rh[08.2003 - 05.2005] HDJ100,UZJ100..VX W(ELECTRO MULTI VISION) |
86207-60041 |
US $22.71 |
||
|
86208
|
86208
86208-60020 Bracket Sub-Assy, Radio Receiver, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX W(COMMON TYPE AUDIO) |
86208-60020 |
US $23.76 |
||
|
86208
|
86208
86208-60030
Bracket Sub-Assy, Radio Receiver, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(EXCLUSIVE TYPE AUDIO) |
86208-60030 |
— | ||
|
86208
|
86208
86208-60040 Bracket Sub-Assy, Radio Receiver, Lh[08.2002 - 08.2003] HDJ100,UZJ100..VX W(ELECTRO MULTI VISION) |
86208-60040 |
US $22.57 |
||
|
86208
|
86208
86208-60041 Bracket Sub-Assy, Radio Receiver, Lh[08.2003 - 05.2005] HDJ100,UZJ100..VX W(ELECTRO MULTI VISION) |
86208-60041 |
US $22.71 |
||
|
86273
|
86273
86273-60030 Magazine, Disc PlayerDISC PLAYER [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
86273-60030 |
US $101.92 |
||
|
86275A
|
86275A
86270-60040 Changer, Disc PlayerDISC PLAYER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
86270-60040 |
US $2,518.88 |
||
|
86280
|
86280
86280-60320
Amplifier Assy, Stereo Component
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX |
86280-60320 |
— | ||
|
86280
|
86280
86280-60321
Amplifier Assy, Stereo Component
[08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX |
86280-60321 |
— | ||
|
86280
|
86280
86280-60341 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [07.2003 - 08.2003] HDJ100..LHD..5FC W(ELECTRO MULTI VISION) |
86280-60341 |
US $1,383.83 |
||
|
86285
|
86285
86285-60020 Bracket, Amplifier, No.1[08.2002 - 08.2003] HDJ100,UZJ100..VX |
86285-60020 |
US $33.92 |
||
|
86285
|
86285
86285-60021 Bracket, Amplifier, No.1[08.2003 - 05.2005] HDJ100,UZJ100..VX |
86285-60021 |
US $28.54 |
||
|
5539460010
|
5539460010
55394-60010 BOLT INSTRUMENT |
55394-60010 |
US $1.89 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
