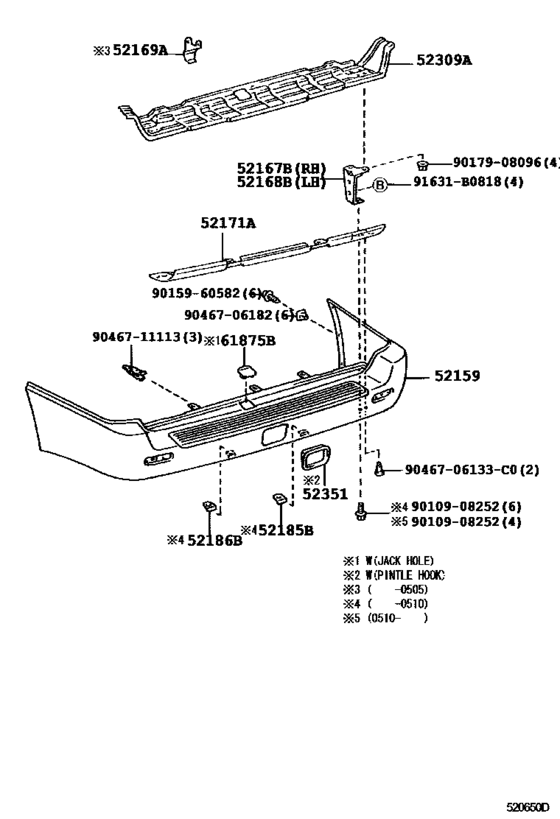

Rear Bumper & Bumper Stay ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52159
|
52159
52159-60907 Cover, Rear BumperREAR BUMPER [08.2002 - 05.2005] HDJ100,UZJ100..VX W(JACK HOLE) |
52159-60907 |
US $592.59 |
||
| replacement | |||||
|
52159
|
52159
52159-6A914 Cover, Rear Bumper[08.2002 - 05.2005] HDJ100,UZJ100..VX W(JACK HOLE) |
52159-6A914 |
from US $304.78 |
||
|
52159
|
52159
52159-60909
Cover, Rear Bumper
[08.2002 - 05.2005] UZJ100..LHD;HDJ100..ATM;HDJ100..LHD..5F..VX W(PINTLE HOOK & JACK HOLE) |
52159-60909 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-6A916 Cover, Rear Bumper[08.2002 - 05.2005] UZJ100..LHD;HDJ100..ATM;HDJ100..LHD..5F..VX W(PINTLE HOOK & JACK HOLE) |
52159-6A916 |
US $317.60 |
||
|
52167B
|
52167B
52167-60030 Bracket, Rear Bumper Extension Mounting, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
52167-60030 |
from US $21.26 |
||
|
52168B
|
52168B
52168-60030 Bracket, Rear Bumper Extension Mounting, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
52168-60030 |
from US $21.28 |
||
|
52171A
|
52171A
52171-60010 Reinforcement, Rear Bumper, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
52171-60010 |
from US $51.22 |
||
|
52171A
|
52171A
52171-60070 Reinforcement, Rear Bumper, No.1[10.2005 -] HDJ100,UZJ100 |
52171-60070 |
from US $53.22 |
||
|
52185B
|
52185B
52185-60080 Bracket, Rear Bumper Side Mounting, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
52185-60080 |
US $6.63 |
||
|
52186B
|
52186B
52185-60080 Bracket, Rear Bumper Side Mounting, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
52185-60080 |
US $6.63 |
||
|
52309A
|
52309A
52309-60010 Reinforcement Sub-Assy, Back Step[08.2002 - 05.2005] HDJ100,UZJ100 |
52309-60010 |
from US $252.89 |
||
|
52351
|
52351
51775-60040 Step, Rear Bumper[08.2002 - 05.2005] UZJ100..LHD;HDJ100..ATM;HDJ100..LHD..5F |
51775-60040 |
from US $12.65 |
||
|
61875B
|
61875B
61875-60020-B0 Lid, Spare Wheel Carrier, No.1[05.2005 - 08.2007] HDJ100,UZJ100 GRAY ME.,056 ,1F7 ,4R3 |
61875-60020-B0 |
from US $6.29 |
||
|
61875B
|
61875B
61875-60020-B1 Lid, Spare Wheel Carrier, No.1[05.2005 - 08.2007] HDJ100,UZJ100 GRAY ME.,8R3 |
61875-60020-B1 |
from US $6.97 |
||
|
61875B
|
61875B
61875-60020-D0 Lid, Spare Wheel Carrier, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4 |
61875-60020-D0 |
from US $6.14 |
||
|
61875B
|
61875B
61875-60020-E1 Lid, Spare Wheel Carrier, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX LT.GRAYISH BEIGE ME.,056 ,1B1 |
61875-60020-E1 |
from US $6.38 |
||
|
91631B0818
|
91631B0818
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.33 |
||
|
9010908252
|
9010908252
90109-08252 BOLT |
90109-08252 |
from US $0.76 |
||
|
9015960582
|
9015960582
90159-60582 SCREW WWASHER |
90159-60582 |
from US $0.82 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.37 |
||
|
9046706133C0
|
9046706133C0
90467-06133-C0 Clip, Step Plate Cover |
90467-06133-C0 |
from US $1.43 |
||
|
9046706182
|
9046706182
90467-06182 CLIP |
90467-06182 |
from US $1.37 |
||
|
9046711113
|
9046711113
90467-11113 CLIP |
90467-11113 |
from US $1.10 |
||
