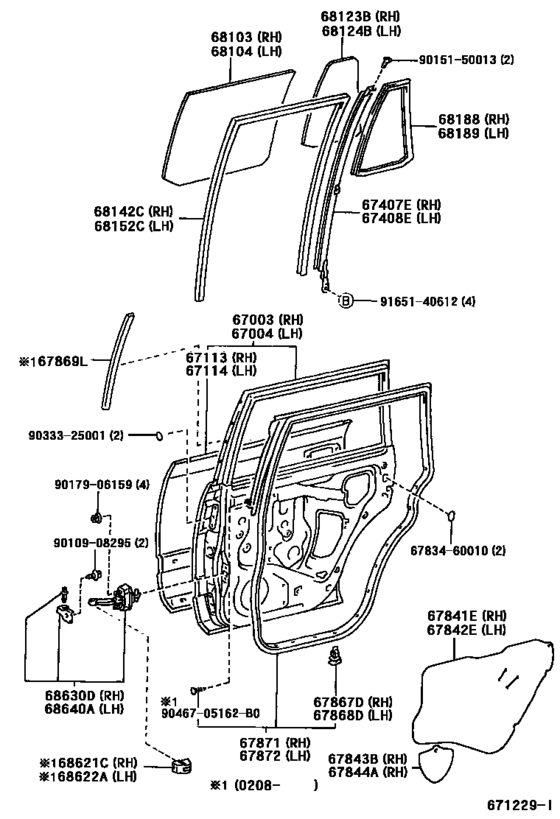

Rear Door Panel & Glass ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-60340 Panel Sub-Assy, Rear Door, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67003-60340 |
US $1,000.27 |
||
|
67004
|
67004
67004-60340 Panel Sub-Assy, Rear Door, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67004-60340 |
US $1,000.27 |
||
|
67113
|
67113
67113-60170 Panel, Rear Door, Outer RhREAR DOOR, OUTER RH [07.2003 - 05.2005] HDJ100..5FC |
67113-60170 |
US $406.22 |
||
|
67114
|
67114
67114-60170 Panel, Rear Door, Outer LhREAR DOOR, OUTER LH [07.2003 - 05.2005] HDJ100..5FC |
67114-60170 |
US $406.22 |
||
|
67407E
|
67407E
67407-60040 Bar Sub-Assy, Rear Door Window Division, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
67407-60040 |
US $51.40 |
||
|
67408E
|
67408E
67408-60040 Bar Sub-Assy, Rear Door Window Division, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
67408-60040 |
US $51.40 |
||
|
67841E
|
67841E
67841-60090 Cover, Rear Door Service Hole, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
67841-60090 |
US $11.53 |
||
|
67842E
|
67842E
67842-60040 Cover, Rear Door Service Hole, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
67842-60040 |
from US $11.29 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2002 - 05.2005] HDJ100,UZJ100 |
67867-12150 |
from US $1.79 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2002 - 05.2005] HDJ100,UZJ100 |
67867-12150 |
from US $1.79 |
||
|
67869L
|
67869L
67869-60020 Clip, Rear Door Weatherstrip[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67869-60020 |
from US $12.72 |
||
|
67871
|
67871
67871-60080 Weatherstrip, Rear Door, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67871-60080 |
from US $97.32 |
||
|
67872
|
67872
67872-60080 Weatherstrip, Rear Door, Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX |
67872-60080 |
from US $94.11 |
||
|
68103
|
68103
68113-60250
Glass Sub-Assy, Rear Door, Rh
[01.2003 - 05.2005] HDJ100,UZJ100 *TT,T=4.0,GREEN |
68113-60250 |
— | ||
|
68104
|
68104
68114-60250 Glass Sub-Assy, Rear Door, LhREAR DOOR, LH [01.2003 - 05.2005] HDJ100,UZJ100 *TT,T=4.0,GREEN |
68114-60250 |
US $218.40 |
||
|
68123B
|
68123B
68123-60161
Glass, Rear Door Quarter Window, Rh
[01.2003 - 05.2005] HDJ100,UZJ100 *TT,T=3.5,GREEN |
68123-60161 |
— | ||
|
68124B
|
68124B
68124-60161 Glass, Rear Door Quarter Window, LhREAR DOOR QUARTER WINDOW, LH [01.2003 - 05.2005] HDJ100,UZJ100 *TT,T=3.5,GREEN |
68124-60161 |
US $80.08 |
||
|
68142C
|
68142C
68142-60042
Run, Rear Door Glass, Rh
[08.2002 - 02.2004] HDJ100,UZJ100 |
68142-60042 |
— | ||
| replacement | |||||
|
68142C
|
68142C
68142-60043 Run, Rear Door Glass, Rh[08.2002 - 02.2004] HDJ100,UZJ100 |
68142-60043 |
from US $64.01 |
||
|
68142C
|
68142C
68142-60043 Run, Rear Door Glass, Rh[02.2004 - 05.2005] HDJ100,UZJ100 |
68142-60043 |
from US $64.01 |
||
|
68152C
|
68152C
68152-60032
Run, Rear Door Glass, Lh
[08.2002 - 02.2004] HDJ100,UZJ100 |
68152-60032 |
— | ||
| replacement | |||||
|
68152C
|
68152C
68152-60033 Run, Rear Door Glass, Lh[08.2002 - 02.2004] HDJ100,UZJ100 |
68152-60033 |
from US $64.01 |
||
|
68152C
|
68152C
68152-60033 Run, Rear Door Glass, Lh[02.2004 - 05.2005] HDJ100,UZJ100 |
68152-60033 |
from US $64.01 |
||
|
68188
|
68188
68188-60040 Weatherstrip, Rear Door Quarter Window, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
68188-60040 |
from US $40.51 |
||
|
68189
|
68189
68189-60040 Weatherstrip, Rear Door Quarter Window, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
68189-60040 |
from US $40.34 |
||
|
68621C
|
68621C
68621-53010 Cover, Front Door Check, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
68621-53010 |
from US $2.20 |
||
|
68622A
|
68622A
68622-53010 Cover, Front Door Check, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
68622-53010 |
from US $2.20 |
||
|
68630D
|
68630D
68630-60090
Check Assy, Rear Door, Rh
[08.2002 - 07.2004] HDJ100,UZJ100 |
68630-60090 |
— | ||
| replacement | |||||
|
68630D
|
68630D
68630-60091 Check Assy, Rear Door, Rh[08.2002 - 07.2004] HDJ100,UZJ100 |
68630-60091 |
from US $74.93 |
||
|
68630D
|
68630D
68630-60091 Check Assy, Rear Door, Rh[08.2004 - 05.2005] HDJ100,UZJ100 |
68630-60091 |
from US $74.93 |
||
|
68640A
|
68640A
68640-60080 Check Assy, Rear Door, Lh[08.2002 - 07.2004] HDJ100,UZJ100 |
68640-60080 |
US $60.13 |
||
| replacement | |||||
|
68640A
|
68640A
68640-60081 Check Assy, Rear Door, Lh[08.2002 - 07.2004] HDJ100,UZJ100 |
68640-60081 |
from US $70.79 |
||
|
68640A
|
68640A
68640-60081 Check Assy, Rear Door, Lh[08.2004 - 05.2005] HDJ100,UZJ100 |
68640-60081 |
from US $70.79 |
||
|
6783460010
|
6783460010
67834-60010 Cover, Front Door Service Hole, No.2 Lh |
67834-60010 |
US $2.48 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.76 |
||
|
9015150013
|
9015150013
90151-50013 New Genuine Part |
90151-50013 |
US $2.15 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.25 |
||
|
9046705162B0
|
9046705162B0
90467-05162-B0 Clip(For Rear Door Service Hole Cover) |
90467-05162-B0 |
US $1.25 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
