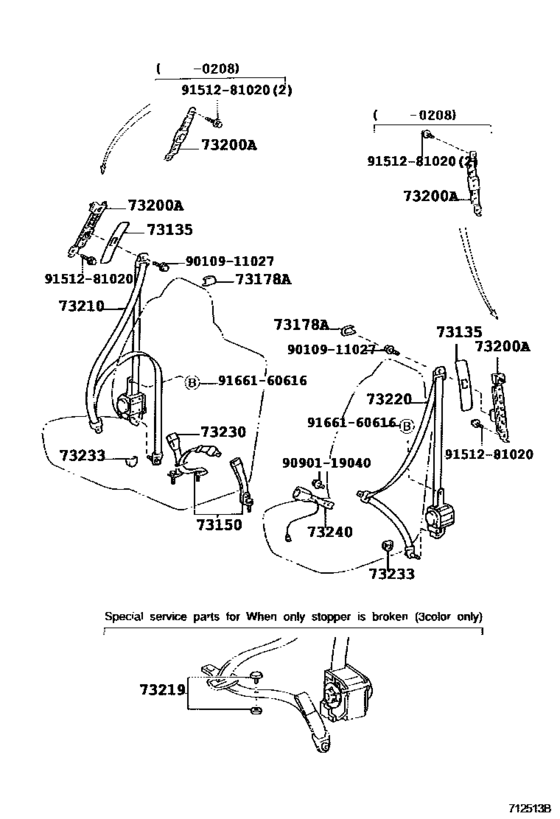

Seat Belt ([01.1998 - ] FRONT BENCH SEAT (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135
|
73135
73135-60010-A1 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0#,FRONT |
73135-60010-A1 |
US $10.34 |
||
|
73135
|
73135
73135-60010-B1
Cover, Shoulder Belt Anchorage Plate
[08.2002 - 05.2005] HDJ100..STD STONE,TRIM1#; HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION,STONE,TRIM1#,FRONT |
73135-60010-B1 |
— | ||
|
73135
|
73135
73135-60030-A0 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#,REAR |
73135-60030-A0 |
US $13.10 |
||
|
73135
|
73135
73135-60030-B0 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,STONE,TRIM1#,REAR |
73135-60030-B0 |
US $13.10 |
||
|
73178A
|
73178A
73178-60020-A0
Cap, Seat Belt Anchor Cover
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX IVORY,TRIM0# |
73178-60020-A0 |
— | ||
| replacement | |||||
|
73178A
|
73178A
73178-60020-B0 Cap, Seat Belt Anchor Cover (gray)[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX IVORY,TRIM0# |
73178-60020-B0 |
from US $2.91 |
||
|
73178A
|
73178A
73178-60020-B0 Cap, Seat Belt Anchor Cover (gray)[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC STONE,TRIM1# |
73178-60020-B0 |
from US $2.91 |
||
|
73200A
|
73200A
73290-60010
Adjuster Assy, Front Shoulder Belt Anchor
[08.2002 - 05.2005] HDJ100,UZJ100..VX REAR NO.1 SEAT |
73290-60010 |
— | ||
|
73200A
|
73200A
73290-60020 Adjuster Assy, Front Shoulder Belt Anchor[08.2002 - 05.2005] HDJ100,UZJ100..VX FRONT SEAT |
73290-60020 |
US $71.34 |
||
|
73210
|
73210
73210-60403-A1 Belt Assy, Front Seat Outer, Rh[07.2003 - 05.2005] HDJ100..5FC IVORY,TRIM0# |
73210-60403-A1 |
US $496.20 |
||
|
73210
|
73210
73210-60403-B1
Belt Assy, Front Seat Outer, Rh
[07.2003 - 05.2005] HDJ100..5FC GRAY,TRIM1# |
73210-60403-B1 |
— | ||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 BLACK |
73219-33010 |
from US $0.91 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 GRAY |
73219-33020 |
from US $1.05 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 BEIGE |
73219-33030 |
from US $0.91 |
||
|
73220
|
73220
73220-60323-A1 Belt Assy, Front Seat Outer, Lh[07.2003 - 05.2005] HDJ100..5FC IVORY,TRIM0# |
73220-60323-A1 |
US $496.20 |
||
|
73220
|
73220
73220-60323-B1 Belt Assy, Front Seat Outer, Lh[07.2003 - 05.2005] HDJ100..5FC GRAY,TRIM1# |
73220-60323-B1 |
US $496.20 |
||
|
73230
|
73230
73240-60380-A0 Belt Assy, Front Seat Inner, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(PASSENGER SEAT BELT WARNING),IVORY,TRIM0# |
73240-60380-A0 |
US $77.17 |
||
| replacement | |||||
|
73230
|
73230
73240-60380-B0 Belt Assy, Front Seat Inner, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(PASSENGER SEAT BELT WARNING),IVORY,TRIM0# |
73240-60380-B0 |
US $77.17 |
||
|
73230
|
73230
73240-60380-B0 Belt Assy, Front Seat Inner, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD W(PASSENGER SEAT BELT WARNING),STONE,TRIM1# |
73240-60380-B0 |
US $77.17 |
||
|
73230
|
73230
73240-60390-A0
Belt Assy, Front Seat Inner, Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT & PASSENGER SEAT BELT WARNING),IVORY,TRIM0# |
73240-60390-A0 |
— | ||
| replacement | |||||
|
73230
|
73230
73240-60390-B0 Belt Assy, Front Seat Inner, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT & PASSENGER SEAT BELT WARNING),IVORY,TRIM0# |
73240-60390-B0 |
US $77.17 |
||
|
73230
|
73230
73240-60390-B0 Belt Assy, Front Seat Inner, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT & PASSENGER SEAT BELT WARNING),STONE,TRIM1# |
73240-60390-B0 |
US $77.17 |
||
|
73233
|
73233
73233-33010-A1 Cap, Seat Belt Anchor Cover[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX IVORY,TRIM0# |
73233-33010-A1 |
US $4.05 |
||
|
73233
|
73233
73233-33010-B6 Cover, Lap Belt Outer Anchor[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC STONE,TRIM1# |
73233-33010-B6 |
US $6.81 |
||
|
73240
|
73240
73230-60430-A0
Belt Assy, Front Seat Inner, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73230-60430-A0 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-60430-B0 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73230-60430-B0 |
US $74.95 |
||
|
73240
|
73240
73230-60430-B0 Belt Assy, Front Seat Inner, RhFRONT SEAT INNER, RH [08.2002 - 05.2005] HDJ100,UZJ100..LHD STONE,TRIM1# |
73230-60430-B0 |
US $74.95 |
||
|
73240
|
73240
73230-60440-A0
Belt Assy, Front Seat Inner, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT),IVORY,TRIM0# |
73230-60440-A0 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-60440-B0
Belt Assy, Front Seat Inner, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT),IVORY,TRIM0# |
73230-60440-B0 |
— | ||
|
73240
|
73240
73230-60440-B0
Belt Assy, Front Seat Inner, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT),STONE,TRIM1# |
73230-60440-B0 |
— | ||
|
73240
|
73240
73230-60450-A0 Belt Assy, Front Seat Inner, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT POSITION AIR BAG SENSOR),IVORY,TRIM0# |
73230-60450-A0 |
US $77.17 |
||
| replacement | |||||
|
73240
|
73240
73230-60450-B0 Belt Assy, Front Seat Inner, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT POSITION AIR BAG SENSOR),IVORY,TRIM0# |
73230-60450-B0 |
US $77.17 |
||
|
73240
|
73240
73230-60450-B0 Belt Assy, Front Seat Inner, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT POSITION AIR BAG SENSOR),STONE,TRIM1# |
73230-60450-B0 |
US $77.17 |
||
|
73240
|
73240
73230-60460-A0
Belt Assy, Front Seat Inner, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT & SEAT POSITION AIR BAG SENSOR),IVORY,TRIM0# |
73230-60460-A0 |
— | ||
| replacement | |||||
|
73240
|
73240
73230-60460-B0 Belt Assy, Front Seat Inner, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT & SEAT POSITION AIR BAG SENSOR),IVORY,TRIM0# |
73230-60460-B0 |
US $74.95 |
||
|
73240
|
73240
73230-60460-B0 Belt Assy, Front Seat Inner, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT & SEAT POSITION AIR BAG SENSOR),STONE,TRIM1# |
73230-60460-B0 |
US $74.95 |
||
|
9010911027
|
9010911027
90109-11027 BOLT |
90109-11027 |
US $3.94 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $2.15 |
||
| replacement | |||||
|
9090119040
|
9090119040
90084-11055 New Genuine Part |
90084-11055 |
US $6.96 |
||
|
9151281020
|
9151281020
91512-81020 BOLT FLANGE |
91512-81020 |
US $1.31 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
