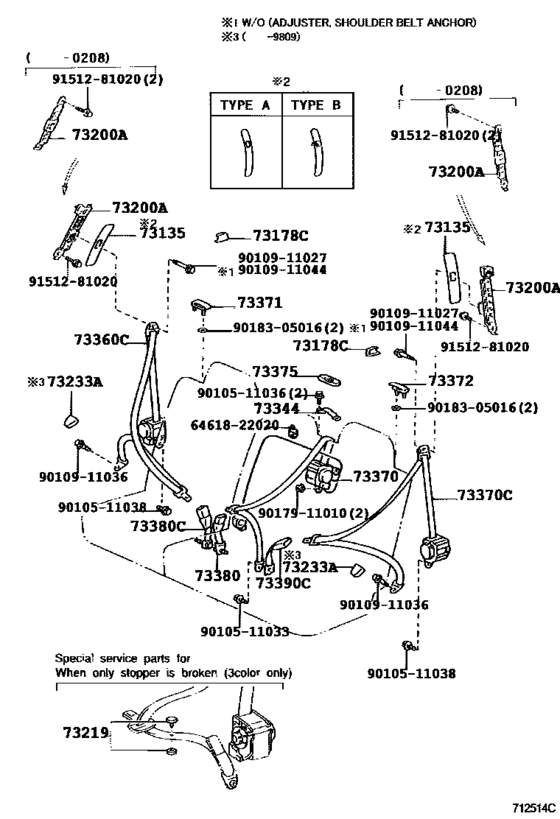

Seat Belt ([01.1998 - ] REAR NO.1 SEAT (9801- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135
|
73135
73135-60010-A1 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0#,FRONT |
73135-60010-A1 |
US $10.34 |
||
|
73135
|
73135
73135-60010-B1
Cover, Shoulder Belt Anchorage Plate
[08.2002 - 05.2005] HDJ100..STD STONE,TRIM1#; HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION,STONE,TRIM1#,FRONT |
73135-60010-B1 |
— | ||
|
73135
|
73135
73135-60030-A0 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#,REAR |
73135-60030-A0 |
US $13.10 |
||
|
73135
|
73135
73135-60030-B0 Cover, Shoulder Belt Anchorage Plate[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,STONE,TRIM1#,REAR |
73135-60030-B0 |
US $13.10 |
||
|
73178C
|
73178C
73178-60020-A0
Cap, Seat Belt Anchor Cover
[08.2002 - 08.2003] UZJ100..RHD;HDJ100..(5F,5FC)..VX IVORY,TRIM0# |
73178-60020-A0 |
— | ||
| replacement | |||||
|
73178C
|
73178C
73178-60020-B0 Cap, Seat Belt Anchor Cover (gray)[08.2002 - 08.2003] UZJ100..RHD;HDJ100..(5F,5FC)..VX IVORY,TRIM0# |
73178-60020-B0 |
from US $2.89 |
||
|
73178C
|
73178C
73178-60020-B0 Cap, Seat Belt Anchor Cover (gray)[08.2002 - 08.2003] UZJ100..RHD;HDJ100..(5F,5FC)..VX STONE,TRIM1# |
73178-60020-B0 |
from US $2.89 |
||
|
73200A
|
73200A
73290-60010
Adjuster Assy, Front Shoulder Belt Anchor
[08.2002 - 05.2005] HDJ100,UZJ100..VX REAR NO.1 SEAT |
73290-60010 |
— | ||
|
73200A
|
73200A
73290-60020 Adjuster Assy, Front Shoulder Belt Anchor[08.2002 - 05.2005] HDJ100,UZJ100..VX FRONT SEAT |
73290-60020 |
US $71.34 |
||
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 BLACK |
73219-33010 |
from US $0.89 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 GRAY |
73219-33020 |
from US $1.05 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 BEIGE |
73219-33030 |
from US $0.89 |
||
|
73344
|
73344
73344-60021 Guide, Rear Seat Shoulder Belt, LhREAR SEAT SHOULDER BELT, LH [12.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
73344-60021 |
US $18.64 |
||
|
73360C
|
73360C
73360-60323-A2
Belt Assy, Rear No.1 Seat, Outer Rh
[08.2003 - 07.2004] HDJ100,UZJ100..LHD..VX W(ADJUSTABLE SEAT BELT ANCHOR),IVORY,TRIM0# |
73360-60323-A2 |
— | ||
| replacement | |||||
|
73360C
|
73360C
73360-60325-A2 Belt Assy, Rear No.1 Seat, Outer Rh[08.2003 - 07.2004] HDJ100,UZJ100..LHD..VX W(ADJUSTABLE SEAT BELT ANCHOR),IVORY,TRIM0# |
73360-60325-A2 |
US $331.97 |
||
|
73360C
|
73360C
73360-60323-B2 Belt Assy, Rear No.1 Seat, Outer Rh[08.2003 - 07.2004] HDJ100,UZJ100..LHD..VX W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73360-60323-B2 |
US $331.97 |
||
| replacement | |||||
|
73360C
|
73360C
73360-60325-B2 Belt Assy, Rear No.1 Seat, Outer Rh[08.2003 - 07.2004] HDJ100,UZJ100..LHD..VX W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73360-60325-B2 |
US $331.97 |
||
|
73360C
|
73360C
73360-60325-A2 Belt Assy, Rear No.1 Seat, Outer Rh[08.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
73360-60325-A2 |
US $331.97 |
||
|
73360C
|
73360C
73360-60325-B2 Belt Assy, Rear No.1 Seat, Outer Rh[08.2004 - 05.2005] HDJ100,UZJ100..VX GRAY,TRIM1# |
73360-60325-B2 |
US $331.97 |
||
|
73370
|
73370
73301-60191-A1
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73301-60191-A1 |
— | ||
|
73370
|
73370
73301-60191-B1 Belt Assy, Rear Seat 3 Point Type, Outer LhREAR SEAT 3 POINT TYPE, OUTER LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX GRAY,TRIM1# |
73301-60191-B1 |
US $331.97 |
||
|
73370C
|
73370C
73370-60183-A2 Belt Assy, Rear No.1 Seat, Outer Lh[03.2003 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(ADJUSTABLE SEAT BELT ANCHOR),IVORY,TRIM0# |
73370-60183-A2 |
US $331.97 |
||
| replacement | |||||
|
73370C
|
73370C
73370-60185-A2 Belt Assy, Rear No.1 Seat, Outer Lh[03.2003 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(ADJUSTABLE SEAT BELT ANCHOR),IVORY,TRIM0# |
73370-60185-A2 |
US $331.97 |
||
|
73370C
|
73370C
73370-60183-B2 Belt Assy, Rear No.1 Seat, Outer Lh[03.2003 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73370-60183-B2 |
US $331.97 |
||
| replacement | |||||
|
73370C
|
73370C
73370-60185-B2 Belt Assy, Rear No.1 Seat, Outer Lh[03.2003 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
73370-60185-B2 |
US $331.97 |
||
|
73370C
|
73370C
73370-60185-A2 Belt Assy, Rear No.1 Seat, Outer Lh[08.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
73370-60185-A2 |
US $331.97 |
||
|
73370C
|
73370C
73370-60185-B2 Belt Assy, Rear No.1 Seat, Outer Lh[08.2004 - 05.2005] HDJ100,UZJ100..VX GRAY,TRIM1# |
73370-60185-B2 |
US $331.97 |
||
|
73371
|
73371
73371-60030-A1 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 08.2003] UZJ100..RHD;HDJ100..(5F,5FC)..VX IVORY,TRIM0# |
73371-60030-A1 |
US $13.26 |
||
|
73371
|
73371
73371-60030-B3 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 08.2003] UZJ100..RHD;HDJ100..5F,5FC STONE,TRIM1# |
73371-60030-B3 |
US $13.26 |
||
|
73372
|
73372
73371-60030-A1 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 08.2003] UZJ100..RHD;HDJ100..(5F,5FC)..VX IVORY,TRIM0# |
73371-60030-A1 |
US $13.26 |
||
|
73372
|
73372
73371-60030-B3 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 08.2003] UZJ100..RHD;HDJ100..5F,5FC STONE,TRIM1# |
73371-60030-B3 |
US $13.26 |
||
|
73375
|
73375
73375-60030-A1 Cover, Rear Seat Shoulder Belt, LhREAR SEAT SHOULDER BELT, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73375-60030-A1 |
US $28.39 |
||
| replacement | |||||
|
73375
|
73375
73375-60030-B2 Cover, Rear Seat Shoulder Belt, LhREAR SEAT SHOULDER BELT, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73375-60030-B2 |
US $28.39 |
||
|
73375
|
73375
73375-60030-B2 Cover, Rear Seat Shoulder Belt, LhREAR SEAT SHOULDER BELT, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
73375-60030-B2 |
US $28.39 |
||
|
73380
|
73380
73306-60140-A1 Belt Assy, Rear Seat 3 Point Type, Inner, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73306-60140-A1 |
US $64.06 |
||
|
73380
|
73380
73306-60140-B1 Belt Assy, Rear Seat 3 Point Type, Inner, Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX GRAY,TRIM1# |
73306-60140-B1 |
US $64.06 |
||
|
73380C
|
73380C
73380-60180-A1 Belt Assy, Rear No.1 Seat, Inner Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73380-60180-A1 |
US $64.06 |
||
|
73380C
|
73380C
73380-60180-B1 Belt Assy, Rear No.1 Seat, Inner Lh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX GRAY,TRIM1# |
73380-60180-B1 |
US $64.06 |
||
|
73390C
|
73390C
73380-60170-A1 Belt Assy, Rear No.1 Seat, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
73380-60170-A1 |
US $51.40 |
||
|
73390C
|
73390C
73380-60170-B1 Belt Assy, Rear No.1 Seat, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD GRAY,TRIM1# |
73380-60170-B1 |
US $51.40 |
||
|
6461822020
|
6461822020
64618-22020 Clamp, Hood Lock Control Cable |
64618-22020 |
US $0.87 |
||
|
9010511033
|
9010511033
90105-11033 New Genuine Part |
90105-11033 |
US $1.65 |
||
|
9010511036
|
9010511036
90105-11036 New Genuine Part |
90105-11036 |
US $1.97 |
||
|
9010511038
|
9010511038
90105-11038 BOLTWASHER BASED |
90105-11038 |
US $1.79 |
||
|
9010911027
|
9010911027
90109-11027 BOLT |
90109-11027 |
US $3.94 |
||
|
9010911036
|
9010911036
90109-11036 BOLT |
90109-11036 |
US $3.32 |
||
|
9010911044
|
9010911044
90109-11044 New Genuine Part |
90109-11044 |
US $5.23 |
||
|
9017911010
|
9017911010
90179-11010 NUT |
90179-11010 |
US $1.97 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.43 |
||
|
9151281020
|
9151281020
91512-81020 BOLT FLANGE |
91512-81020 |
US $1.31 |
||
