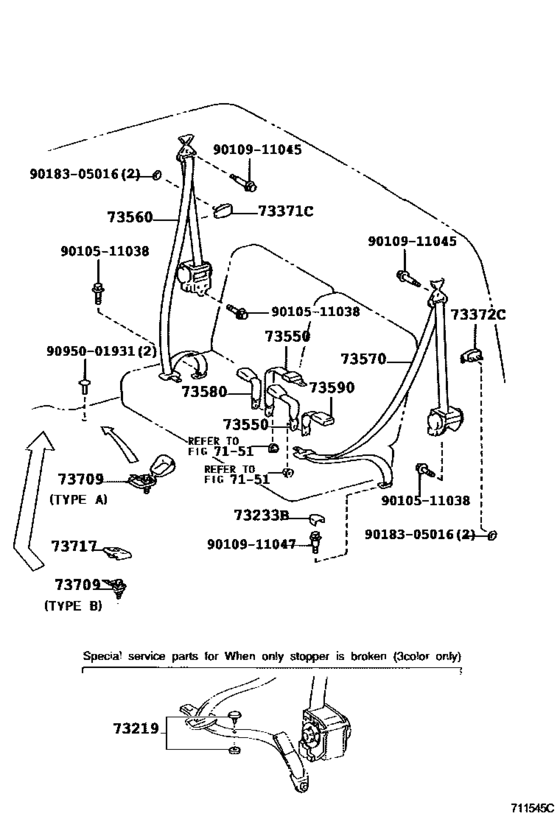

Seat Belt ([01.1998 - ] REAR NO.2 SEAT (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73219
|
73219
73219-33010 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 BLACK |
73219-33010 |
from US $0.91 |
||
|
73219
|
73219
73219-33020 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 GRAY |
73219-33020 |
from US $1.05 |
||
|
73219
|
73219
73219-33030 Stopper, Tongue Plate[08.2002 - 05.2005] HDJ100,UZJ100 BEIGE |
73219-33030 |
from US $0.91 |
||
|
73371C
|
73371C
73371-60030-A1 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX IVORY,TRIM0# |
73371-60030-A1 |
US $13.26 |
||
|
73371C
|
73371C
73371-60030-B3 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX STONE,TRIM1# |
73371-60030-B3 |
US $13.26 |
||
|
73372C
|
73372C
73371-60030-A1 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX IVORY,TRIM0# |
73371-60030-A1 |
US $13.26 |
||
|
73372C
|
73372C
73371-60030-B3 Hanger, Rear Seat Shoulder Belt, Rh[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX STONE,TRIM1# |
73371-60030-B3 |
US $13.26 |
||
|
73560
|
73560
73560-60131-A1 Belt Assy, Rear No.2 Seat, Outer Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
73560-60131-A1 |
US $321.78 |
||
|
73560
|
73560
73560-60131-B1 Belt Assy, Rear No.2 Seat, Outer Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX GRAY,TRIM1# |
73560-60131-B1 |
US $321.78 |
||
|
73570
|
73570
73570-60132-A1 Belt Assy, Rear No.2 Seat, Outer Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
73570-60132-A1 |
US $321.78 |
||
|
73570
|
73570
73570-60132-B1 Belt Assy, Rear No.2 Seat, Outer Lh[08.2002 - 05.2005] HDJ100,UZJ100..VX GRAY,TRIM1# |
73570-60132-B1 |
US $321.78 |
||
|
73580
|
73580
73580-60090-A1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
73580-60090-A1 |
US $51.40 |
||
|
73580
|
73580
73580-60090-B1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX GRAY,TRIM1# |
73580-60090-B1 |
US $51.40 |
||
|
73590
|
73590
73580-60090-A1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
73580-60090-A1 |
US $51.40 |
||
|
73590
|
73590
73580-60090-B1 Belt Assy, Rear No.2 Seat, Inner Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX GRAY,TRIM1# |
73580-60090-B1 |
US $51.40 |
||
|
73709
|
73709
73709-60040 Bracket Sub-Assy, Tether Anchor[07.2003 - 08.2003] HDJ100..5FC TYPE B:REFER TO ILLUSTRATION |
73709-60040 |
US $11.07 |
||
|
73717
|
73717
73717-50011-C0 Cover, Child Restraint Seat Tether Anchor[07.2003 - 08.2003] HDJ100..5FC BLACK |
73717-50011-C0 |
US $3.93 |
||
|
9010511038
|
9010511038
90105-11038 BOLTWASHER BASED |
90105-11038 |
US $1.79 |
||
|
9010911045
|
9010911045
90109-11045 New Genuine Part |
90109-11045 |
US $5.42 |
||
|
9010911047
|
9010911047
90109-11047
New Genuine Part
|
90109-11047 |
— | ||
| replacement | |||||
|
9010911047
|
9010911047
90109-11049 BOLT |
90109-11049 |
US $4.02 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.43 |
||
|
9095001931
|
9095001931
90950-01931 New Genuine Part |
90950-01931 |
from US $1.14 |
||
