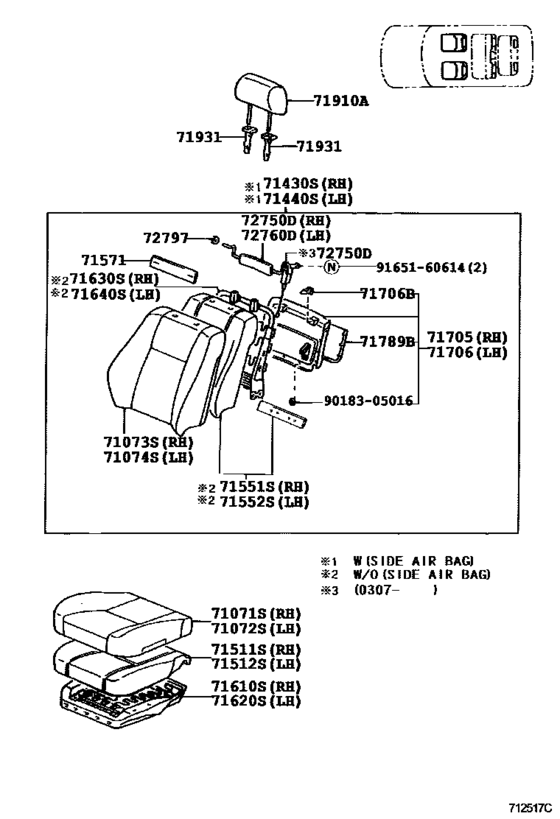

Seat & Seat Track ([08.2002 - ] FRONT SEAT (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-6A040-A1 Cover, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71071-6A040-A1 |
US $457.18 |
||
|
71071S
|
71071S
71071-6A040-B1
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71071-6A040-B1 |
— | ||
|
71071S
|
71071S
71071-6A070-A1
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71071-6A070-A1 |
— | ||
|
71071S
|
71071S
71071-6A070-B1
Cover, Front Seat Cushion, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71071-6A070-B1 |
— | ||
|
71072S
|
71072S
71072-60690-A1
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71072-60690-A1 |
— | ||
|
71072S
|
71072S
71072-60690-B1
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71072-60690-B1 |
— | ||
|
71072S
|
71072S
71072-60710-A1 Cover, Front Seat Cushion, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71072-60710-A1 |
US $964.45 |
||
|
71072S
|
71072S
71072-60710-B1
Cover, Front Seat Cushion, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71072-60710-B1 |
— | ||
|
71073S
|
71073S
71073-6A060-A1
Cover, Front Seat Back, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71073-6A060-A1 |
— | ||
| replacement | |||||
|
71073S
|
71073S
71073-6A130-A1
Cover, Front Seat Back, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71073-6A130-A1 |
— | ||
|
71073S
|
71073S
71073-6A060-B1 Cover, Front Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71073-6A060-B1 |
US $608.61 |
||
| replacement | |||||
|
71073S
|
71073S
71073-6A130-B1 Cover, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71073-6A130-B1 |
US $608.61 |
||
|
71073S
|
71073S
71073-6A080-A1 Cover, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71073-6A080-A1 |
US $1,275.46 |
||
|
71073S
|
71073S
71073-6A080-B1 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71073-6A080-B1 |
US $1,275.46 |
||
|
71073S
|
71073S
71073-6A310-A0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(*80,SIDE),IVORY,TRIM0# |
71073-6A310-A0 |
US $607.15 |
||
| replacement | |||||
|
71073S
|
71073S
71073-6A400-A0 Cover, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(*80,SIDE),IVORY,TRIM0# |
71073-6A400-A0 |
US $607.15 |
||
|
71073S
|
71073S
71073-6A310-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(*80,SIDE),STONE,TRIM1# |
71073-6A310-B0 |
US $607.15 |
||
| replacement | |||||
|
71073S
|
71073S
71073-6A400-B0 Cover, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(*80,SIDE),STONE,TRIM1# |
71073-6A400-B0 |
US $607.15 |
||
|
71073S
|
71073S
71073-6A350-A0 Cover, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(*80,SIDE & LEATHER SEAT),IVORY,TRIM0# |
71073-6A350-A0 |
US $1,274 |
||
|
71073S
|
71073S
71073-6A350-B0 Cover, Front Seat Back, Rh(For Separate Type)FRONT SEAT BACK, RH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..VX W(*80,SIDE & LEATHER SEAT),STONE,TRIM1# |
71073-6A350-B0 |
US $1,274 |
||
|
71074S
|
71074S
71073-6A130-A1
Cover, Front Seat Back, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71073-6A130-A1 |
— | ||
|
71074S
|
71074S
71073-6A130-B1 Cover, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71073-6A130-B1 |
US $608.61 |
||
|
71074S
|
71074S
71074-60750-A1 Cover, Front Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71074-60750-A1 |
US $1,275.46 |
||
|
71074S
|
71074S
71074-60750-B1 Cover, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71074-60750-B1 |
US $1,275.46 |
||
|
71074S
|
71074S
71074-60860-A0 Cover, Front Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(*80,SIDE & LEATHER SEAT),IVORY,TRIM0# |
71074-60860-A0 |
US $1,274 |
||
|
71074S
|
71074S
71074-60860-B0 Cover, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..VX W(*80,SIDE & LEATHER SEAT),STONE,TRIM1# |
71074-60860-B0 |
US $1,274 |
||
|
71074S
|
71074S
71074-6A020-A0 Cover, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(*80,SIDE),IVORY,TRIM0# |
71074-6A020-A0 |
US $607.15 |
||
|
71074S
|
71074S
71074-6A020-B0 Cover, Front Seat Back, Lh(For Separate Type)FRONT SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(*80,SIDE),STONE,TRIM1# |
71074-6A020-B0 |
US $607.15 |
||
|
71430S
|
71430S
71430-6A230-A0 Back Assy, Front Seat, Rh(For Separate Type)FRONT SEAT, RH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71430-6A230-A0 |
US $1,587.04 |
||
|
71430S
|
71430S
71430-6A230-B0
Back Assy, Front Seat, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71430-6A230-B0 |
— | ||
|
71430S
|
71430S
71430-6A240-A0
Back Assy, Front Seat, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER),IVORY,TRIM0# |
71430-6A240-A0 |
— | ||
|
71430S
|
71430S
71430-6A240-B0
Back Assy, Front Seat, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER),STONE,TRIM1# |
71430-6A240-B0 |
— | ||
|
71430S
|
71430S
71430-6A260-A0
Back Assy, Front Seat, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
71430-6A260-A0 |
— | ||
|
71430S
|
71430S
71430-6A260-B0
Back Assy, Front Seat, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
71430-6A260-B0 |
— | ||
|
71430S
|
71430S
71430-6A330-A0
Back Assy, Front Seat, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0# |
71430-6A330-A0 |
— | ||
|
71430S
|
71430S
71430-6A330-B0
Back Assy, Front Seat, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER & LEATHER SEAT),STONE,TRIM1# |
71430-6A330-B0 |
— | ||
|
71440S
|
71440S
71440-6A120-A0
Back Assy, Front Seat, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER),IVORY,TRIM0# |
71440-6A120-A0 |
— | ||
|
71440S
|
71440S
71440-6A120-B0
Back Assy, Front Seat, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER),STONE,TRIM1# |
71440-6A120-B0 |
— | ||
|
71440S
|
71440S
71440-6A130-A0 Back Assy, Front Seat, Lh(For Separate Type)FRONT SEAT, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71440-6A130-A0 |
US $1,688.96 |
||
|
71440S
|
71440S
71440-6A130-B0 Back Assy, Front Seat, Lh(For Separate Type)FRONT SEAT, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71440-6A130-B0 |
US $1,688.96 |
||
|
71440S
|
71440S
71440-6A150-A0
Back Assy, Front Seat, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
71440-6A150-A0 |
— | ||
|
71440S
|
71440S
71440-6A150-B0
Back Assy, Front Seat, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
71440-6A150-B0 |
— | ||
|
71440S
|
71440S
71440-6A170-A0
Back Assy, Front Seat, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0# |
71440-6A170-A0 |
— | ||
|
71440S
|
71440S
71440-6A170-B0
Back Assy, Front Seat, Lh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER & LEATHER SEAT),STONE,TRIM1# |
71440-6A170-B0 |
— | ||
|
71511S
|
71511S
71501-60070
Pad, Front Seat Cushion, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT) |
71501-60070 |
— | ||
|
71511S
|
71511S
71501-60110
Pad, Front Seat Cushion, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
71501-60110 |
— | ||
|
71512S
|
71512S
71502-60090 Pad, Front Seat Cushion, Lh (For Separate Type)FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT) |
71502-60090 |
from US $242.08 |
||
|
71512S
|
71512S
71512-60120 Pad, Front Seat Cushion, Lh (For Separate Type)FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
71512-60120 |
US $224.40 |
||
|
71551S
|
71551S
71551-60240 Pad, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT) |
71551-60240 |
US $329.06 |
||
|
71551S
|
71551S
71551-60270 Pad, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
71551-60270 |
US $206.75 |
||
|
71552S
|
71552S
71551-60240 Pad, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT) |
71551-60240 |
US $329.06 |
||
|
71552S
|
71552S
71551-60270 Pad, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
71551-60270 |
US $206.75 |
||
|
71571
|
71571
71571-60020 Pad, Front Seat Back Silencer, A[08.2002 - 05.2005] HDJ100,UZJ100..VX |
71571-60020 |
US $5.53 |
||
|
71610S
|
71610S
71610-60130 Spring Assy, Front Seat Cushion, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100 |
71610-60130 |
US $242.86 |
||
|
71610S
|
71610S
71610-60230
Spring Assy, Front Seat Cushion, Rh(For Separate Type)
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT) |
71610-60230 |
— | ||
|
71620S
|
71620S
71620-60170 Spring Assy, Front Seat Cushion, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100 |
71620-60170 |
US $250.43 |
||
|
71620S
|
71620S
71620-60230 Spring Assy, Front Seat Cushion, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT) |
71620-60230 |
US $250.43 |
||
|
71630S
|
71630S
71630-60140 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
71630-60140 |
US $273.73 |
||
|
71630S
|
71630S
71630-60180 Spring Assy, Front Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(POWER SEAT); HDJ100..LHD..(4FC,5F)..VX W(POWER SEAT) |
71630-60180 |
US $283.92 |
||
|
71640S
|
71640S
71630-60150 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
71630-60150 |
US $267.90 |
||
|
71640S
|
71640S
71630-60190 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(POWER SEAT); HDJ100..LHD..(4FC,5F)..VX W(POWER SEAT) |
71630-60190 |
US $279.55 |
||
|
71705
|
71705
71705-60220-A0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71705-60220-A0 |
— | ||
|
71705
|
71705
71705-60220-B0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71705-60220-B0 |
— | ||
|
71705
|
71705
71705-60230-A0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71705-60230-A0 |
— | ||
|
71705
|
71705
71705-60230-B0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71705-60230-B0 |
— | ||
|
71706
|
71706
71705-60220-A0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71705-60220-A0 |
— | ||
|
71706
|
71706
71705-60220-B0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71705-60220-B0 |
— | ||
|
71706
|
71706
71705-60230-A0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71705-60230-A0 |
— | ||
|
71706
|
71706
71705-60230-B0
Board Sub-Assy, Front Seat Back, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71705-60230-B0 |
— | ||
|
71706B
|
71706B
71769-60020 Clip, Front Seat Back Board[08.2002 - 05.2005] HDJ100,UZJ100..VX |
71769-60020 |
from US $7.41 |
||
|
71789B
|
71789B
71780-60020-A1 Pocket, Front Seat Back Board[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71780-60020-A1 |
US $16.84 |
||
|
71789B
|
71789B
71780-60020-B2 Pocket, Front Seat Back Board[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71780-60020-B2 |
US $16.84 |
||
|
71910A
|
71910A
71910-60420-A1 Headrest Assy, Front Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71910-60420-A1 |
US $398.94 |
||
|
71910A
|
71910A
71910-60420-B1
Headrest Assy, Front Seat
[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71910-60420-B1 |
— | ||
|
71910A
|
71910A
71910-60440-A1 Headrest Assy, Front Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71910-60440-A1 |
US $503.78 |
||
|
71910A
|
71910A
71910-60440-B1
Headrest Assy, Front Seat
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71910-60440-B1 |
— | ||
|
71931
|
71931
71930-60030-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LOCK),IVORY,TRIM0# |
71930-60030-A1 |
US $16.89 |
||
|
71931
|
71931
71930-60030-B1
Support, Front Seat Headrest
[08.2002 - 05.2005] HDJ100,UZJ100 W(LOCK),STONE,TRIM1# |
71930-60030-B1 |
— | ||
|
71931
|
71931
71931-60020-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W/O(LOCK),IVORY,TRIM0# |
71931-60020-A1 |
US $10.34 |
||
|
71931
|
71931
71931-60020-B1
Support, Front Seat Headrest
[08.2002 - 05.2005] HDJ100,UZJ100 W/O(LOCK),STONE,TRIM1# |
71931-60020-B1 |
— | ||
|
72760D
|
72760D
72750-60070 Adjuster Assy, Lumbar Support, LhLUMBAR SUPPORT, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
72750-60070 |
US $398.94 |
||
|
72797
|
72797
72797-50010 Spacer, Lumbar Support[08.2002 - 05.2005] HDJ100,UZJ100..VX |
72797-50010 |
US $3.84 |
||
|
9018305016
|
9018305016
90183-05016 NUT |
90183-05016 |
US $1.43 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
