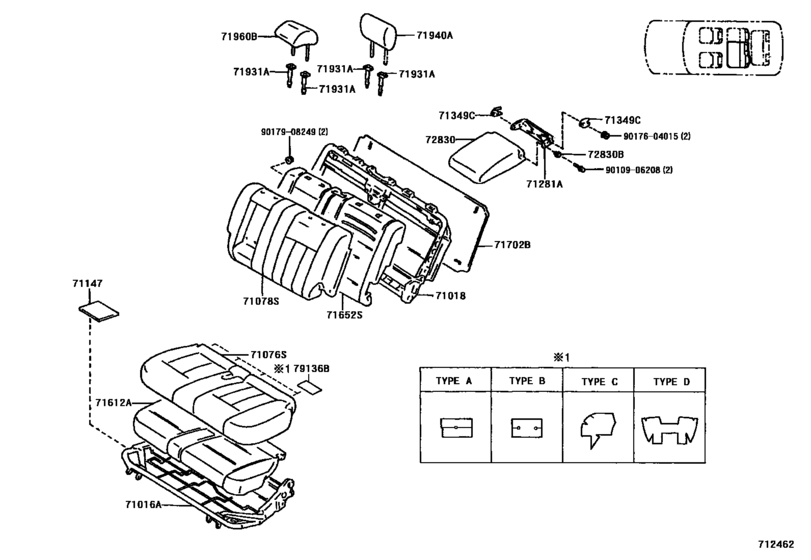

Seat & Seat Track ([08.2002 - ] REAR NO.1 SEAT (TYPE A) (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71016A
|
71016A
71016-60090 Frame Sub-Assy, Rear Seat Cushion, LhREAR SEAT CUSHION, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
71016-60090 |
US $460.10 |
||
|
71018
|
71018
71018-60200 Frame Sub-Assy, Rear Seat Back, LhREAR SEAT BACK, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
71018-60200 |
US $308.67 |
||
|
71076S
|
71076S
71076-60610-A0 Cover, Rear Seat Cushion, Lh (For Separate Type)REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71076-60610-A0 |
US $554.74 |
||
|
71076S
|
71076S
71076-60610-B1 Cover, Rear Seat Cushion, Lh (For Separate Type)REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71076-60610-B1 |
US $554.74 |
||
|
71076S
|
71076S
71076-60630-A1 Cover, Rear Seat Cushion, Lh (For Separate Type)REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
71076-60630-A1 |
US $1,470.56 |
||
|
71076S
|
71076S
71076-60630-B1 Cover, Rear Seat Cushion, Lh (For Separate Type)REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
71076-60630-B1 |
US $1,470.56 |
||
|
71078S
|
71078S
71078-60530-A1 Cover, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71078-60530-A1 |
US $480.48 |
||
|
71078S
|
71078S
71078-60530-B1 Cover, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71078-60530-B1 |
US $480.48 |
||
|
71078S
|
71078S
71078-60540-A1 Cover, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
71078-60540-A1 |
US $982.80 |
||
|
71078S
|
71078S
71078-60540-B1 Cover, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
71078-60540-B1 |
US $982.80 |
||
|
71147
|
71147
71147-60010 Silencer, Seat Spring[08.2002 - 05.2005] HDJ100,UZJ100..VX W(REAR NO.1 SEAT=TYPE A:REFER TO ILLUSTRATION) |
71147-60010 |
US $3.93 |
||
|
71147
|
71147
71147-60060 Silencer, Seat Spring[08.2002 - 05.2005] HDJ100,UZJ100..VX W(REAR NO.1 SEAT=TYPE B:REFER TO ILLUSTRATION) |
71147-60060 |
US $3.93 |
||
|
71281A
|
71281A
71281-60010 Hinge, Rear Seat Center Armrest[08.2002 - 05.2005] HDJ100,UZJ100..VX |
71281-60010 |
US $26.94 |
||
|
71349C
|
71349C
71349-60040-A1 Cover, Rear Seat Back Hinge[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71349-60040-A1 |
US $14.41 |
||
| replacement | |||||
|
71349C
|
71349C
71349-60040-B1 Cover, Rear Seat Back Hinge[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71349-60040-B1 |
US $14.41 |
||
|
71349C
|
71349C
71349-60040-B1 Cover, Rear Seat Back Hinge[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71349-60040-B1 |
US $14.41 |
||
|
71612A
|
71612A
71612-60180 Pad, Rear Seat Cushion, LhREAR SEAT CUSHION, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
71612-60180 |
US $314.50 |
||
|
71612A
|
71612A
71612-60200 Pad, Rear Seat Cushion, LhREAR SEAT CUSHION, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT) |
71612-60200 |
US $314.50 |
||
|
71652S
|
71652S
71652-60150 Pad, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
71652-60150 |
US $216.94 |
||
|
71702B
|
71702B
71701-60010-A2 Board Sub-Assy, Rear Seat Back, Rh[08.2003 - 09.2003] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
71701-60010-A2 |
US $157.25 |
||
|
71702B
|
71702B
71701-60010-B2 Board Sub-Assy, Rear Seat Back, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
71701-60010-B2 |
US $157.25 |
||
|
71702B
|
71702B
71701-60020-A1 Board Sub-Assy, Rear Seat Back, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),IVORY,TRIM0# |
71701-60020-A1 |
US $133.95 |
||
|
71702B
|
71702B
71701-60020-B1 Board Sub-Assy, Rear Seat Back, Rh[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(LEATHER SEAT),STONE,TRIM1# |
71701-60020-B1 |
US $133.95 |
||
|
71931A
|
71931A
71930-28040-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LOCK),IVORY,TRIM0# |
71930-28040-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-28040-P0 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LOCK),STONE,TRIM1# |
71930-28040-P0 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-A1 Support, Front Seat Headrest[05.2005 - 08.2007] HDJ100,UZJ100..RHD W(LOCK),IVORY,TRIM0#,LH; HDJ100,UZJ100..LHD W(LOCK),IVORY,TRIM0#,RH |
71930-60030-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-B1
Support, Front Seat Headrest
[05.2005 - 08.2007] HDJ100,UZJ100..RHD W(LOCK),STONE,TRIM1#,LH; HDJ100,UZJ100..LHD W(LOCK),STONE,TRIM1#,RH |
71930-60030-B1 |
— | ||
|
71931A
|
71931A
71931-28050-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W/O(LOCK),IVORY,TRIM0# |
71931-28050-A1 |
from US $8.38 |
||
|
71931A
|
71931A
71931-28050-P0 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W/O(LOCK),STONE,TRIM1# |
71931-28050-P0 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-A1 Support, Front Seat Headrest[05.2005 - 08.2007] HDJ100,UZJ100..RHD W/O(LOCK),IVORY,TRIM0#,LH; HDJ100,UZJ100..LHD W/O(LOCK),IVORY,TRIM0#,RH |
71931-60020-A1 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-B1
Support, Front Seat Headrest
[05.2005 - 08.2007] HDJ100,UZJ100..RHD W/O(LOCK),STONE,TRIM1#,LH; HDJ100,UZJ100..LHD W/O(LOCK),STONE,TRIM1#,RH |
71931-60020-B1 |
— | ||
|
71940A
|
71940A
71940-60250-A1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71940-60250-A1 |
US $398.94 |
||
|
71940A
|
71940A
71940-60250-B1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71940-60250-B1 |
US $398.94 |
||
|
71940A
|
71940A
71940-60260-A1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71940-60260-A1 |
US $503.78 |
||
|
71940A
|
71940A
71940-60260-B1 Headrest Assy, Rear SeatREAR SEAT [08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71940-60260-B1 |
US $503.78 |
||
|
71960B
|
71960B
71960-60020-A1 Headrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71960-60020-A1 |
US $321.78 |
||
|
71960B
|
71960B
71960-60020-B1 Headrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71960-60020-B1 |
US $321.78 |
||
|
71960B
|
71960B
71960-60030-A1 Headrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71960-60030-A1 |
US $406.22 |
||
|
71960B
|
71960B
71960-60030-B1 Headrest Assy, Rear Seat, CenterREAR SEAT, CENTER [08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71960-60030-B1 |
US $406.22 |
||
|
72830
|
72830
72830-60040-A1 Armrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
72830-60040-A1 |
US $713.44 |
||
|
72830
|
72830
72830-60040-B3 Armrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
72830-60040-B3 |
US $713.44 |
||
|
72830
|
72830
72830-60050-A1 Armrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
72830-60050-A1 |
US $1,000.27 |
||
|
72830
|
72830
72830-60050-B1 Armrest Assy, Rear Seat, CenterREAR SEAT, CENTER [08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
72830-60050-B1 |
US $1,000.27 |
||
|
72830B
|
72830B
90386-11015 Bush(For Rear Seat Center Armrest)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
90386-11015 |
US $1.46 |
||
|
79136B
|
79136B
79136-60070 Pad, No.1 Seat Cushion, Rh[08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE A:REFER ILLUST. |
79136-60070 |
US $7.72 |
||
| replacement | |||||
|
79136B
|
79136B
79136-60070-B0 Pad, No.1 Seat Cushion, Rh[08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE A:REFER ILLUST. |
79136-60070-B0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60070-A0 Pad, No.1 Seat Cushion, Rh[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0#,TYPE A:REFER ILLUST. |
79136-60070-A0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60070-B0 Pad, No.1 Seat Cushion, Rh[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1#,TYPE A:REFER ILLUST. |
79136-60070-B0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60080 Pad, No.1 Seat Cushion, Rh[08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE B:REFER ILLUST. |
79136-60080 |
US $7.72 |
||
| replacement | |||||
|
79136B
|
79136B
79136-60080-B0 Pad, No.1 Seat Cushion, Rh[08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE B:REFER ILLUST. |
79136-60080-B0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60080-A0 Pad, No.1 Seat Cushion, Rh[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0#,TYPE B:REFER ILLUST. |
79136-60080-A0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60080-B0 Pad, No.1 Seat Cushion, Rh[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1#,TYPE B:REFER ILLUST. |
79136-60080-B0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60090 Pad, No.1 Seat Cushion, LhNO.1 SEAT CUSHION, LH [08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE C:REFER ILLUST. |
79136-60090 |
US $7.72 |
||
| replacement | |||||
|
79136B
|
79136B
79136-60090-B0 Pad, No.1 Seat Cushion, LhNO.1 SEAT CUSHION, LH [08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE C:REFER ILLUST. |
79136-60090-B0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60090-A0 Pad, No.1 Seat Cushion, LhNO.1 SEAT CUSHION, LH [07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0#,TYPE C:REFER ILLUST. |
79136-60090-A0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60090-B0 Pad, No.1 Seat Cushion, LhNO.1 SEAT CUSHION, LH [07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1#,TYPE C:REFER ILLUST. |
79136-60090-B0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60100 Pad, No.1 Seat Cushion, Rh[08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE D:REFER ILLUST. |
79136-60100 |
US $7.72 |
||
| replacement | |||||
|
79136B
|
79136B
79136-60100-B0 Pad, No.1 Seat Cushion, Rh[08.2002 - 07.2004] HDJ100,UZJ100..LHD..VX TYPE D:REFER ILLUST. |
79136-60100-B0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60100-A0 Pad, No.1 Seat Cushion, Rh[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0#,TYPE D:REFER ILLUST. |
79136-60100-A0 |
US $7.86 |
||
|
79136B
|
79136B
79136-60100-B0 Pad, No.1 Seat Cushion, Rh[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1#,TYPE D:REFER ILLUST. |
79136-60100-B0 |
US $7.86 |
||
|
9010906208
|
9010906208
90109-06208 New Genuine Part |
90109-06208 |
US $1.16 |
||
|
9017604015
|
9017604015
90176-04015 New Genuine Part |
90176-04015 |
US $0.87 |
||
|
9017908249
|
9017908249
90179-08249 New Genuine Part |
90179-08249 |
US $1.79 |
||
