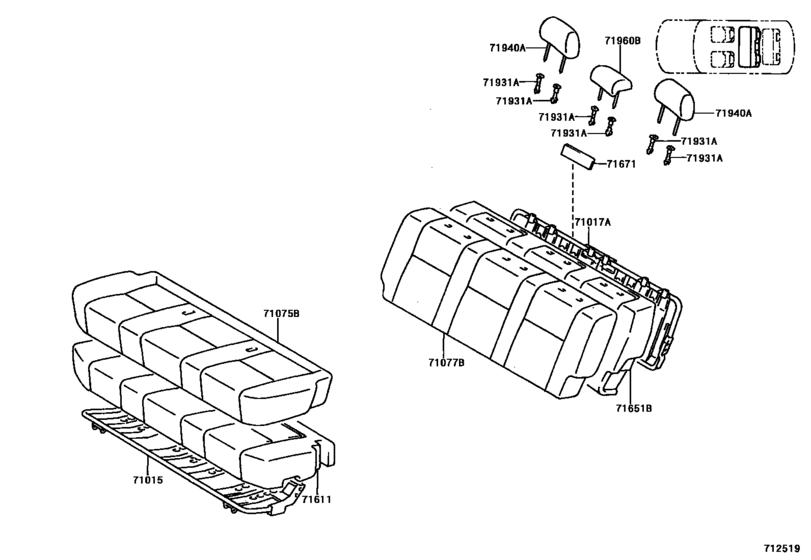

Seat & Seat Track ([08.2002 - ] REAR NO.1 SEAT (BENCH TYPE) (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71931A
|
71931A
71930-28040-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LOCK),IVORY,TRIM0# |
71930-28040-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-28040-P0 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LOCK),STONE,TRIM1# |
71930-28040-P0 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-A1 Support, Front Seat Headrest[05.2005 - 08.2007] HDJ100,UZJ100..RHD W(LOCK),IVORY,TRIM0#,LH; HDJ100,UZJ100..LHD W(LOCK),IVORY,TRIM0#,RH |
71930-60030-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-B1
Support, Front Seat Headrest
[05.2005 - 08.2007] HDJ100,UZJ100..RHD W(LOCK),STONE,TRIM1#,LH; HDJ100,UZJ100..LHD W(LOCK),STONE,TRIM1#,RH |
71930-60030-B1 |
— | ||
|
71931A
|
71931A
71931-28050-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W/O(LOCK),IVORY,TRIM0# |
71931-28050-A1 |
from US $8.38 |
||
|
71931A
|
71931A
71931-28050-P0 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ100,UZJ100..VX W/O(LOCK),STONE,TRIM1# |
71931-28050-P0 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-A1 Support, Front Seat Headrest[05.2005 - 08.2007] HDJ100,UZJ100..RHD W/O(LOCK),IVORY,TRIM0#,LH; HDJ100,UZJ100..LHD W/O(LOCK),IVORY,TRIM0#,RH |
71931-60020-A1 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-B1
Support, Front Seat Headrest
[05.2005 - 08.2007] HDJ100,UZJ100..RHD W/O(LOCK),STONE,TRIM1#,LH; HDJ100,UZJ100..LHD W/O(LOCK),STONE,TRIM1#,RH |
71931-60020-B1 |
— | ||
|
71940A
|
71940A
71940-60250-A1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71940-60250-A1 |
US $398.94 |
||
|
71940A
|
71940A
71940-60250-B1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71940-60250-B1 |
US $398.94 |
||
|
71940A
|
71940A
71940-60260-A1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71940-60260-A1 |
US $503.78 |
||
|
71940A
|
71940A
71940-60260-B1 Headrest Assy, Rear SeatREAR SEAT [08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71940-60260-B1 |
US $503.78 |
||
|
71960B
|
71960B
71960-60020-A1 Headrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
71960-60020-A1 |
US $321.78 |
||
|
71960B
|
71960B
71960-60020-B1 Headrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
71960-60020-B1 |
US $321.78 |
||
|
71960B
|
71960B
71960-60030-A1 Headrest Assy, Rear Seat, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),IVORY,TRIM0# |
71960-60030-A1 |
US $406.22 |
||
|
71960B
|
71960B
71960-60030-B1 Headrest Assy, Rear Seat, CenterREAR SEAT, CENTER [08.2002 - 05.2005] HDJ100,UZJ100..VX W(LEATHER SEAT),STONE,TRIM1# |
71960-60030-B1 |
US $406.22 |
