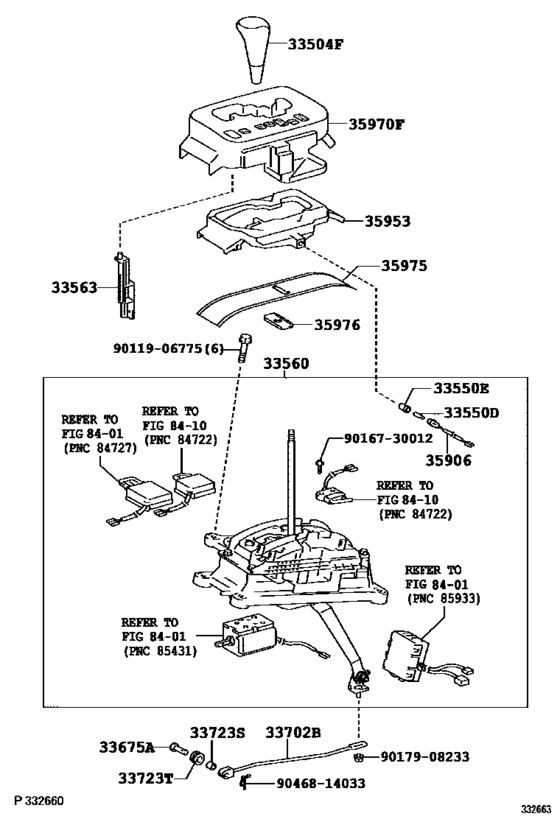

Shift Lever & Retainer ([05.2005 - ] (0505- )LHD..5FC) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-60180-C0 Knob Sub-Assy, Shift Lever[08.2002 - 05.2005] HDJ100,UZJ100..5FC BLACK,TRIM0#,1# |
33504-60180-C0 |
from US $118.08 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.2002 - 05.2005] HDJ100,UZJ100..5FC 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.01 |
||
|
33550E
|
33550E
90339-04049 Cap, Position Indicator Lamp[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
90339-04049 |
from US $1.50 |
||
|
33560
|
33560
33560-60070 Unit Assy, Shift Lock ControlSHIFT LOCK CONTROL [07.2003 - 07.2004] HDJ100..LHD..5FC |
33560-60070 |
US $495.04 |
||
|
33560
|
33560
33560-60080
Unit Assy, Shift Lock Control
[07.2004 - 05.2005] HDJ100..LHD..5FC |
33560-60080 |
— | ||
|
33563
|
33563
33563-60090
Button, Shift Lock Release
[07.2004 - 05.2005] HDJ100,UZJ100..LHD..5FC |
33563-60090 |
— | ||
|
33675A
|
33675A
90240-08054 Pin, W/hole (For Transmission Control Rod)[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
90240-08054 |
from US $1.79 |
||
|
33702B
|
33702B
33702-60100
Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)
[07.2003 - 05.2005] HDJ100..5FC |
33702-60100 |
— | ||
|
33723S
|
33723S
90389-08005 Bushing(For Gear Selecting Rod)[08.2002 - 05.2005] HDJ100,UZJ100..ATM |
90389-08005 |
from US $1.73 |
||
|
33723T
|
33723T
90480-17177 Grommet (For Transmission Control Rod)[08.2002 - 05.2005] HDJ100,UZJ100..ATM |
90480-17177 |
from US $2.03 |
||
|
35906
|
35906
35906-60130 Wire Sub-Assy, Indicator Lamp[07.2004 - 05.2005] HDJ100,UZJ100..5FC |
35906-60130 |
US $5.24 |
||
|
35906
|
35906
35906-60140 Wire Sub-Assy, Indicator LampINDICATOR LAMP [08.2002 - 07.2004] HDJ100,UZJ100..5FC |
35906-60140 |
US $24.46 |
||
|
35953
|
35953
35953-60020 Guide, Position Indicator LightPOSITION INDICATOR LIGHT [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC |
35953-60020 |
US $39.49 |
||
|
35970F
|
35970F
35970-60040
Housing Assy, Position Indicator
[08.2002 - 07.2004] HDJ100,UZJ100..LHD..5FC |
35970-60040 |
— | ||
|
35970F
|
35970F
35970-60050 Housing Assy, Position IndicatorPOSITION INDICATOR [07.2004 - 05.2005] HDJ100,UZJ100..LHD..5FC |
35970-60050 |
from US $164.56 |
||
|
35975
|
35975
35975-30230 Cover, Slide (For Position Indicator)[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
35975-30230 |
US $23.24 |
||
|
35976
|
35976
35976-22060 Cover, Slide, No.2 (For Position Indicator)[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
35976-22060 |
from US $4.94 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.05 |
||
|
9016730012
|
9016730012
90167-30012 New Genuine Part |
90167-30012 |
US $1.46 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.87 |
