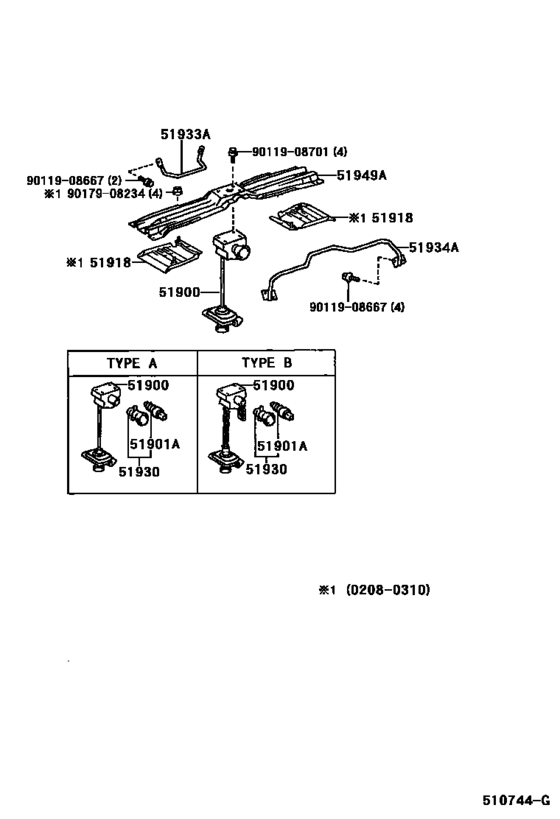

Spare Wheel Carrier ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-60242
Carrier Assy, Spare Wheel
[08.2002 - 06.2004] HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION & W(LOCK) |
51900-60242 |
— | ||
| replacement | |||||
|
51900
|
51900
51900-60243 Carrier Assy, Spare Wheel[08.2002 - 06.2004] HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION & W(LOCK) |
51900-60243 |
from US $95.04 |
||
|
51900
|
51900
51900-60243 Carrier Assy, Spare Wheel[07.2004 - 05.2005] HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION & W(LOCK) |
51900-60243 |
from US $95.04 |
||
|
51900
|
51900
51900-60270 Carrier Assy, Spare Wheel[08.2002 - 05.2005] HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION & W(LOCK) |
51900-60270 |
from US $74.59 |
||
|
51901A
|
51901A
51901-0W010
Key Sub-Assy, Spare Wheel Carrier
[08.2002 - 05.2005] HDJ100,UZJ100 |
51901-0W010 |
— | ||
|
51930
|
51930
51930-0W010
Lock Assy, Spare Wheel Carrier
[08.2002 - 05.2005] HDJ100,UZJ100 |
51930-0W010 |
— | ||
| replacement | |||||
|
51930
|
51930
51930-0W011 Lock Assy, Spare Wheel Carrier[08.2002 - 05.2005] HDJ100,UZJ100 |
51930-0W011 |
from US $83.64 |
||
|
51930
|
51930
51930-0W011 Lock Assy, Spare Wheel Carrier[08.2006 - 08.2007] HDJ100,UZJ100 |
51930-0W011 |
from US $83.64 |
||
|
51933A
|
51933A
51933-60141 Stopper, Spare Wheel, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
51933-60141 |
US $28.48 |
||
|
51934A
|
51934A
51904-60061 Stopper, Spare Wheel, No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
51904-60061 |
US $101.92 |
||
|
51949A
|
51949A
51281-60110 Crossmember, Spare Wheel Carrier[08.2002 - 10.2003] HDJ100,UZJ100 |
51281-60110 |
US $270.23 |
||
|
51949A
|
51949A
51281-60111 Crossmember, Spare Wheel Carrier[10.2003 - 05.2005] HDJ100,UZJ100 |
51281-60111 |
US $291.20 |
||
|
9011908667
|
9011908667
90119-08667 BOLT |
90119-08667 |
from US $1.20 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.99 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.80 |
||
