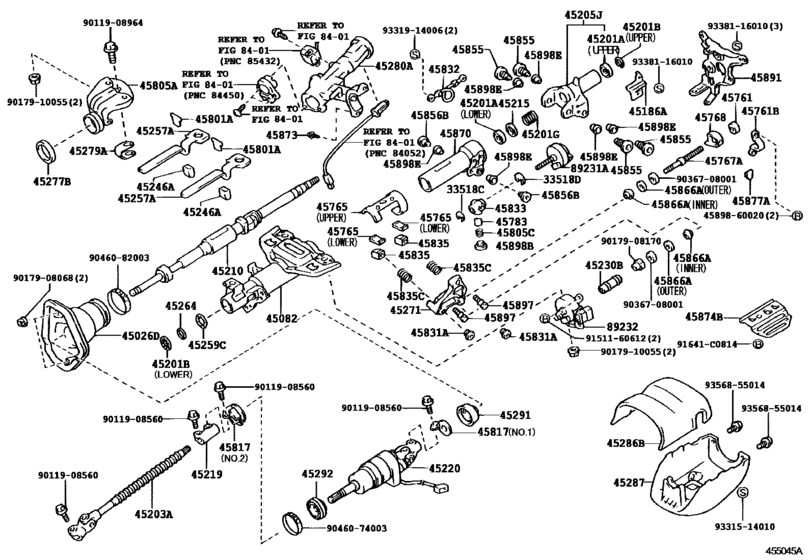

Steering Column & Shaft ([08.2002 - ] POWER TILT STEERING & W(VGRS) (0208- )5FC) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33518C
|
33518C
90523-06019 Ring, E (For Upper Control Shaft Piece Bush)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
90523-06019 |
US $3.94 |
||
|
33518D
|
33518D
90523-08001 E Ring (For Tilt Motor Shaft, Lower)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
90523-08001 |
from US $1.40 |
||
|
45026D
|
45026D
45025-60100 Cover Sub-Assy, Steering Column HoleSTEERING COLUMN HOLE [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
45025-60100 |
US $78.62 |
||
|
45026D
|
45026D
45025-60150 Cover Sub-Assy, Steering Column HoleSTEERING COLUMN HOLE [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC W(*VGRS) |
45025-60150 |
US $75.24 |
||
|
45082
|
45082
45082-60031 Bracket Sub-Assy, Break Away W/capsule[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45082-60031 |
US $103.38 |
||
|
45186A
|
45186A
45816-60020 Bracket, Connector, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45816-60020 |
US $3.35 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[08.2002 - 05.2005] HDJ100,UZJ100 LOWER |
90363-18005 |
from US $5.59 |
||
|
45201A
|
45201A
90363-18009 Bearing(For Steering Main Shaft)[08.2002 - 05.2005] HDJ100,UZJ100 UPPER |
90363-18009 |
from US $7.16 |
||
|
45201A
|
45201A
90363-18012 Bearing(For Steering Main Shaft)[05.2005 -] HDJ100,UZJ100 W(POWER TILT STEERING),LOWER |
90363-18012 |
US $8.88 |
||
|
45201B
|
45201B
45263-60040 Ring, Shaft Snap(For Steering Main Shaft)[08.2002 - 05.2005] HDJ100,UZJ100..5FC T=0.5,W(POWER TILT STEERING) & W(*VGRS),LOWER |
45263-60040 |
from US $2.55 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.2002 - 05.2005] HDJ100,UZJ100..VX T=1.20,W(POWER TILT STEERING),UPPER; HDJ100..5FC;HDJ100..STD T=1.20,MANUAL TILT STEERING |
90520-17042 |
from US $0.80 |
||
|
45201B
|
45201B
90905-20003 Ring, Shaft Snap(For Steering Main Shaft)[08.2002 - 05.2005] HDJ100,UZJ100..VX T=0.5,W(POWER TILT STEERING) & W/O(*VGRS),LOWER |
90905-20003 |
from US $1.24 |
||
|
45201G
|
45201G
90501-40017 Spring, Compression(For Steering Main Shaft)[08.2002 - 05.2005] HDJ100,UZJ100 |
90501-40017 |
from US $3.27 |
||
|
45203A
|
45203A
45203-60090 Shaft, Steering Intermediate, No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
45203-60090 |
from US $201.99 |
||
|
45203A
|
45203A
45203-60110 Shaft, Steering Intermediate, No.2[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(*VGRS) |
45203-60110 |
from US $205.90 |
||
|
45205J
|
45205J
45205-60180 Tube Sub-Assy, Steering Column, Upper[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45205-60180 |
US $64.06 |
||
|
45210
|
45210
45210-60091 Shaft Assy, Steering Main[12.2002 - 05.2005] HDJ100,UZJ100 |
45210-60091 |
from US $226.31 |
||
|
45210
|
45210
45210-60101 Shaft Assy, Steering Main[08.2002 - 05.2005] HDJ100,UZJ100..VX W(POWER TILT STEERING) |
45210-60101 |
from US $227.15 |
||
|
45210
|
45210
45210-60190 Shaft Assy, Steering Main[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(MANUAL TILT STEERING & *VGRS) |
45210-60190 |
US $227.14 |
||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[08.2002 - 05.2005] HDJ100,UZJ100 |
45215-12010 |
from US $1.46 |
||
|
45219
|
45219
45219-60080 Yoke, Steering Sliding[08.2002 - 05.2005] HDJ100,UZJ100 |
45219-60080 |
from US $12.94 |
||
|
45220
|
45220
45220-60110 Shaft Assy, Steering Intermediate[08.2002 - 05.2005] HDJ100,UZJ100 |
45220-60110 |
from US $223.52 |
||
|
45220
|
45220
45220-60200
Shaft Assy, Steering Intermediate
[11.2002 - 10.2003] HDJ100,UZJ100..5FC W(*VGRS) |
45220-60200 |
— | ||
| replacement | |||||
|
45220
|
45220
45220-60202 Shaft Assy, Steering Intermediate[11.2002 - 10.2003] HDJ100,UZJ100..5FC W(*VGRS) |
45220-60202 |
from US $2,282.15 |
||
|
45220
|
45220
45220-60201
Shaft Assy, Steering Intermediate
[10.2003 - 05.2005] HDJ100,UZJ100..5FC W(*VGRS) |
45220-60201 |
— | ||
| replacement | |||||
|
45220
|
45220
45220-60202 Shaft Assy, Steering Intermediate[10.2003 - 05.2005] HDJ100,UZJ100..5FC W(*VGRS) |
45220-60202 |
from US $2,282.15 |
||
|
45220
|
45220
45220-60202 Shaft Assy, Steering Intermediate[02.2007 -] HDJ100,UZJ100..5FC W(*VGRS) |
45220-60202 |
from US $2,282.15 |
||
|
45230B
|
45230B
45230-50020 Joint Assy, Steering Shaft Universal[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45230-50020 |
from US $5.99 |
||
|
45246A
|
45246A
45246-12110 Guide, Steering Energy Absorbing Plate[08.2002 - 11.2003] HDJ100,UZJ100 |
45246-12110 |
US $3.06 |
||
|
45246A
|
45246A
45246-50040 Guide, Steering Energy Absorbing Plate[08.2002 - 11.2003] HDJ100,UZJ100..VX W(POWER TILT STEERING) |
45246-50040 |
US $2.33 |
||
|
45257A
|
45257A
45257-12070 Plate, Steering Column Energy Absorbing[08.2002 - 05.2005] HDJ100,UZJ100 |
45257-12070 |
US $5.24 |
||
|
45259C
|
45259C
45259-60020 Sheet, Steering Main Shaft Bearing[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(POWER TILT STEERING & *VGRS) |
45259-60020 |
US $1.46 |
||
|
45264
|
45264
45264-60020 Ring, Steering Column, No.2[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(POWER TILT STEERING & *VGRS) |
45264-60020 |
US $1.46 |
||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[08.2002 - 05.2005] HDJ100,UZJ100 |
45271-12060 |
US $15.05 |
||
|
45271
|
45271
45271-60030 Clamp, Steering Column, Upper[08.2002 - 05.2005] HDJ100,UZJ100..VX W(POWER TILT STEERING) |
45271-60030 |
US $53.73 |
||
|
45277B
|
45277B
45848-60010 Cushion(For Tilt Steering Support)[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(*VGRS) |
45848-60010 |
US $3.49 |
||
|
45279A
|
45279A
45279-33030 Attachment, Steering Column Tube, Lwr[08.2002 - 05.2005] HDJ100,UZJ100 |
45279-33030 |
US $0.86 |
||
|
45280A
|
45280A
45280-60580 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [08.2002 - 07.2004] HDJ100,UZJ100..5FC |
45280-60580 |
US $215.49 |
||
| replacement | |||||
|
45280A
|
45280A
45280-60590 Bracket Assy, Steering Column, UpperManual tilt steering [08.2002 - 07.2004] HDJ100,UZJ100..5FC |
45280-60590 |
from US $227.13 |
||
|
45280A
|
45280A
45280-60590 Bracket Assy, Steering Column, UpperManual tilt steering [07.2004 - 05.2005] HDJ100,UZJ100..5FC |
45280-60590 |
from US $227.13 |
||
|
45280A
|
45280A
45280-60600
Bracket Assy, Steering Column, Upper
[08.2002 - 07.2004] HDJ100,UZJ100..5FC W(POWER TILT STEERING) |
45280-60600 |
— | ||
| replacement | |||||
|
45280A
|
45280A
45280-60610 Bracket Assy, Steering Column, UpperPower tilt steering [08.2002 - 07.2004] HDJ100,UZJ100..5FC W(POWER TILT STEERING) |
45280-60610 |
from US $242.06 |
||
|
45280A
|
45280A
45280-60610 Bracket Assy, Steering Column, UpperPower tilt steering [07.2004 - 05.2005] HDJ100,UZJ100..5FC W(POWER TILT STEERING) |
45280-60610 |
from US $242.06 |
||
|
45286B
|
45286B
45286-60340-B1 Cover, Steering Column, Upr[08.2002 - 05.2005] HDJ100,UZJ100 DK.GRAY,TRIM1# |
45286-60340-B1 |
from US $30.58 |
||
|
45286B
|
45286B
45286-60340-E1
Cover, Steering Column, Upr
[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
45286-60340-E1 |
— | ||
| replacement | |||||
|
45286B
|
45286B
45286-60340-B1 Cover, Steering Column, Upr[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
45286-60340-B1 |
from US $30.58 |
||
|
45287
|
45287
45287-60331-B1 Cover, Steering Column, Lwr[08.2002 - 05.2005] HDJ100,UZJ100..5FC DK.GRAY,TRIM1#; HDJ100..4FC,5F W(MANUAL TILT STEERING),DK.GRAY,TRIM1# |
45287-60331-B1 |
US $30.58 |
||
|
45287
|
45287
45287-60331-E1
Cover, Steering Column, Lwr
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0# |
45287-60331-E1 |
— | ||
| replacement | |||||
|
45287
|
45287
45287-60331-B1 Cover, Steering Column, Lwr[08.2002 - 05.2005] HDJ100,UZJ100..VX W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0# |
45287-60331-B1 |
US $30.58 |
||
|
45287
|
45287
45287-60341-B1 Cover, Steering Column, Lwr[08.2002 - 05.2005] HDJ100,UZJ100..VX W(POWER TILT STEERING),DK.GRAY,TRIM1# |
45287-60341-B1 |
US $28.30 |
||
|
45287
|
45287
45287-60341-E1 Cover, Steering Column, Lwr[08.2002 - 05.2005] HDJ100,UZJ100..5FC SANDAL WOOD,TRIM0#; HDJ100..(4FC,5F)..VX W(POWER TILT STEERING),SANDAL WOOD,TRIM0# |
45287-60341-E1 |
US $28.30 |
||
|
45291
|
45291
45282-60020 Seal, Main Shaft Upper Dust[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
45282-60020 |
US $4.73 |
||
|
45292
|
45292
45292-60100
Seal, Main Shaft Lower Dust
[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
45292-60100 |
— | ||
| replacement | |||||
|
45292
|
45292
45292-60160 Seal, Main Shaft Lower Dust[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
45292-60160 |
from US $7.03 |
||
|
45292
|
45292
45292-60160 Seal, Main Shaft Lower Dust[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(*VGRS) |
45292-60160 |
from US $7.03 |
||
|
45761
|
45761
45761-60010 Slider, Telescopic Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45761-60010 |
from US $4.43 |
||
|
45761B
|
45761B
45766-60011 Support, Telescopic Steering Slider[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45766-60011 |
US $4.89 |
||
|
45765
|
45765
45765-60011 Guide, Telescopic Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX UPPER |
45765-60011 |
from US $9.71 |
||
|
45765
|
45765
45765-60021 Guide, Telescopic Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX LOWER |
45765-60021 |
from US $1.24 |
||
|
45767A
|
45767A
45811-60010 Screw, Telescopic Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45811-60010 |
US $8.74 |
||
|
45768
|
45768
45768-60011 Bush, Telescopic Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45768-60011 |
from US $2.49 |
||
|
45783
|
45783
45783-60010 Stopper, Tilt Steering, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45783-60010 |
from US $1.24 |
||
|
45801A
|
45801A
45875-12010 Support Sub-Assy, Steering Post[08.2002 - 05.2005] HDJ100,UZJ100 |
45875-12010 |
US $1.31 |
||
|
45805A
|
45805A
45805-60010 Support Sub-Assy, Tilt Steering[08.2002 - 05.2005] HDJ100,UZJ100 |
45805-60010 |
US $35.38 |
||
|
45805A
|
45805A
45805-60020 Support Sub-Assy, Tilt Steering[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(*VGRS) |
45805-60020 |
US $50.23 |
||
|
45805C
|
45805C
90504-14007 Spring, Compression(For Tilt Steering Support)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
90504-14007 |
from US $1.75 |
||
|
45817
|
45817
45808-60010 Stopper, Steering Shaft Thrust[08.2002 - 05.2005] HDJ100,UZJ100..5FC W(*VGRS),NO.2 |
45808-60010 |
US $122.30 |
||
|
45817
|
45817
45817-60020 Stopper, Steering Shaft Thrust[08.2002 - 05.2005] HDJ100,UZJ100 NO.1 |
45817-60020 |
from US $9.26 |
||
|
45817
|
45817
45817-60040 Stopper, Steering Shaft Thrust[08.2002 - 05.2005] HDJ100,UZJ100 NO.2 |
45817-60040 |
US $10.13 |
||
|
45831A
|
45831A
45831-60010 Bolt, Telescope Lever Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45831-60010 |
US $4.02 |
||
|
45832
|
45832
45832-60010 Cable, Tilt Steering Support Bond[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45832-60010 |
US $6.58 |
||
|
45833
|
45833
45833-60010 Nut, Tilt Steering Adjusting, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45833-60010 |
US $14.33 |
||
|
45835
|
45835
45835-60010 Wedge, Lock[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45835-60010 |
US $4.89 |
||
|
45835C
|
45835C
90501-23140 Spring, Compression(For Steering Telescopic Wedge Lock)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
90501-23140 |
US $2.18 |
||
|
45855
|
45855
45855-35010 Bolt, Tilt Steering, No.1[08.2002 - 05.2005] HDJ100,UZJ100 OD=10 |
45855-35010 |
from US $4.10 |
||
|
45855
|
45855
45855-60010 Bolt, Tilt Steering, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX OD=11.993-11.979 |
45855-60010 |
from US $3.25 |
||
|
45856B
|
45856B
45856-42010 Shaft, T1Lt Steering, No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
45856-42010 |
US $4.08 |
||
|
45856B
|
45856B
45856-60010 Shaft, T1Lt Steering, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX W(POWER TILT STEERING) |
45856-60010 |
from US $2.76 |
||
|
45866A
|
45866A
45866-60010 Stopper, Steering Main Shaft Bush[08.2002 - 05.2005] HDJ100,UZJ100..VX INNER |
45866-60010 |
US $1.97 |
||
|
45866A
|
45866A
45866-60020 Stopper, Steering Main Shaft Bush[08.2002 - 05.2005] HDJ100,UZJ100..VX OUTER |
45866-60020 |
US $1.97 |
||
|
45870
|
45870
45870-60130 Tube Assy, Steering Column[08.2002 - 05.2005] HDJ100,UZJ100 |
45870-60130 |
US $103.38 |
||
|
45870
|
45870
45870-60160 Tube Assy, Steering Column[08.2002 - 05.2005] HDJ100,UZJ100..VX W(POWER TILT STEERING) |
45870-60160 |
US $64.06 |
||
|
45873
|
45873
45873-60010 Stopper, Steering Column Tube[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45873-60010 |
US $2.48 |
||
|
45874B
|
45874B
45874-60010 Protector, Steering Column, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45874-60010 |
US $13.40 |
||
|
45877A
|
45877A
45877-60011 Spacer, Steering Column Bracket[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45877-60011 |
US $2.04 |
||
|
45891
|
45891
45891-60030 Bracket, Turn Signal[08.2002 - 05.2005] HDJ100,UZJ100 |
45891-60030 |
US $15.72 |
||
|
45891
|
45891
45891-60040 Bracket, Turn Signal[08.2002 - 05.2005] HDJ100,UZJ100..VX W(POWER TILT STEERING) |
45891-60040 |
US $13.10 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.2002 - 05.2005] HDJ100,UZJ100 |
45897-12020 |
from US $2.62 |
||
|
45898B
|
45898B
45898-60010 Bolt, Tilt Steering Support Stopper[08.2002 - 05.2005] HDJ100,UZJ100..VX |
45898-60010 |
from US $1.88 |
||
|
45898E
|
45898E
90389-08124 Bush(For Tilt Steering Support Bolt)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
90389-08124 |
from US $2.15 |
||
|
89231A
|
89231A
89231-60021 Motor, Power Tilt[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89231-60021 |
US $297.02 |
||
| replacement | |||||
|
89231A
|
89231A
89231-60022 Motor, Power Tilt[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89231-60022 |
from US $261.38 |
||
|
89231A
|
89231A
89231-60022 Motor, Power Tilt[12.2006 -] HDJ100,UZJ100 |
89231-60022 |
from US $261.38 |
||
|
89232
|
89232
89232-60021
Motor, Power Telescopic
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89232-60021 |
— | ||
| replacement | |||||
|
89232
|
89232
89232-60022 Motor, Power Telescopic[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89232-60022 |
from US $265.72 |
||
|
89232
|
89232
89232-60022 Motor, Power Telescopic[12.2006 -] HDJ100,UZJ100 |
89232-60022 |
from US $265.72 |
||
|
91641C0814
|
91641C0814
91641-C0814 BOLTWWASHER |
91641-C0814 |
US $1.65 |
||
|
4589860020
|
4589860020
45898-60020
New Genuine Part
|
45898-60020 |
— | ||
| replacement | |||||
|
4589860020
|
4589860020
90105-06251 New Genuine Part |
90105-06251 |
US $0.87 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.10 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9011908964
|
9011908964
90119-08964 New Genuine Part |
90119-08964 |
US $1.31 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.78 |
||
|
9017908170
|
9017908170
90179-08170 NUT |
90179-08170 |
US $1.60 |
||
|
9017910055
|
9017910055
90179-10055 NUT |
90179-10055 |
US $2.62 |
||
|
9036708001
|
9036708001
90367-08001 Bearing |
90367-08001 |
US $3.94 |
||
|
9046074003
|
9046074003
90460-74003 CLAMP HOSE |
90460-74003 |
US $4.73 |
||
|
9046082003
|
9046082003
90460-82003 CLAMP HOSE |
90460-82003 |
US $4.95 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
