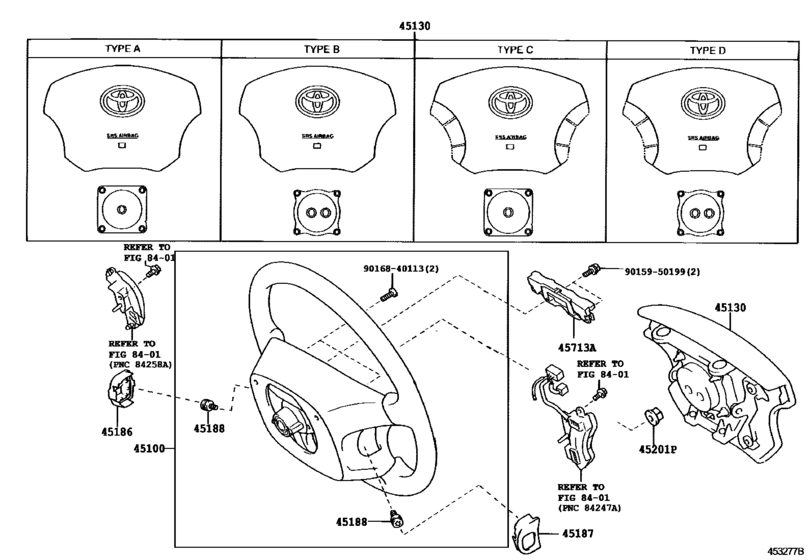

Steering Wheel ([08.2002 - ] 4-SPOKE (0208- )VX) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-60490-B0
Wheel Assy, Steering
[08.2002 - 05.2005] HDJ100,UZJ100..VX 4-SPOKE,LEATHER,DK.GRAY,TRIM1# |
45100-60490-B0 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-60490-C0 Wheel Assy, Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX 4-SPOKE,LEATHER,DK.GRAY,TRIM1# |
45100-60490-C0 |
US $903.30 |
||
|
45100
|
45100
45100-60490-E0 Wheel Assy, Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
45100-60490-E0 |
US $835.16 |
||
|
45130
|
45130
45130-60281-B0
Button Assy, Horn
[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60281-B0 |
— | ||
|
45130
|
45130
45130-60281-E0 Button Assy, HornHORN [08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE A:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60281-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60290-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60290-B0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60291-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60291-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60290-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60290-E0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60291-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60291-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60291-B0 Button Assy, Horn[11.2005 - 08.2007] HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60291-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60291-E0 Button Assy, Horn[11.2005 - 08.2007] HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60291-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60301-B0 Button Assy, HornHORN [08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE C:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60301-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60301-E0
Button Assy, Horn
[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE C:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60301-E0 |
— | ||
|
45130
|
45130
45130-60320-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE D:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60320-B0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60321-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE D:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60321-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60320-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE D:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60320-E0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60321-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ100,UZJ100..VX TYPE D:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60321-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60321-B0 Button Assy, Horn[11.2005 - 08.2007] HDJ100,UZJ100 TYPE D:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
45130-60321-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60321-E0 Button Assy, Horn[11.2005 - 08.2007] HDJ100,UZJ100 TYPE D:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
45130-60321-E0 |
US $1,039.58 |
||
|
45186
|
45186
45186-58020-B0 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.GRAY,TRIM1# |
45186-58020-B0 |
from US $3.82 |
||
|
45186
|
45186
45186-58020-E1 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
45186-58020-E1 |
US $5.73 |
||
| replacement | |||||
|
45186
|
45186
45186-58020-B0 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
45186-58020-B0 |
from US $3.82 |
||
|
45187
|
45187
45187-58010-B0 Cover, Steering Wheel, Lower No.3[08.2002 - 05.2005] HDJ100,UZJ100 DK.GRAY,TRIM1# |
45187-58010-B0 |
US $3.76 |
||
|
45187
|
45187
45187-58010-E1
Cover, Steering Wheel, Lower No.3
[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
45187-58010-E1 |
— | ||
| replacement | |||||
|
45187
|
45187
45187-58010-B0 Cover, Steering Wheel, Lower No.3[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
45187-58010-B0 |
US $3.76 |
||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[08.2002 - 05.2005] HDJ100,UZJ100 L=18 |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[08.2002 - 05.2005] HDJ100,UZJ100 |
90179-12071 |
from US $1.48 |
||
|
45713A
|
45713A
45713-60030 Damper, Steering Shake[08.2002 - 05.2005] HDJ100..ATM |
45713-60030 |
US $39.98 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.51 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $1.08 |
||
