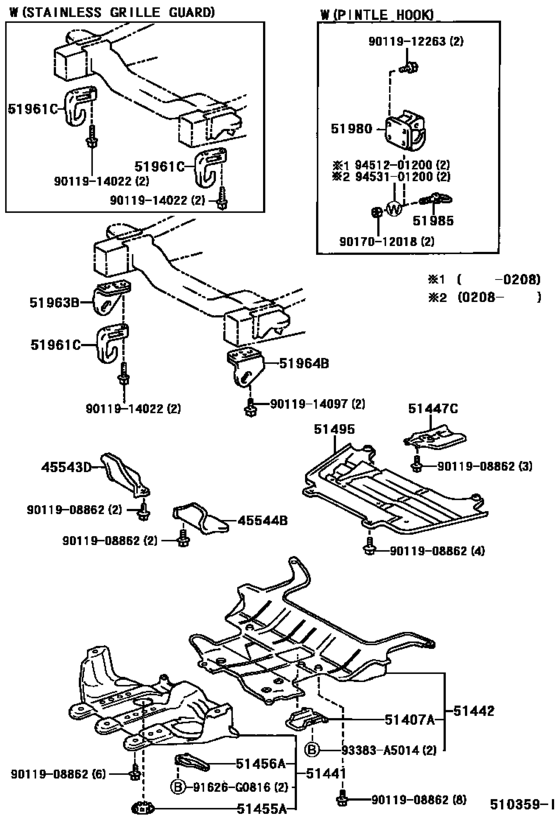

Suspension Crossmember & Under Cover ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45543D
|
45543D
45543-60010 Protector, Steering Rack Boot, Rh[08.2002 - 05.2005] HDJ100,UZJ100 |
45543-60010 |
US $27.26 |
||
|
45544B
|
45544B
45544-60010 Protector, Steering Rack Boot, Lh[08.2002 - 05.2005] HDJ100,UZJ100 |
45544-60010 |
from US $24.64 |
||
|
51407A
|
51407A
51407-60050 Cover Sub-Assy, Engine Under, No.3[08.2002 - 05.2005] HDJ100 |
51407-60050 |
US $50.96 |
||
|
51441
|
51441
51410-60030 Cover, Engine Under, No.1[08.2002 - 05.2005] HDJ100 |
51410-60030 |
from US $322.72 |
||
|
51442
|
51442
51420-60020 Cover, Engine Under, No.2[08.2002 - 05.2005] HDJ100 |
51420-60020 |
US $843.96 |
||
|
51447C
|
51447C
51447-60050 Protector, Transfer Case[08.2002 - 05.2005] HDJ100,UZJ100 |
51447-60050 |
US $83.52 |
||
|
51455A
|
51455A
51455-60060 Seal, Engine Under Cover, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
51455-60060 |
US $12.23 |
||
|
51495
|
51495
58260-60130 Cover, Transmission Under[08.2002 - 05.2005] HDJ100..ATM |
58260-60130 |
from US $283.75 |
||
|
51963B
|
51963B
51963-60030 Hook, Transport, Front Rh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
51963-60030 |
US $34.51 |
||
|
51964B
|
51964B
51964-60030 Hook, Transport, Front Lh[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
51964-60030 |
US $34.51 |
||
|
51980
|
51980
51980-60012 Hook Assy, Pintle[08.2002 - 05.2005] UZJ100..LHD;HDJ100..ATM;HDJ100..LHD..5F |
51980-60012 |
from US $235.20 |
||
|
51985
|
51985
51985-60011 Hook, Eyelet Pintle[08.2002 - 05.2005] UZJ100..LHD;HDJ100..ATM;HDJ100..LHD..5F |
51985-60011 |
from US $12.72 |
||
|
91626G0816
|
91626G0816
91626-G0816 BOLT WWASHER |
91626-G0816 |
US $1.75 |
||
| replacement | |||||
|
91626G0816
|
91626G0816
91621-G0816 BOLT WWASHER |
91621-G0816 |
from US $1.20 |
||
|
93383A5014
|
93383A5014
93383-A5014 New Genuine Part |
93383-A5014 |
US $1.97 |
||
|
9011908862
|
9011908862
90119-08862 BOLT WWASHER |
90119-08862 |
from US $2.01 |
||
|
9011912263
|
9011912263
90119-12263 BOLT, WWASHER |
90119-12263 |
from US $1.54 |
||
|
9011914022
|
9011914022
90119-14022 BOLT WWASHER |
90119-14022 |
US $9.32 |
||
|
9011914097
|
9011914097
90119-14097 BOLT WWASHER |
90119-14097 |
US $5.56 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $0.63 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.70 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.72 |
||
