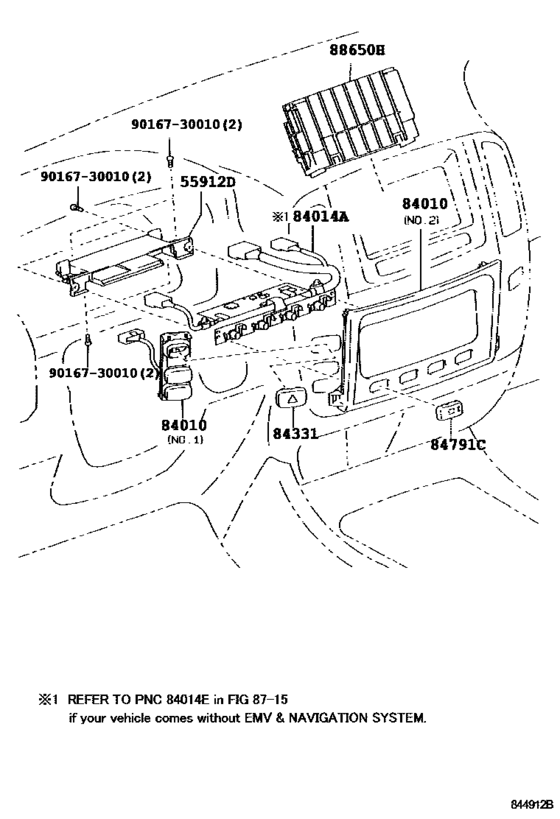

Switch & Relay & Computer ([08.2002 - ] CENTER CLUSTER INTEGRATION (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55912D
|
55912D
55912-60170
Housing, Heater Control
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
55912-60170 |
— | ||
|
84010
|
84010
84010-60480 Switch Assy, Center Cluster Integration[12.2002 - 05.2005] HDJ100,UZJ100 NO.1 |
84010-60480 |
from US $97.41 |
||
|
84010
|
84010
84012-60310
Switch Assy, Center Cluster Integration
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX NO.2 |
84012-60310 |
— | ||
|
84014A
|
84014A
84014-60260
Board Sub-Assy, Printed Wire Integration, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(EMV & NAVIGATION SYSTEM) |
84014-60260 |
— | ||
|
84331
|
84331
84331-60060 Knob, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
84331-60060 |
US $5.64 |
||
|
84791C
|
84791C
84791-60040 Knob, Defogger Time SwitchDEFOGGER TIME SWITCH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
84791-60040 |
US $6.10 |
||
|
88650H
|
88650H
88650-60871
Amplifier Assy, Air Conditioner
[07.2003 - 08.2003] HDJ100..LHD..5FC |
88650-60871 |
— | ||
|
88650H
|
88650H
88650-60C00
Amplifier Assy, Air Conditioner
[05.2005 -] HDJ100..5FC;HDJ100..LHD..5F PART NUMBER LABEL=88650-60C00 |
88650-60C00 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
