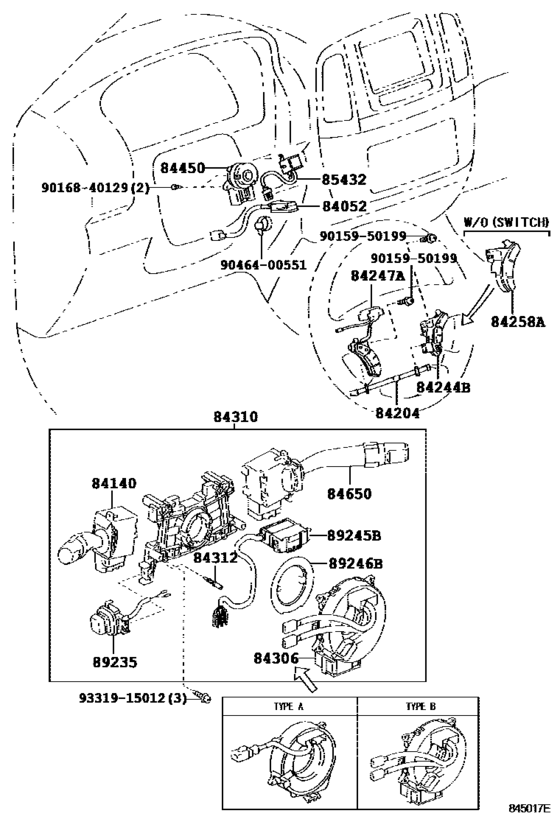

Switch & Relay & Computer ([08.2002 - ] IGNITION & COMBINATION SWITCH (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-33040 Switch Assy, Un-Lock Warning[08.2002 - 05.2005] HDJ100,UZJ100 |
84052-33040 |
US $22.54 |
||
|
84140
|
84140
84140-20560 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(FOG LAMP) |
84140-20560 |
from US $55.47 |
||
|
84140
|
84140
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
84140-26140 |
from US $50.39 |
||
|
84204
|
84204
84204-58010 Cable Sub-Assy, Steering Pad Switch[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
84204-58010 |
from US $33.08 |
||
|
84244B
|
84244B
84244-60061-B0 Switch, Steering Pad, Rh[07.2003 - 08.2003] HDJ100..5FC DK.GRAY,TRIM1# |
84244-60061-B0 |
US $93.18 |
||
| replacement | |||||
|
84244B
|
84244B
84244-60061-C0 Switch, Steering Pad, Rh[07.2003 - 08.2003] HDJ100..5FC DK.GRAY,TRIM1# |
84244-60061-C0 |
from US $48.45 |
||
|
84244B
|
84244B
84244-60061-E0 Switch, Steering Pad, Rh[07.2003 - 08.2003] HDJ100..5FC SANDAL WOOD,TRIM0# |
84244-60061-E0 |
from US $75.71 |
||
|
84247A
|
84247A
84247-58020-B0 Switch, Steering Pad, Lh[07.2003 - 08.2003] HDJ100..5FC W(NAVIGATION SYSTEM),DK.GRAY,TRIM1# |
84247-58020-B0 |
US $132.84 |
||
|
84247A
|
84247A
84247-58020-E1 Switch, Steering Pad, Lh[07.2003 - 08.2003] HDJ100..5FC W(NAVIGATION SYSTEM),SANDAL WOOD,TRIM0# |
84247-58020-E1 |
from US $90.27 |
||
|
84247A
|
84247A
84247-60020-B0 Switch, Steering Pad, Lh[08.2002 - 08.2003] HDJ100,UZJ100..VX DK.GRAY,TRIM1# |
84247-60020-B0 |
US $109.20 |
||
|
84247A
|
84247A
84247-60020-E0 Switch, Steering Pad, Lh[08.2002 - 08.2003] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
84247-60020-E0 |
US $109.20 |
||
| replacement | |||||
|
84247A
|
84247A
84247-60020-B0 Switch, Steering Pad, Lh[08.2002 - 08.2003] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
84247-60020-B0 |
US $109.20 |
||
|
84258A
|
84258A
84258-58010-B0
Cover, Steering Pad, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.GRAY,TRIM1# |
84258-58010-B0 |
— | ||
| replacement | |||||
|
84258A
|
84258A
84258-58010-C0 Cover, Steering Pad, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX DK.GRAY,TRIM1# |
84258-58010-C0 |
US $22.13 |
||
|
84258A
|
84258A
84258-58010-E1 Cover, Steering Pad, Rh[08.2002 - 05.2005] HDJ100,UZJ100..VX SANDAL WOOD,TRIM0# |
84258-58010-E1 |
US $22.89 |
||
|
84306
|
84306
84306-60080 Cable Sub-Assy, Spiral[04.2003 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX TYPE B:REFER TO ILLUSTRATION |
84306-60080 |
from US $165.98 |
||
|
84306
|
84306
84306-60090 Cable Sub-Assy, SpiralSPIRAL [04.2003 - 05.2005] HDJ100,UZJ100..5F,5FC TYPE A:REFER TO ILLUSTRATION |
84306-60090 |
from US $197.58 |
||
|
84310
|
84310
84310-60B10 Switch Assy, Turn SignalTURN SIGNAL [07.2004 - 05.2005] HDJ100,UZJ100..VX |
84310-60B10 |
US $509.60 |
||
|
84310
|
84310
84310-6B160 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B160 |
84310-6B160 |
US $505.23 |
||
|
84310
|
84310
84310-6B200 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B200 |
84310-6B200 |
US $496.50 |
||
|
84310
|
84310
84310-6B250 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B250 |
84310-6B250 |
US $624.62 |
||
|
84310
|
84310
84310-6B260 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC PART NUMBER LABEL=84310-6B260 |
84310-6B260 |
US $615.89 |
||
|
84310
|
84310
84310-6B421 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B421 |
84310-6B421 |
US $601.33 |
||
|
84310
|
84310
84310-6B431 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B431 |
84310-6B431 |
US $637.73 |
||
|
84310
|
84310
84310-6B451 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B451 |
84310-6B451 |
US $540.18 |
||
| replacements | |||||
|
84310
|
84310
84140-20560 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B451 |
84140-20560 |
from US $55.47 |
||
|
84310
|
84310
84306-60090 Cable Sub-Assy, SpiralSPIRAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B451 |
84306-60090 |
from US $197.58 |
||
|
84310
|
84310
84319-33020 Housing, Steering Wheel Switch[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B451 |
84319-33020 |
US $26.79 |
||
|
84310
|
84310
84652-35522 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B451 |
84652-35522 |
from US $110.07 |
||
|
84310
|
84310
84310-6B461 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B461 |
84310-6B461 |
US $483.39 |
||
|
84310
|
84310
84310-6B471 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B471 |
84310-6B471 |
US $529.98 |
||
| replacements | |||||
|
84310
|
84310
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B471 |
84140-26140 |
from US $50.39 |
||
|
84310
|
84310
84306-60090 Cable Sub-Assy, SpiralSPIRAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B471 |
84306-60090 |
from US $197.58 |
||
|
84310
|
84310
84319-33020 Housing, Steering Wheel Switch[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B471 |
84319-33020 |
US $26.79 |
||
|
84310
|
84310
84652-35522 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B471 |
84652-35522 |
from US $110.07 |
||
|
84310
|
84310
84310-6B510 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B510 |
84310-6B510 |
US $636.27 |
||
|
84310
|
84310
84310-6B520 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B520 |
84310-6B520 |
US $662.48 |
||
|
84310
|
84310
84310-6B540 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6B540 |
84310-6B540 |
US $615.89 |
||
|
84310
|
84310
84310-6B620 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC PART NUMBER LABEL=84310-6B620 |
84310-6B620 |
US $618.80 |
||
|
84310
|
84310
84310-6B630 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC PART NUMBER LABEL=84310-6B630 |
84310-6B630 |
US $658.11 |
||
|
84310
|
84310
84310-6B640 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC PART NUMBER LABEL=84310-6B640 |
84310-6B640 |
US $624.62 |
||
|
84310
|
84310
84310-6B650 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC PART NUMBER LABEL=84310-6B650 |
84310-6B650 |
US $662.48 |
||
|
84310
|
84310
84310-6B660 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC PART NUMBER LABEL=84310-6B660 |
84310-6B660 |
US $608.61 |
||
|
84310
|
84310
84310-6B691 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B691 |
84310-6B691 |
US $601.33 |
||
|
84310
|
84310
84310-6B701 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B701 |
84310-6B701 |
from US $650.83 |
||
|
84310
|
84310
84310-6B721 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B721 |
84310-6B721 |
US $550.37 |
||
| replacements | |||||
|
84310
|
84310
84140-20560 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B721 |
84140-20560 |
from US $55.47 |
||
|
84310
|
84310
84306-60090 Cable Sub-Assy, SpiralSPIRAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B721 |
84306-60090 |
from US $197.58 |
||
|
84310
|
84310
84319-33020 Housing, Steering Wheel Switch[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B721 |
84319-33020 |
US $26.79 |
||
|
84310
|
84310
84652-6A020 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B721 |
84652-6A020 |
US $188.75 |
||
|
84310
|
84310
84310-6B731 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B731 |
84310-6B731 |
US $468.83 |
||
|
84310
|
84310
84310-6B751 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC PART NUMBER LABEL=84310-6B751 |
84310-6B751 |
US $540.18 |
||
| replacements | |||||
|
84310
|
84310
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC PART NUMBER LABEL=84310-6B751 |
84140-26140 |
from US $50.39 |
||
|
84310
|
84310
84306-60090 Cable Sub-Assy, SpiralSPIRAL [08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC PART NUMBER LABEL=84310-6B751 |
84306-60090 |
from US $197.58 |
||
|
84310
|
84310
84319-33020 Housing, Steering Wheel Switch[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC PART NUMBER LABEL=84310-6B751 |
84319-33020 |
US $26.79 |
||
|
84310
|
84310
84652-6A020 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC PART NUMBER LABEL=84310-6B751 |
84652-6A020 |
US $188.75 |
||
|
84310
|
84310
84310-6B770 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B770 |
84310-6B770 |
US $618.80 |
||
|
84310
|
84310
84310-6B780 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B780 |
84310-6B780 |
US $658.11 |
||
|
84310
|
84310
84310-6B790 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B790 |
84310-6B790 |
US $636.27 |
||
|
84310
|
84310
84310-6B800 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B800 |
84310-6B800 |
US $675.58 |
||
|
84310
|
84310
84310-6B810 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6B810 |
84310-6B810 |
US $608.61 |
||
|
84310
|
84310
84310-6C030 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..5FC PART NUMBER LABEL=84310-6C030 |
84310-6C030 |
US $618.80 |
||
|
84310
|
84310
84310-6C040 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..5FC PART NUMBER LABEL=84310-6C040 |
84310-6C040 |
US $658.11 |
||
|
84310
|
84310
84310-6C050 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100..5FC;UZJ100..RHD PART NUMBER LABEL=84310-6C050 |
84310-6C050 |
US $636.27 |
||
|
84310
|
84310
84310-6C060 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100..5FC;UZJ100..RHD PART NUMBER LABEL=84310-6C060 |
84310-6C060 |
US $675.58 |
||
|
84310
|
84310
84310-6C070 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..5FC PART NUMBER LABEL=84310-6C070 |
84310-6C070 |
US $608.61 |
||
|
84310
|
84310
84310-6C090 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..5FC PART NUMBER LABEL=84310-6C090 |
84310-6C090 |
US $624.62 |
||
|
84310
|
84310
84310-6C180 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6C180 |
84310-6C180 |
US $646.46 |
||
|
84310
|
84310
84310-6C210 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX PART NUMBER LABEL=84310-6C210 |
84310-6C210 |
US $583.86 |
||
|
84310
|
84310
84310-6C350 Switch Assy, Turn SignalTURN SIGNAL [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX PART NUMBER LABEL=84310-6C350 |
84310-6C350 |
US $596.96 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[08.2002 - 05.2005] HDJ100,UZJ100 |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-35521 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
84652-35521 |
US $126.67 |
||
| replacement | |||||
|
84650
|
84650
84652-35522 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX |
84652-35522 |
from US $110.07 |
||
|
84650
|
84650
84652-60860
Switch Assy, Windshield Wiper
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(HEAD LAMP CLEANER & RAIN SENSOR) |
84652-60860 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-60861 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(HEAD LAMP CLEANER & RAIN SENSOR) |
84652-60861 |
US $202.38 |
||
|
84650
|
84650
84652-6A020 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC W(HEADLAMP CLEANER) |
84652-6A020 |
US $188.75 |
||
|
84650
|
84650
84652-6A030
Switch Assy, Windshield Wiper
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(FRONT FOG LAMP & RAIN SENSER) |
84652-6A030 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-6A031
Switch Assy, Windshield Wiper
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(FRONT FOG LAMP & RAIN SENSER) |
84652-6A031 |
— | ||
|
85432
|
85432
85432-60050 Solenoid, Key Inter Lock[07.2004 - 05.2005] HDJ100,UZJ100..5FC |
85432-60050 |
US $62.38 |
||
|
89235
|
89235
89235-60010 Switch, Tilt Steering[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
89235-60010 |
US $49.62 |
||
|
89245B
|
89245B
89245-33010 Sensor, Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89245-33010 |
from US $301.82 |
||
|
89245B
|
89245B
89245-60020 Sensor, Steering[12.2003 - 05.2005] HDJ100..5FC W(VARIABLE GEAR RATIO STEERING) |
89245-60020 |
US $326.73 |
||
|
89246B
|
89246B
89246-22020 Disc, Sensor Steering[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89246-22020 |
from US $79.06 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.51 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
