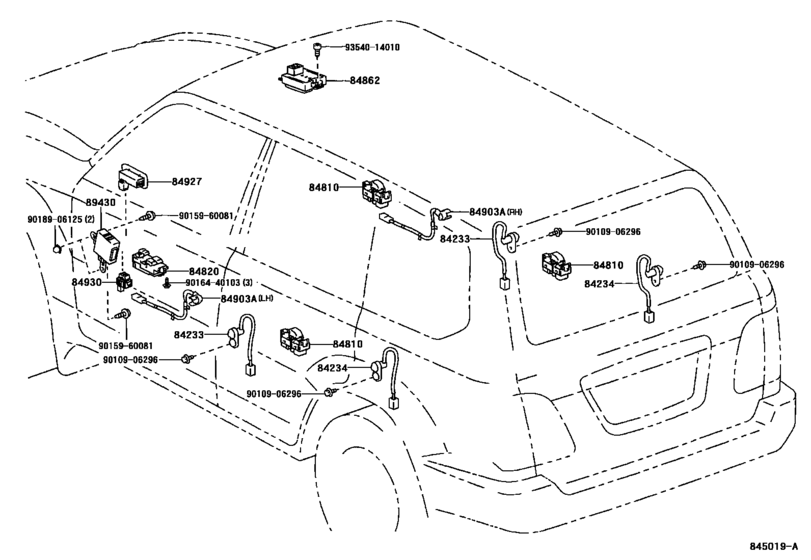

Switch & Relay & Computer ([08.2002 - ] DOOR & ROOF (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] HDJ100,UZJ100 |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] HDJ100,UZJ100 |
84231-60070 |
from US $11.83 |
||
|
84810
|
84810
84030-60060 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2002 - 05.2005] HDJ100,UZJ100 |
84030-60060 |
from US $178.16 |
||
|
84820
|
84820
84040-60090 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2002 - 09.2004] HDJ100,UZJ100..LHD |
84040-60090 |
US $413.50 |
||
| replacement | |||||
|
84820
|
84820
84040-60091 Master Switch Assy, Power Window Regulator[08.2002 - 09.2004] HDJ100,UZJ100..LHD |
84040-60091 |
from US $446.99 |
||
|
84820
|
84820
84040-60091 Master Switch Assy, Power Window Regulator[09.2004 - 05.2005] HDJ100,UZJ100..LHD |
84040-60091 |
from US $446.99 |
||
|
84862
|
84862
84862-60020-A1
Switch, Slide Roof Motor
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
84862-60020-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60020-B1 Switch, Slide Roof Motor[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
84862-60020-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-A1
Switch, Slide Roof Motor
[10.2005 - 08.2007] HDJ100,UZJ100 IVORY,TRIM0# |
84862-60021-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] HDJ100,UZJ100 IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-B1 Switch, Slide Roof Motor[10.2005 - 08.2007] HDJ100,UZJ100 STONE,TRIM1# |
84862-60021-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] HDJ100,UZJ100 STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84903A
|
84903A
84903-60060 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ100,UZJ100..VX LH |
84903-60060 |
US $60.28 |
||
|
84903A
|
84903A
84903-60070 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ100,UZJ100..VX RH |
84903-60070 |
US $62.03 |
||
|
84903A
|
84903A
84903-60080 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ100,UZJ100..VX BACK DOOR |
84903-60080 |
US $43.51 |
||
|
84927
|
84927
84927-60020-B1
Switch, Seat Memory
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX DK.GRAY,TRIM1# |
84927-60020-B1 |
— | ||
|
84927
|
84927
84927-60020-E1 Switch, Seat MemorySEAT MEMORY [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX SANDAL WOOD,TRIM0# |
84927-60020-E1 |
US $87.36 |
||
| replacement | |||||
|
84927
|
84927
84927-60020-B1
Switch, Seat Memory
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX SANDAL WOOD,TRIM0# |
84927-60020-B1 |
— | ||
|
89430
|
89430
89430-60040 Computer Assy, Outer Mirror ControlOUTER MIRROR CONTROL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
89430-60040 |
US $257.71 |
||
| replacement | |||||
|
89430
|
89430
89430-60041
Computer Assy, Outer Mirror Control
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
89430-60041 |
— | ||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.33 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.89 |
||
