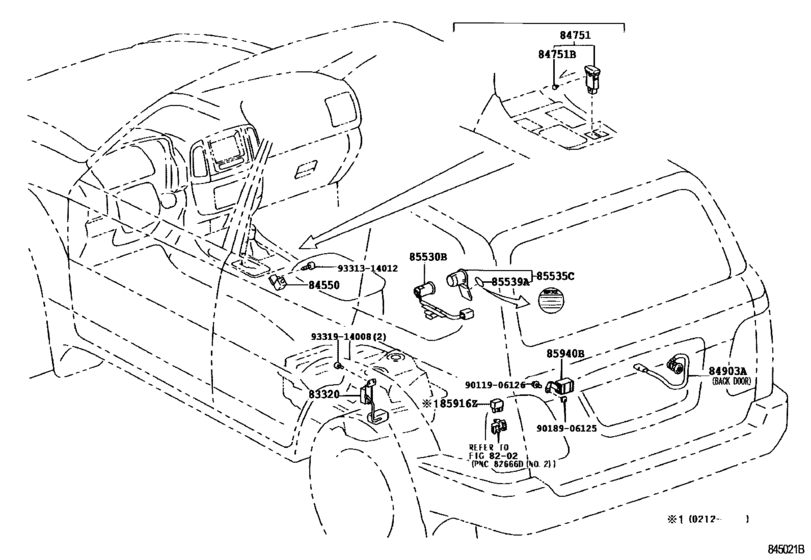

Switch & Relay & Computer ([08.2002 - ] FLOOR & BACK DOOR (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-60340 Gage Assy, Fuel Sender[08.2002 - 05.2005] HDJ100,UZJ100 |
83320-60340 |
from US $128.80 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
84550-33010 |
from US $20.33 |
||
|
84751
|
84751
84751-60090 Switch, Seat Heater[08.2002 - 05.2005] HDJ100..5F..VX;HDJ100,UZJ100..LHD..ATM RH |
84751-60090 |
US $64.47 |
||
|
84751
|
84751
84751-60100 Switch, Seat Heater[08.2002 - 05.2005] HDJ100..5F..VX;HDJ100,UZJ100..LHD..ATM LH |
84751-60100 |
from US $64.47 |
||
|
84751B
|
84751B
84999-10310 Bulb, Air Conditioner Control[08.2002 - 05.2005] HDJ100,UZJ100..VX 14V 0.91W |
84999-10310 |
from US $2.85 |
||
|
84903A
|
84903A
84903-60060 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ100,UZJ100..VX LH |
84903-60060 |
US $60.28 |
||
|
84903A
|
84903A
84903-60070 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ100,UZJ100..VX RH |
84903-60070 |
US $62.03 |
||
|
84903A
|
84903A
84903-60080 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ100,UZJ100..VX BACK DOOR |
84903-60080 |
US $43.51 |
||
|
85530B
|
85530B
85530-60010 Socket Assy, Power Outlet, Rear No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
85530-60010 |
from US $33.16 |
||
|
85535C
|
85535C
85535-60040-A1
Cover, Power Outlet Socket (Ivory)
[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
85535-60040-A1 |
— | ||
| replacement | |||||
|
85535C
|
85535C
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[08.2002 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0# |
85535-60040-C0 |
from US $10.11 |
||
|
85535C
|
85535C
85535-60040-B1
Cover, Power Outlet Socket, Center
[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
85535-60040-B1 |
— | ||
| replacement | |||||
|
85535C
|
85535C
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[08.2002 - 05.2005] HDJ100,UZJ100 STONE,TRIM1# |
85535-60040-C0 |
from US $10.11 |
||
|
85539A
|
85539A
85539-60020 Label, Power Outlet Notice[08.2002 - 05.2005] HDJ100,UZJ100 |
85539-60020 |
US $1.41 |
||
|
85916Z
|
85916Z
90987-02022 Relay, Starter Cut[12.2002 - 05.2005] HDJ100,UZJ100..VX |
90987-02022 |
from US $50.45 |
||
|
85940B
|
85940B
85940-60110 Relay Assy, Rear Wiper[08.2002 - 05.2005] HDJ100,UZJ100..VX |
85940-60110 |
from US $152.88 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.33 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $1.08 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
