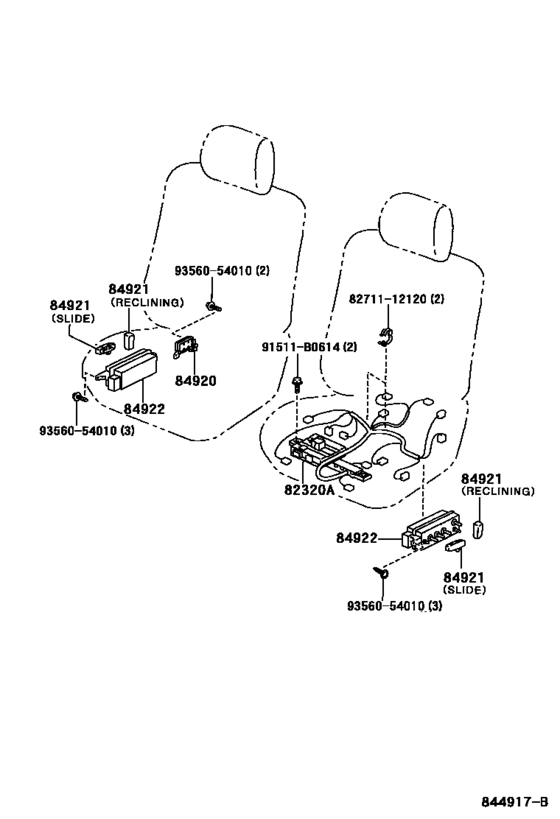

Switch & Relay & Computer ([08.2002 - ] SEAT (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82320A
|
82320A
82320-60020
Computer & Wiring Assy, Position Control
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
82320-60020 |
— | ||
|
84920
|
84920
84920-24020-A1
Switch Assy, Power Seat
[08.2002 - 07.2004] HDJ100,UZJ100..LHD..5FC IVORY,TRIM0#; HDJ100..LHD..(4FC,5F)..VX W(LEATHER SEAT),IVORY,TRIM0# |
84920-24020-A1 |
— | ||
| replacement | |||||
|
84920
|
84920
84920-60070-B0 Switch Assy, Power Seat (Gray)POWER SEAT [08.2002 - 07.2004] HDJ100,UZJ100..LHD..5FC IVORY,TRIM0#; HDJ100..LHD..(4FC,5F)..VX W(LEATHER SEAT),IVORY,TRIM0# |
84920-60070-B0 |
US $70.76 |
||
|
84920
|
84920
84920-24020-B2
Switch Assy, Power Seat
[08.2002 - 07.2004] HDJ100,UZJ100..LHD..5FC STONE,TRIM1#; HDJ100..LHD..(4FC,5F)..VX W(LEATHER SEAT),STONE,TRIM1# |
84920-24020-B2 |
— | ||
| replacement | |||||
|
84920
|
84920
84920-24020-C0
Switch Assy, Power Seat (Black)
[08.2002 - 07.2004] HDJ100,UZJ100..LHD..5FC STONE,TRIM1#; HDJ100..LHD..(4FC,5F)..VX W(LEATHER SEAT),STONE,TRIM1# |
84920-24020-C0 |
— | ||
|
84920
|
84920
84920-60070-A0
Switch Assy, Power Seat
[07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
84920-60070-A0 |
— | ||
| replacement | |||||
|
84920
|
84920
84920-60070-B0 Switch Assy, Power Seat (Gray)POWER SEAT [07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX IVORY,TRIM0# |
84920-60070-B0 |
US $70.76 |
||
|
84920
|
84920
84920-60070-B0 Switch Assy, Power Seat (Gray)POWER SEAT [07.2004 - 05.2005] HDJ100,UZJ100..LHD..VX STONE,TRIM1# |
84920-60070-B0 |
US $70.76 |
||
|
84921
|
84921
84921-33040-A1
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ100,UZJ100..5FC IVORY,TRIM0#,RECLINING; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),IVORY,TRIM0#,RECLINING |
84921-33040-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60130-B0 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ100,UZJ100..5FC IVORY,TRIM0#,RECLINING; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),IVORY,TRIM0#,RECLINING |
84921-60130-B0 |
US $6.64 |
||
|
84921
|
84921
84921-33040-B4
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ100,UZJ100..5FC STONE,TRIM1#,RECLINING; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),STONE,TRIM1#,RECLINING |
84921-33040-B4 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-33040-C0 Knob, Power Seat Switch (For Reclining) (Black)[08.2002 - 06.2004] HDJ100,UZJ100..5FC STONE,TRIM1#,RECLINING; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),STONE,TRIM1#,RECLINING |
84921-33040-C0 |
US $6.84 |
||
|
84921
|
84921
84921-60050-A1
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ100,UZJ100..5FC IVORY,TRIM0#,SLIDE, RH; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),IVORY,TRIM0#,SLIDE, RH |
84921-60050-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ100,UZJ100..5FC IVORY,TRIM0#,SLIDE, RH; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),IVORY,TRIM0#,SLIDE, RH |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60050-B1 Knob, Power Seat Switch[08.2002 - 06.2004] HDJ100,UZJ100..5FC STONE,TRIM1#,SLIDE, RH; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),STONE,TRIM1#,SLIDE, RH |
84921-60050-B1 |
US $11.21 |
||
| replacement | |||||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ100,UZJ100..5FC STONE,TRIM1#,SLIDE, RH; HDJ100..(4FC,5F)..VX W(LEATHER SEAT),STONE,TRIM1#,SLIDE, RH |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60051-A1
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,SLIDE, RH |
84921-60051-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,SLIDE, RH |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1#,SLIDE, RH |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60060-A1
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ100,UZJ100..VX IVORY,TRIM0#,SLIDE, LH |
84921-60060-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ100,UZJ100..VX IVORY,TRIM0#,SLIDE, LH |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60060-B1 Knob, Power Seat Switch[08.2002 - 06.2004] HDJ100,UZJ100..VX STONE,TRIM1#,SLIDE, LH |
84921-60060-B1 |
US $11.21 |
||
| replacement | |||||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ100,UZJ100..VX STONE,TRIM1#,SLIDE, LH |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60061-A1
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,SLIDE, LH |
84921-60061-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,SLIDE, LH |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1#,SLIDE, LH |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60130-A0
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,RECLINING, RH |
84921-60130-A0 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60130-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,RECLINING, RH |
84921-60130-B0 |
US $6.64 |
||
|
84921
|
84921
84921-60130-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1#,RECLINING, RH |
84921-60130-B0 |
US $6.64 |
||
|
84921
|
84921
84921-60140-A0
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,RECLINING, LH |
84921-60140-A0 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60140-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX IVORY,TRIM0#,RECLINING, LH |
84921-60140-B0 |
US $6.64 |
||
|
84921
|
84921
84921-60140-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ100,UZJ100..VX STONE,TRIM1#,RECLINING, LH |
84921-60140-B0 |
US $6.64 |
||
|
84922
|
84922
84922-60090 Switch, Front Power Seat[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX RH |
84922-60090 |
US $144.14 |
||
|
84922
|
84922
84922-60150 Switch, Front Power SeatFRONT POWER SEAT [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX LH |
84922-60150 |
from US $133.63 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
8271112120
|
8271112120
82711-12120 Clamp(Rear Seat) |
82711-12120 |
US $3.40 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
