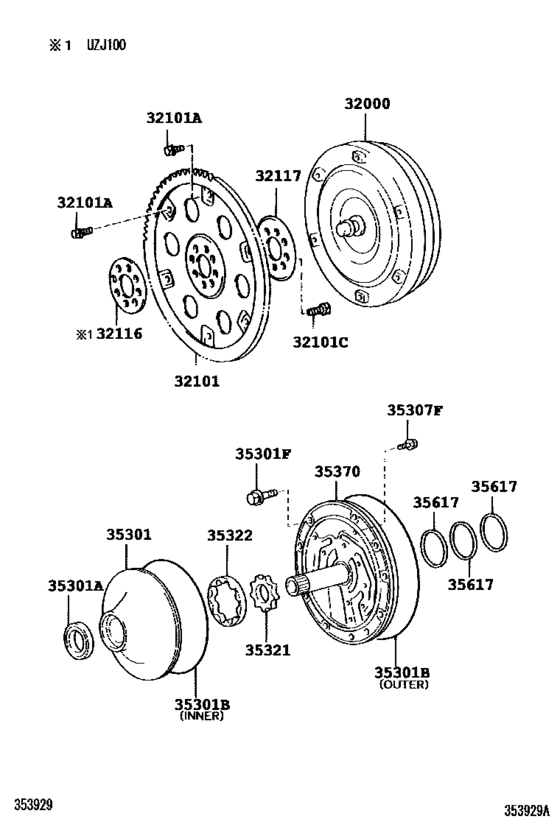

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2002 - ] A750F (0208- )5FC) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-60290 Converter Assy, Torque[07.2003 - 05.2005] HDJ100..5FC |
32000-60290 |
from US $1,589.49 |
||
|
32101
|
32101
32101-60040 Gear Sub-Assy, Drive Plate & Ring[08.2002 - 05.2005] HDJ100..ATM |
32101-60040 |
US $334.88 |
||
|
32101A
|
32101A
90119-10789 Bolt(For Drive Plate & Torque Converter Setting)[08.2002 - 05.2005] HDJ100..ATM *10-1.25PX14-9,GREEN OR BLACK |
90119-10789 |
US $1.38 |
||
|
32101A
|
32101A
90119-10790
Bolt(For Drive Plate & Torque Converter Setting)
[08.2002 - 02.2005] HDJ100..ATM *10-1.25PX14-9,BLACK |
90119-10790 |
— | ||
| replacement | |||||
|
32101A
|
32101A
90119-10954 Bolt(For Drive Plate & Torque Converter Setting)[08.2002 - 02.2005] HDJ100..ATM *10-1.25PX14-9,BLACK |
90119-10954 |
US $2.51 |
||
|
32101A
|
32101A
90119-10954 Bolt(For Drive Plate & Torque Converter Setting)[03.2005 - 05.2005] HDJ100..5FC *10-1.25PX14-9,SILVER |
90119-10954 |
US $2.51 |
||
|
32101C
|
32101C
90105-12198 Bolt, Hexagon(For Drive Plate Setting)[08.2002 - 05.2005] HDJ100..ATM |
90105-12198 |
US $5.56 |
||
|
32117
|
32117
32117-60030 Spacer, Drive Plate, Rear[08.2002 - 05.2005] HDJ100..ATM |
32117-60030 |
US $20.38 |
||
|
35301
|
35301
35301-60030 Body Sub-Assy, Front Oil Pump[07.2003 - 05.2005] HDJ100..5FC |
35301-60030 |
from US $169.48 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[07.2003 - 05.2005] HDJ100..5FC |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99139 Ring, O (For Front Oil Pump Body)[07.2003 - 05.2005] HDJ100..5FC OUTER |
90301-99139 |
from US $5.38 |
||
|
35301B
|
35301B
90301-99148 Ring, O (For Front Oil Pump Body)[07.2003 - 05.2005] HDJ100..5FC INNER |
90301-99148 |
from US $2.75 |
||
|
35301F
|
35301F
90105-08451 Bolt (For Front Oil Pump Setting)[10.2006 -] HDJ100,UZJ100..5FC *8-1.25PX40-30 |
90105-08451 |
US $0.79 |
||
|
35301F
|
35301F
91511-K0840 Bolt(For Crankshaft Bearing Cap Set)[07.2003 - 05.2005] HDJ100..5FC *8-1.25PX40-30 |
91511-K0840 |
US $3.05 |
||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[07.2003 - 05.2005] HDJ100,UZJ100..5FC |
90148-60079 |
from US $0.52 |
||
|
35321
|
35321
35321-50010 Gear, Front Oil Pump Drive[09.2003 - 05.2005] HDJ100,UZJ100..5FC T=10.736-10.742 |
35321-50010 |
US $38.44 |
||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ100..5FC T=10.743-10.749 |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ100..5FC T=10.750-10.756 |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-50040 Gear, Front Oil Pump Drive[09.2003 - 05.2005] HDJ100,UZJ100..5FC T=10.757-10.763 |
35321-50040 |
from US $39.60 |
||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ100..5FC T=10.764-10.770 |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ100..5FC T=10.771-10.777 |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ100..5FC T=10.778-10.784 |
35321-50070 |
US $38.44 |
||
|
35322
|
35322
35322-50010 Gear, Front Oil Pump Driven[09.2003 - 05.2005] HDJ100,UZJ100..5FC T=10.736-10.742 |
35322-50010 |
from US $32.67 |
||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ100..5FC T=10.743-10.749 |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ100..5FC T=10.750-10.756 |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-50040 Gear, Front Oil Pump Driven[09.2003 - 05.2005] HDJ100,UZJ100..5FC T=10.757-10.763 |
35322-50040 |
US $33.63 |
||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ100..5FC T=10.764-10.770 |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ100..5FC T=10.771-10.777 |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ100..5FC T=10.778-10.784 |
35322-50070 |
US $33.63 |
||
|
35370
|
35370
35370-60030 Shaft Assy, Stator[07.2003 - 05.2005] HDJ100..5FC |
35370-60030 |
US $321.78 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[09.2007 -] HDJ100,UZJ100..5FC |
35617-50030 |
from US $4.02 |
||
|
35617
|
35617
35617-60020 Ring, Clutch Drum Oil Seal[07.2003 - 05.2005] HDJ100..5FC |
35617-60020 |
US $6.64 |
||
