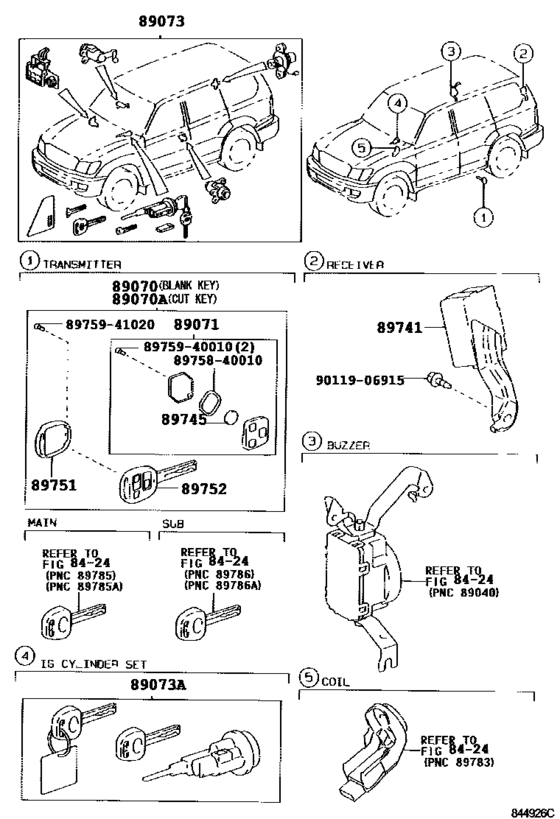

Wireless Door Lock ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89070
|
89070
89070-60780
Transmitter Assy, Door Control
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89070-60780 |
— | ||
| replacement | |||||
|
89070
|
89070
89070-60781
Transmitter Assy, Door Control
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89070-60781 |
— | ||
|
89070
|
89070
89070-60781
Transmitter Assy, Door Control
[05.2006 -] HDJ100,UZJ100 |
89070-60781 |
— | ||
|
89070A
|
89070A
89070-60860
Transmitter, Door Control (Cut Key)
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
89070-60860 |
— | ||
| replacement | |||||
|
89070A
|
89070A
89070-60861 Transmitter, Door Control (Cut Key)DOOR CONTROL (CUT KEY) [08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX |
89070-60861 |
US $404.77 |
||
|
89070A
|
89070A
89070-60861 Transmitter, Door Control (Cut Key)DOOR CONTROL (CUT KEY) [05.2006 -] HDJ100,UZJ100 |
89070-60861 |
US $404.77 |
||
|
89071
|
89071
89071-50251
Module Set, Transmitter Sub-Assy, Door Control
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89071-50251 |
— | ||
|
89073
|
89073
69005-6C460 Cylinder Set, Lock W/transmitter Housing(Less Module)LOCK W/TRANSMITTER HOUSING(LESS MODULE) [08.2002 - 05.2005] HDJ100,UZJ100..VX |
69005-6C460 |
US $959.50 |
||
| replacement | |||||
|
89073
|
89073
69005-6C461
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69005-6C461 |
— | ||
|
89073
|
89073
69005-6C461
Cylinder Set, Lock W/transmitter Housing(Less Module)
[05.2006 -] HDJ100,UZJ100 |
69005-6C461 |
— | ||
|
89073A
|
89073A
69057-60490 Ign Cylinder Set Lock W/transmitter Housing (Cut Key)[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69057-60490 |
US $278.10 |
||
| replacement | |||||
|
89073A
|
89073A
69057-60491
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
69057-60491 |
— | ||
|
89073A
|
89073A
69057-60491
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[05.2006 -] HDJ100,UZJ100 |
69057-60491 |
— | ||
|
89741
|
89741
89741-60390 Receiver, Door ControlDOOR CONTROL [08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
89741-60390 |
US $468.83 |
||
|
89745
|
89745
89745-40010 Transmitter Battery[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
89745-40010 |
from US $7.88 |
||
|
89751
|
89751
89751-13010
Cover, Transmitter Housing
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
89751-13010 |
— | ||
| replacement | |||||
|
89751
|
89751
89751-13012
COVER TRANSMITTER
[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
89751-13012 |
— | ||
|
89751
|
89751
89751-13011
Cover, Transmitter Housing
[01.2006 -] HDJ100,UZJ100 |
89751-13011 |
— | ||
|
89752
|
89752
89752-48070 Case, Transmitter HousingTRANSMITTER HOUSING [08.2002 - 05.2005] HDJ100,UZJ100..VX CUT KEY |
89752-48070 |
US $198.40 |
||
|
89752
|
89752
89752-48110 Case, Transmitter HousingTRANSMITTER HOUSING [08.2002 - 05.2005] HDJ100,UZJ100..VX BLANK KEY |
89752-48110 |
US $40.72 |
||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $2.27 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $2.15 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.08 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
